Caution
Grounding Cable
Installation
Kep Grounding
Nuts
Acme Packet 6100 Hardware Installation Guide
The Acme Packet 6100 does not support mixing AC and DC
power supplies in the same chassis. A mixed power
configuration is prohibited.
Your equipment rack location must have a local earth ground. This ground can
be either an unpainted spot on the grounded equipment rack frame, or a
grounded bus bar in the equipment room.
The ground terminals are located to the left of power supply B on the rear of
the Acme Packet 6100 chassis. The Acme Packet 6100 ships with 2 kep nuts
screwed onto the ground terminals. You use an 11/32" nut driver to remove
and install these kep nuts.
This section shows you how to install the grounding cable on your Acme
Packet 6100.
To install the grounding cable on the Acme Packet 6100:
1. Unscrew and remove the two kep nuts from the grounding posts located
on the rear of the Acme Packet 6100. Place them aside.
Grounding
Cable Terminals

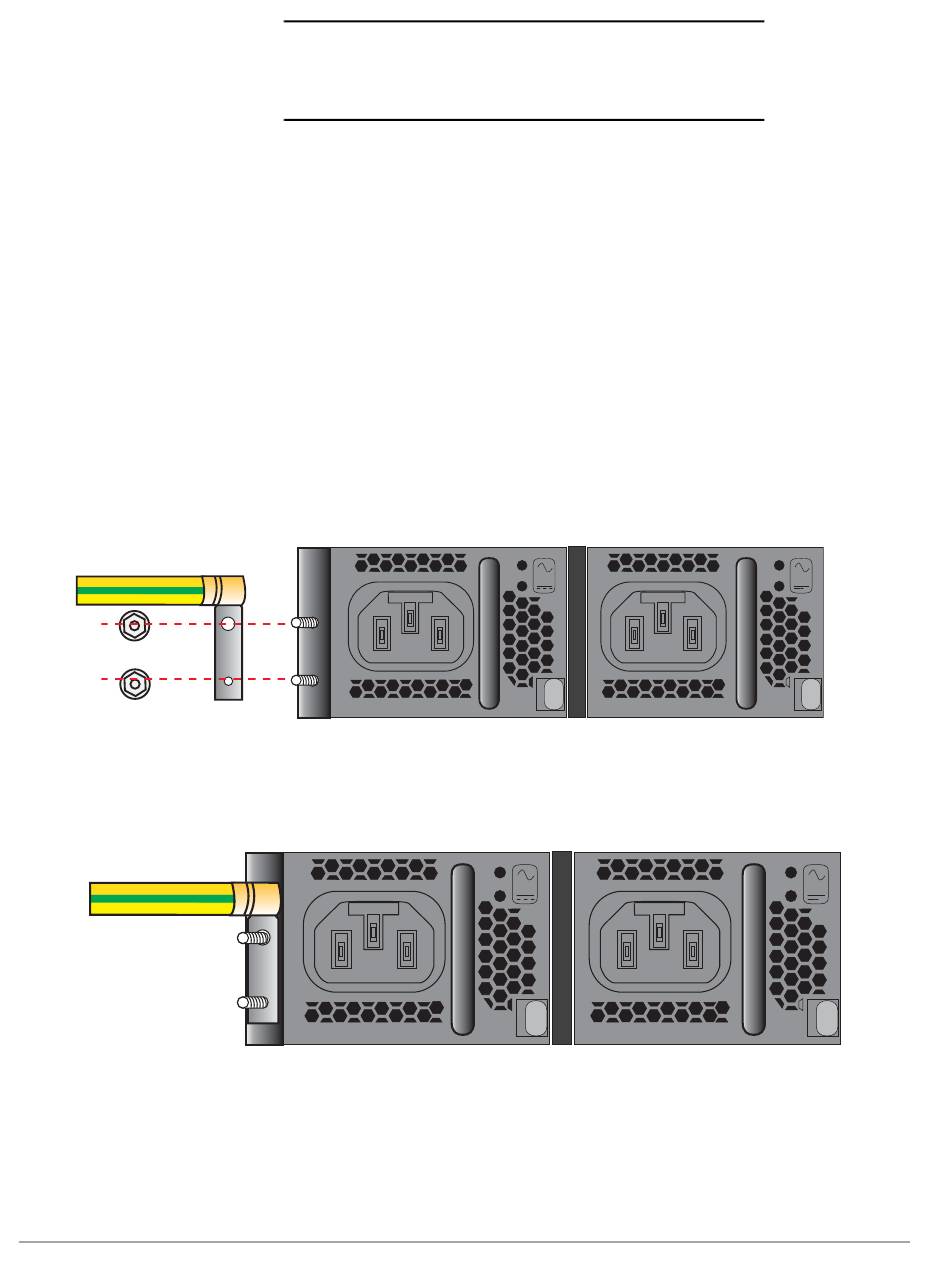

Figure 4 - 66. Acme Packet 6100 Dual AC Power Supplies and Grounding Posts
2. Place the lug on the end of the grounding cable onto the grounding posts.
Figure 4 - 67. Grounding Cable Over the Grounding Terminals
Power Supply B Power Supply A
