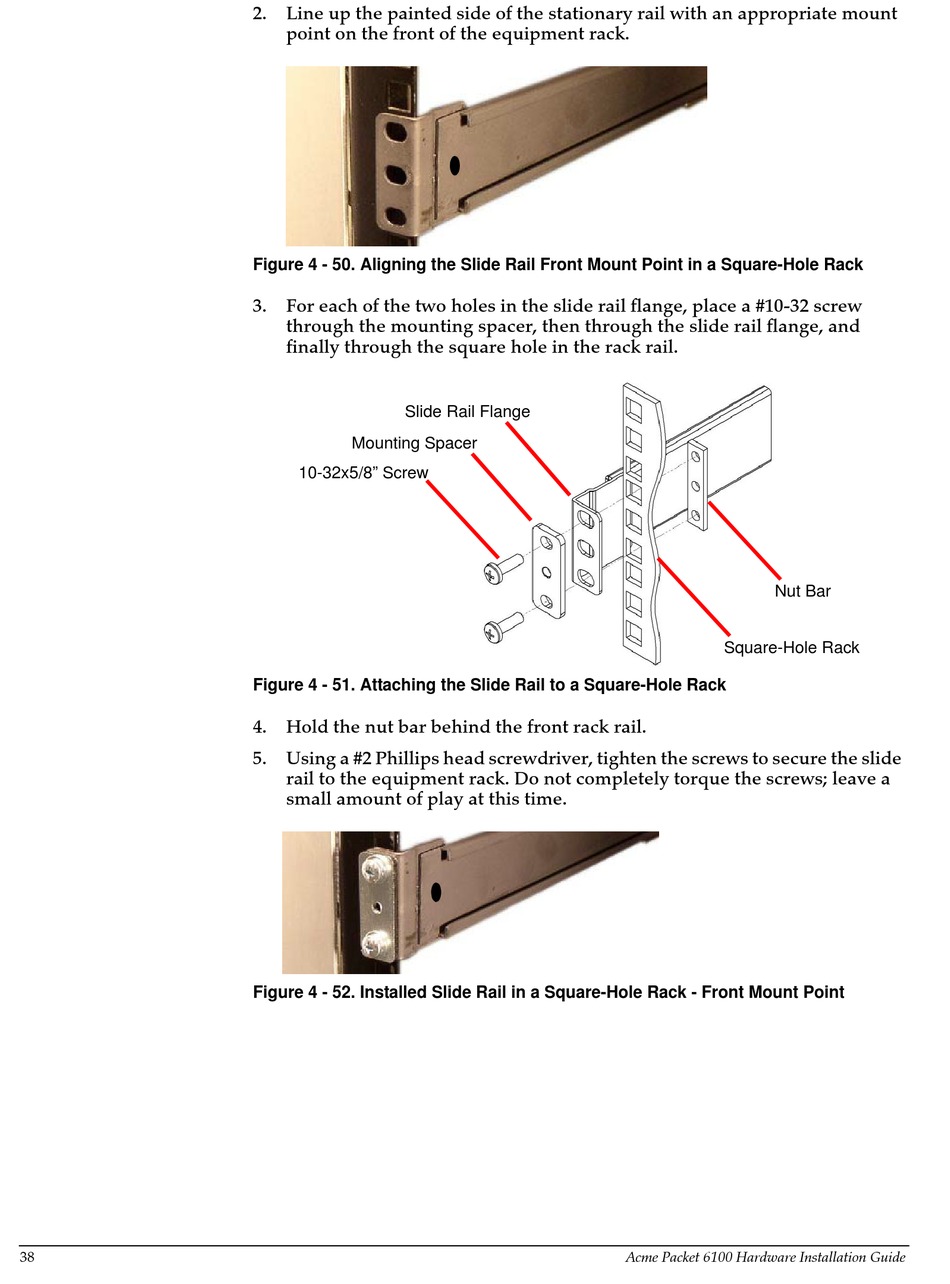

38
2.
Line up the painted side of the stationary rail with an appropriate mount
point on the front of the equipment rack.
Figure 4 - 50. Aligning the Slide Rail Front Mount Point in a Square-Hole Rack
3.
For each of the two holes in the slide rail flange, place a #10-32 screw
through the mounting spacer, then through the slide rail flange, and
finally through the square hole in the rack rail.
Slide Rail Flange
Mounting Spacer
10-32x5/8" Screw
Figure 4 - 51. Attaching the Slide Rail to a Square-Hole Rack
4.
Hold the nut bar behind the front rack rail.
5.
Using a #2 Phillips head screwdriver, tighten the screws to secure the slide
rail to the equipment rack. Do not completely torque the screws; leave a
small amount of play at this time.
Figure 4 - 52. Installed Slide Rail in a Square-Hole Rack - Front Mount Point
Nut Bar
Square-Hole Rack
Acme Packet 6100 Hardware Installation Guide
