For both holes in the flange, place one #10-32 x 5/8" screw through the
mounting spacer, then through the slide rail flange and into the tapped
hole.
Slide Rail Flange
Mounting Spacer
#10-32 x 5/8" Screw

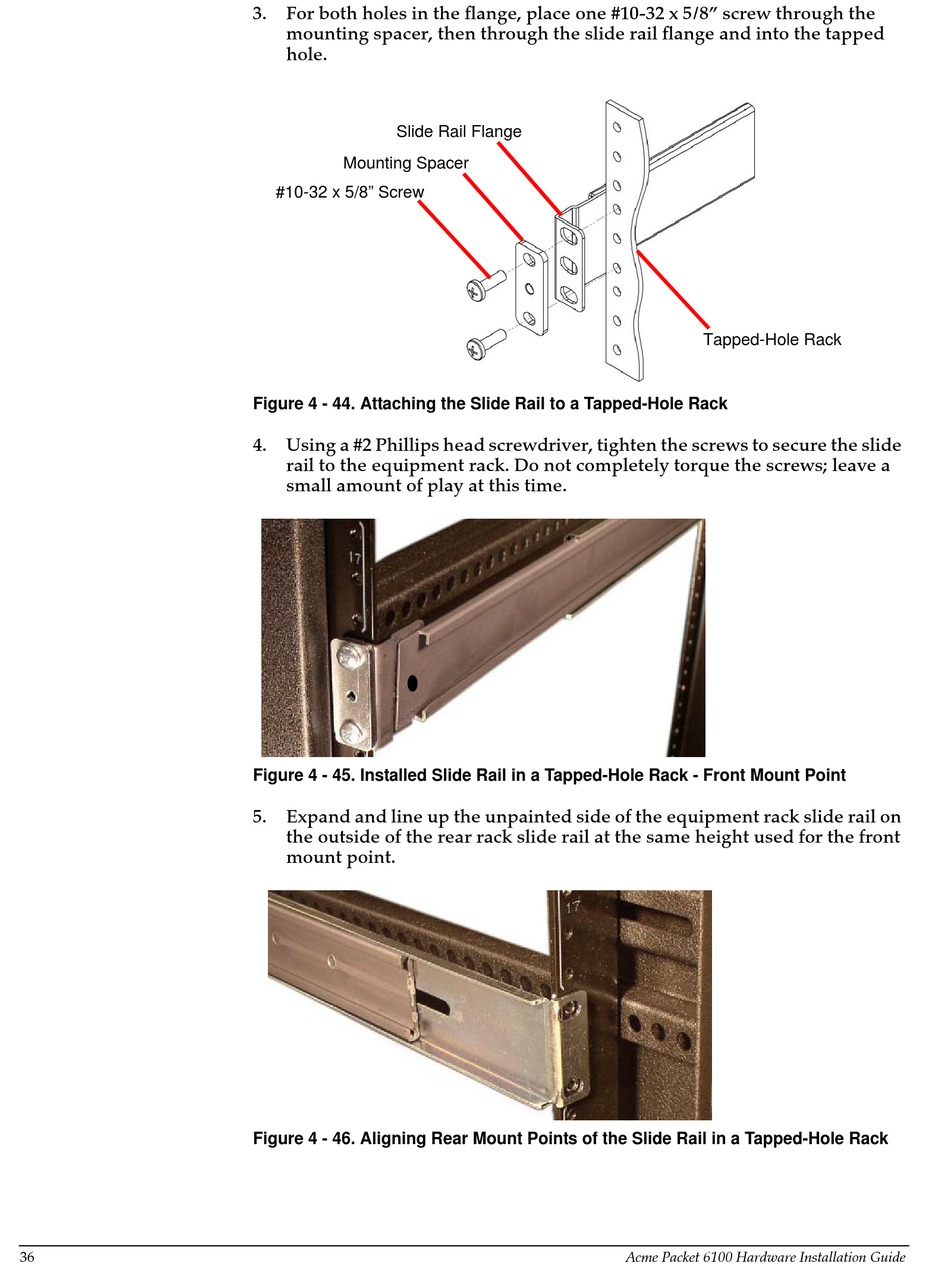

Figure 4 - 44. Attaching the Slide Rail to a Tapped-Hole Rack
4.
Using a #2 Phillips head screwdriver, tighten the screws to secure the slide
rail to the equipment rack. Do not completely torque the screws; leave a
small amount of play at this time.
Figure 4 - 45. Installed Slide Rail in a Tapped-Hole Rack - Front Mount Point
5.
Expand and line up the unpainted side of the equipment rack slide rail on
the outside of the rear rack slide rail at the same height used for the front
mount point.
Figure 4 - 46. Aligning Rear Mount Points of the Slide Rail in a Tapped-Hole Rack
Tapped-Hole Rack
