Locking Clip Latch
6
prevent the chassis from being overextended and requiring the user to unlock
the clip to intentionally remove the chassis.
Locking Clip

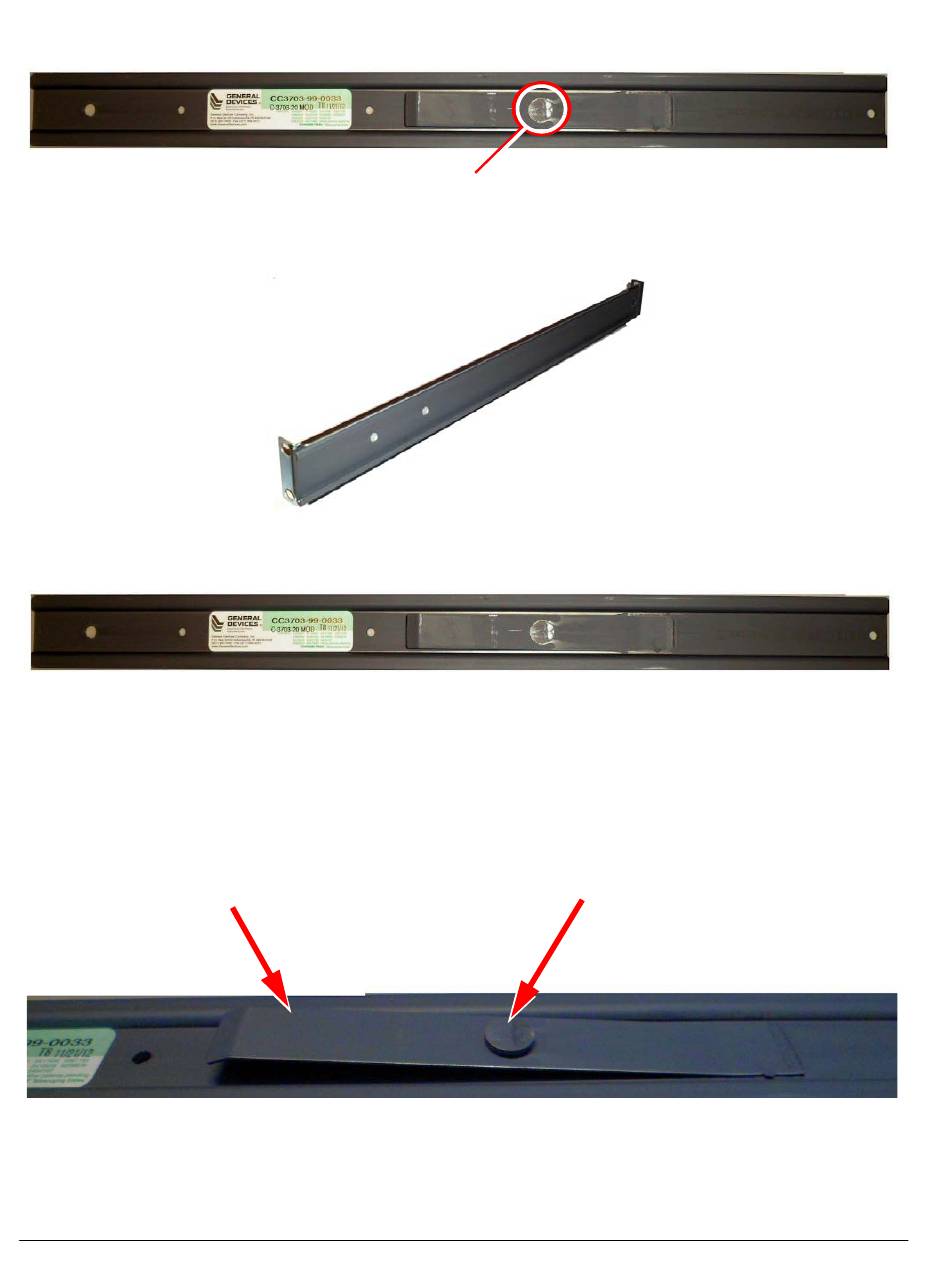

Figure 2 - 5. Slide Rail Locking Clip and Vertical Orientation
The slide rails that are bolted to either side of the chassis or equipment
•
rack are reversible and can be used on either side of the Acme Packet 6100.
Figure 2 - 6. Rack-Mounted Slide Rail (rear mounting point at left)
Figure 2 - 7. Chassis-Mounted Slide Rail
Once the slide rails are installed on the chassis and on the equipment rack,
•
the chassis can be installed in the rack by inserting the chassis slide rails
into the tracks of the slide rails already mounted on the equipment rack.
When the locking clip pin on the chassis slide rail meets the hole in the
rack slide rail, the rails lock together. Push the locking clip pin in to
continue to slide the chassis into the rack rails.
Figure 2 - 8. Locking Clip Latch and Locking Clip Pin
Locking Clip Pin
