DC Power
DC Power Cords
Grounding Terminals
18
with an IEC-60320 C13 connector, connects to the IEC- 60320 C14 receptacle on
the power supply.
The Acme Packet 6100 can be powered by central office –48 VDC operations
with a 
DC-DC supply. The handle on the front panel of the power supply is used to
insert and remove the power supply from the chassis. The locking handle is
used to lock/unlock the power supply from the chassis. A terminal block on the
DC power supply serves as the DC power interconnect.

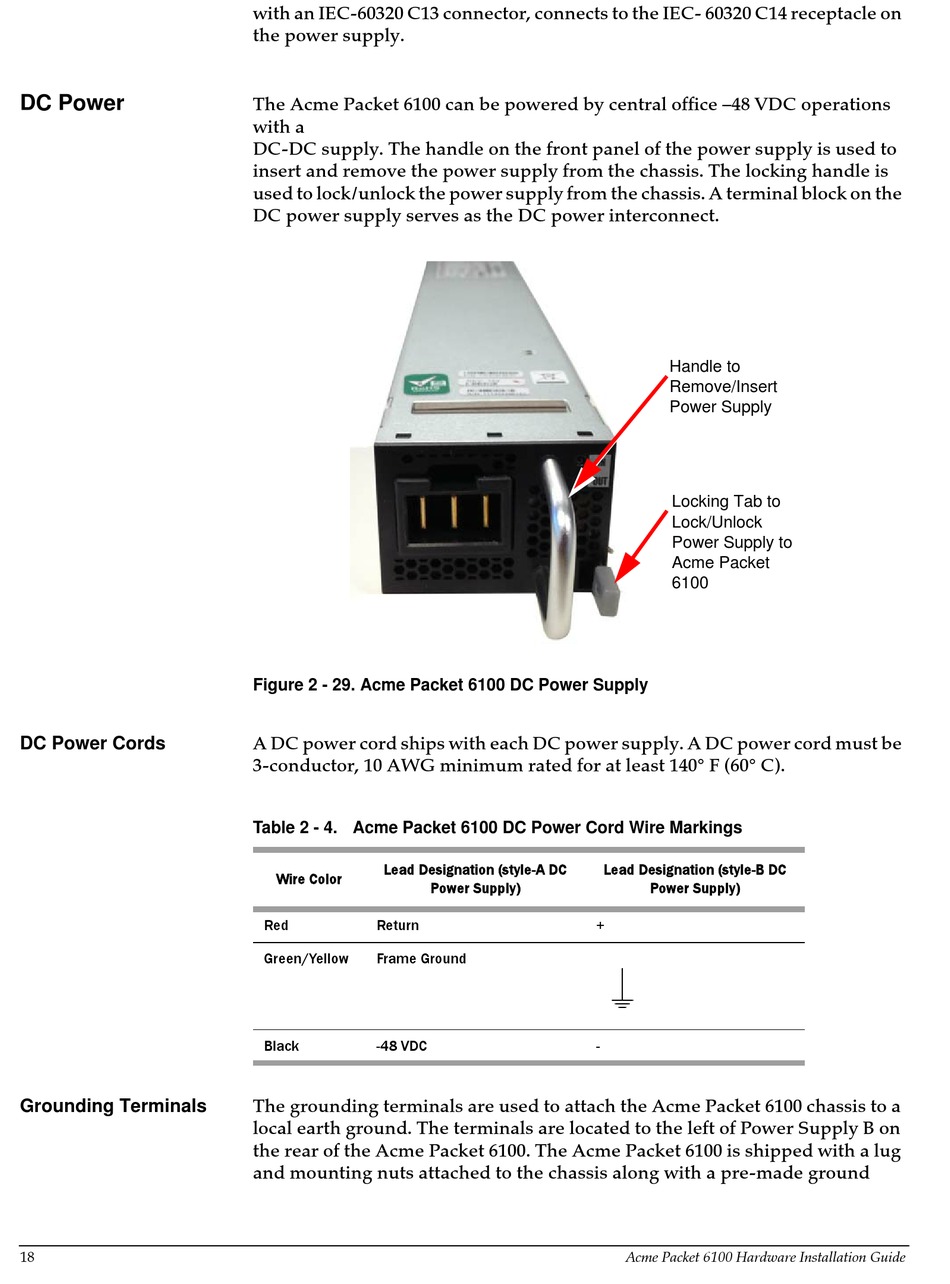

Figure 2 - 29. Acme Packet 6100 DC Power Supply
A DC power cord ships with each DC power supply. A DC power cord must be
3-conductor, 10 AWG minimum rated for at least 140° F (60° C).
Table 2 - 4. Acme Packet 6100 DC Power Cord Wire Markings
Lead Designation (style-A DC
Wire Color
Power Supply)
Red Return
Green/Yellow Frame Ground
Black -48 VDC
The grounding terminals are used to attach the Acme Packet 6100 chassis to a
local earth ground. The terminals are located to the left of Power Supply B on
the rear of the Acme Packet 6100. The Acme Packet 6100 is shipped with a lug
and mounting nuts attached to the chassis along with a pre-made ground
Handle to 
Remove/Insert
Power Supply
Locking Tab to
Lock/Unlock
Power Supply to
Acme Packet
6100
Lead Designation (style-B DC
Power Supply)
+
-
