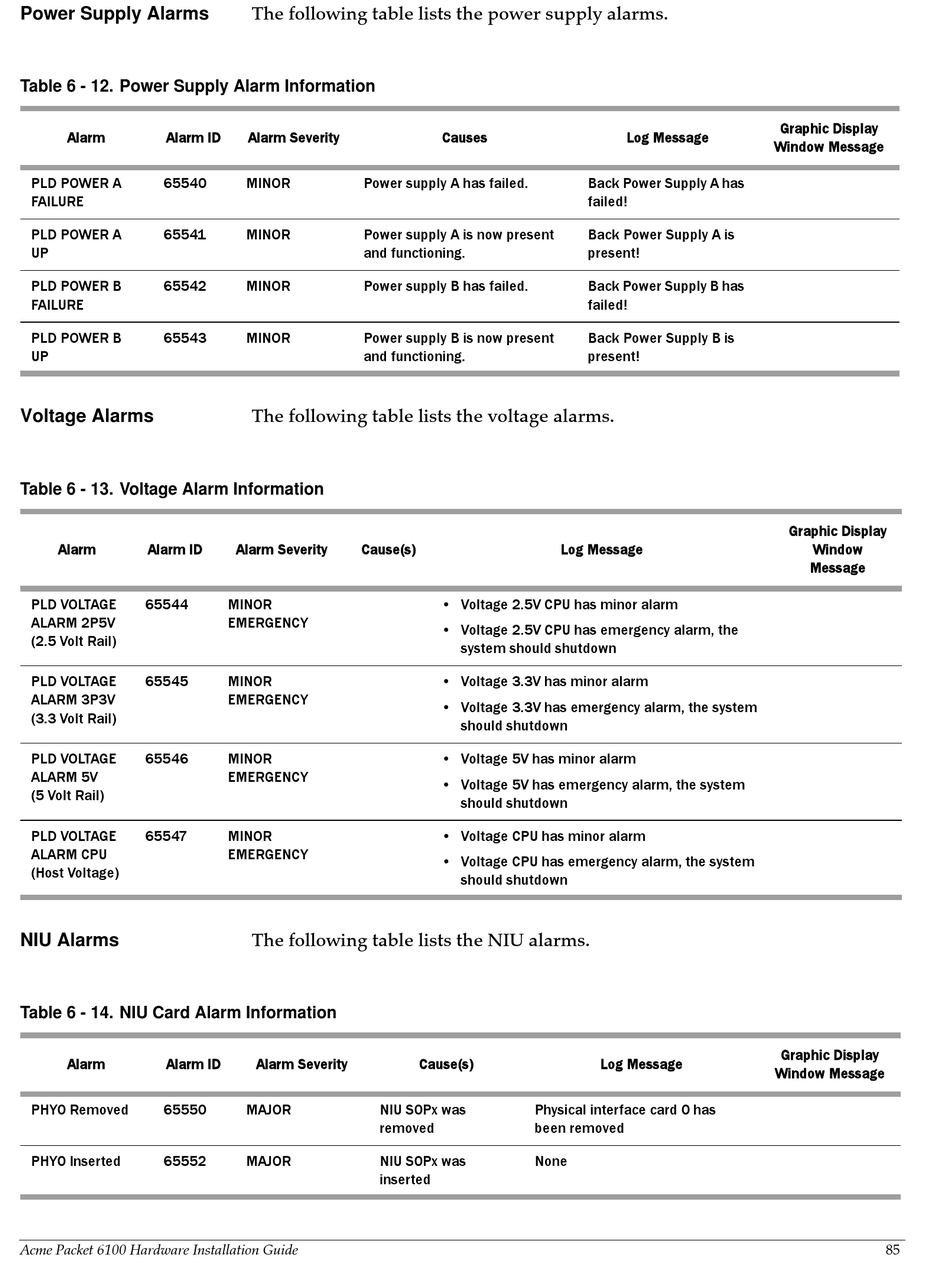

Oracle Acme Packet 6100 Hardware Installation Manual page 93

Power Supply Alarms
Table 6 - 12. Power Supply Alarm Information
Alarm Alarm ID
PLD POWER A 65540
FAILURE
PLD POWER A 65541
UP
PLD POWER B 65542
FAILURE
PLD POWER B 65543
UP
Voltage Alarms
Table 6 - 13. Voltage Alarm Information
Alarm Alarm ID
PLD VOLTAGE 65544
ALARM 2P5V
(2.5 Volt Rail)
PLD VOLTAGE 65545
ALARM 3P3V
(3.3 Volt Rail)
PLD VOLTAGE 65546
ALARM 5V
(5 Volt Rail)
PLD VOLTAGE 65547
ALARM CPU
(Host Voltage)
NIU Alarms
Table 6 - 14. NIU Card Alarm Information
Alarm Alarm ID
PHY0 Removed 65550
PHY0 Inserted 65552
