System Power
Switch - STBY/ON
Caution
System
Power
On Stby
Console Alarm
Stby Dis
USB Port
Acme Packet 6100 Hardware Installation Guide
The System Power switch enables you to control the power to the Acme Packet
6100. This is useful when it is desirable to shut off power to the Acme Packet
6100 without having to unplug the power cord. The Acme Packet 6100 has no
other power switches. The System Power switch, located on the front panel of
the NIU, has the following switch settings:
STBY — when selected, the Acme Packet 6100 powers down. While the
•
system is in standby mode, the power supply remains active, and the fans
inside of the power supply run as necessary. The fans in the front of the
chassis do not run. This convenient feature enables the system to be shut
down without having to withdraw the power supply or disconnect the
power supply cord.
ON — applies power to the Acme Packet 6100. This switch position is used
•
during normal operation.
The System Power switch should remain in the ON position at
all times. Do not touch a System Power switch unless
specifically instructed to do so by your customer support
representative.
USB Mgmt 0 Mgmt 1 Mgmt 2

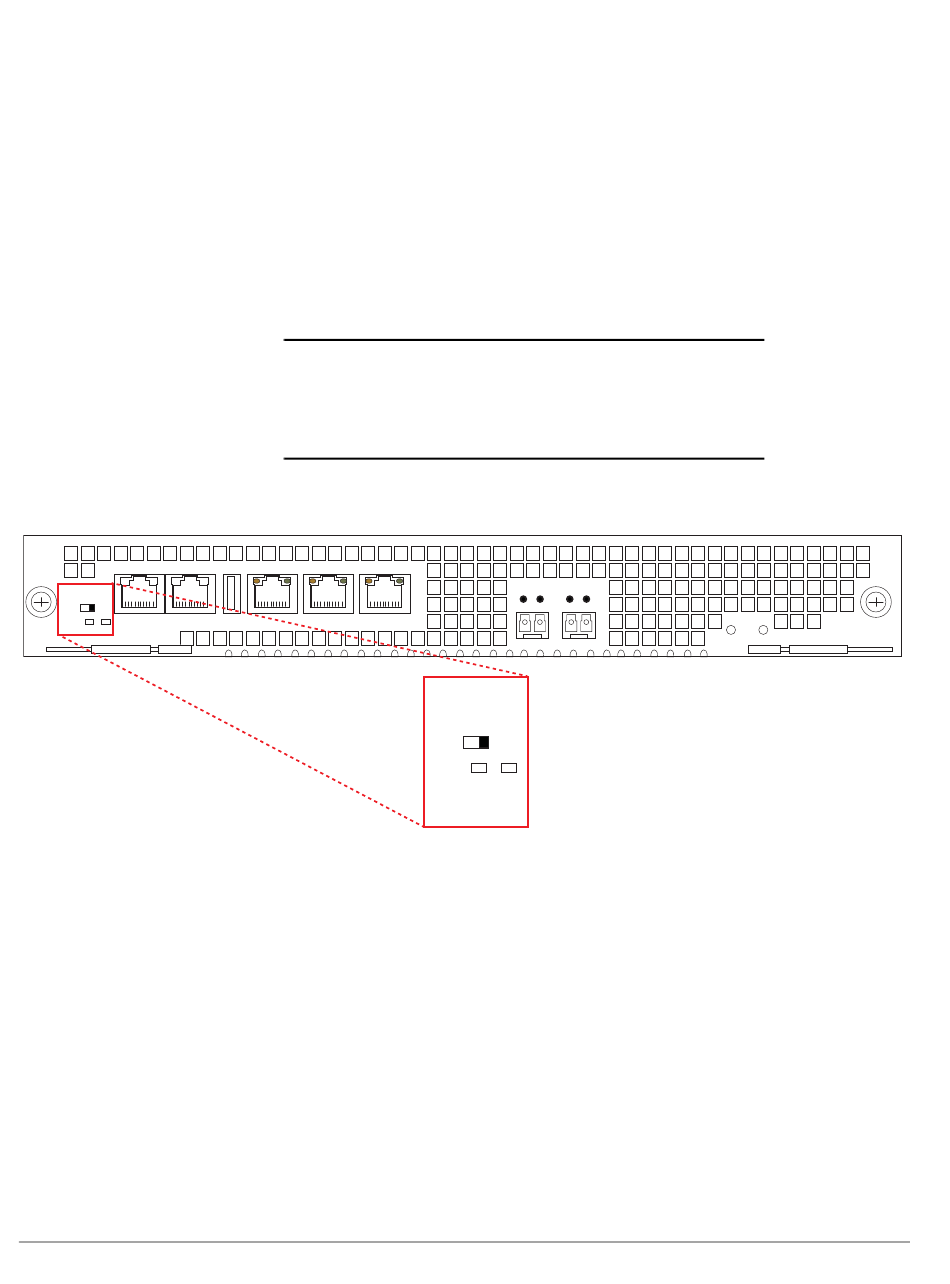

Figure 2 - 18. System Power Settings on the NIU Front Panel
The USB port, located on the Acme Packet 6100 front panel, is reserved for
software-enabled applications.
LINK ACT LINK ACT
System
Power
On Stby
Dis
Stby
PWR H/S
11
