Fan Module Installation

Ground and Power Cable Installation

Caution
44
should hold the Acme Packet 6100 in the correct position while the other
person screws the Acme Packet 6100 in place.

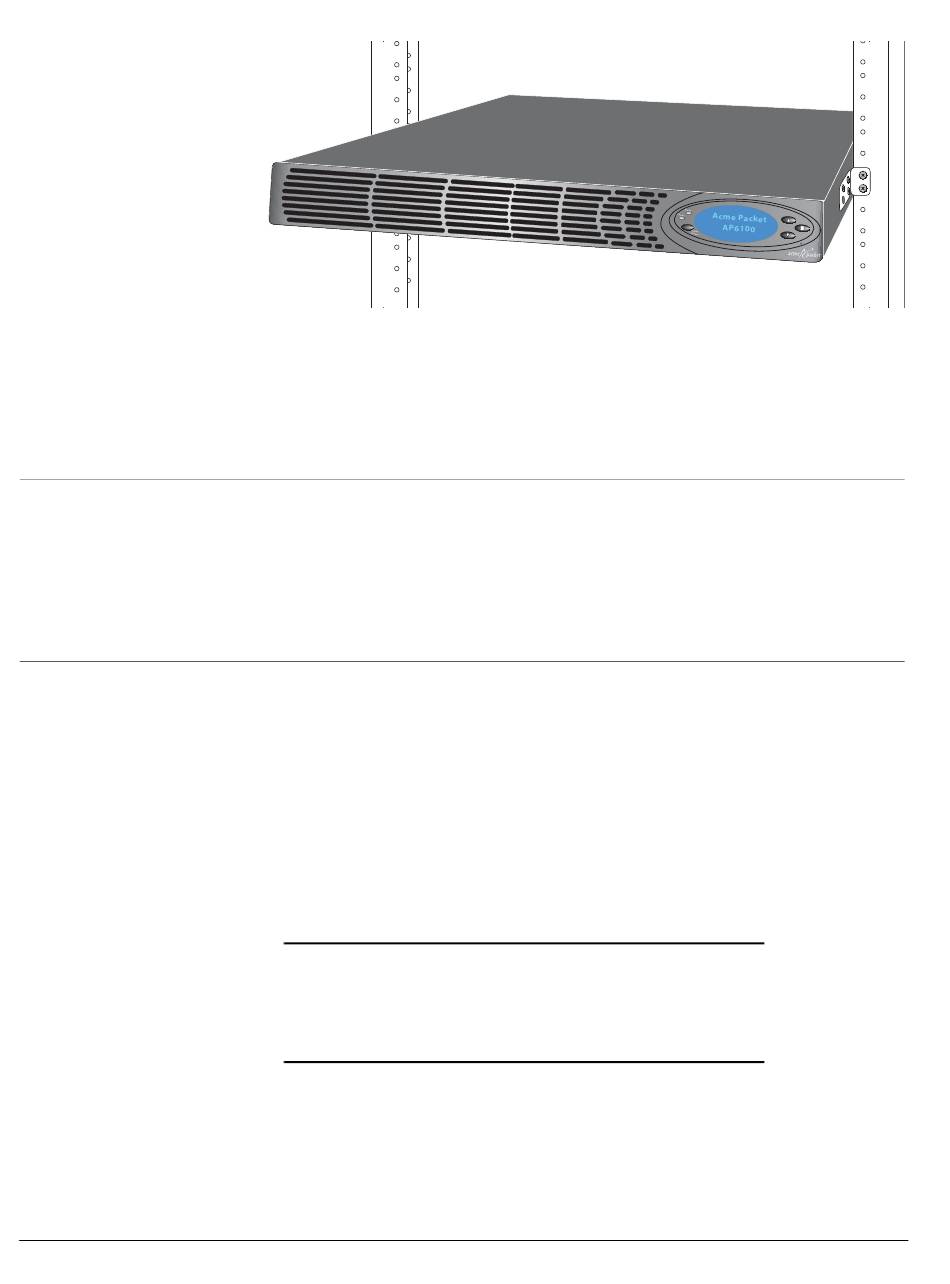

Figure 4 - 65. Attaching the Acme Packet 6100 to a 2-Post Equipment Rack
4. Ensure that the Acme Packet 6100 chassis remains supported until you
have completely installed it into the equipment rack.
The fan module is preinstalled in the Acme Packet 6100 chassis when it ships.
There is no need to remove the fan module prior to installation. In the event
that this part needs service or replacement, you can remove and replace it with
a functioning one.
The Acme Packet 6100 must be properly grounded to ensure efficient system
performance. Grounding your Acme Packet chassis is an extremely important
part of the installation and maintenance procedures. Physical harm or
problems with system functionality may occur on the Acme Packet 6100 if it is
not properly grounded. If your Acme Packet 6100 chassis is not properly
grounded, the system can exhibit unpredictable problems such as:
Garbled output on the console display
•
Sudden crashes
•
Physical damage to the Acme Packet chassis and its hardware components
•
Failure to ground the chassis properly can result in
permanent damage to the Acme Packet 6100 and its
components. Bodily harm may also result under some
circumstances.
