48

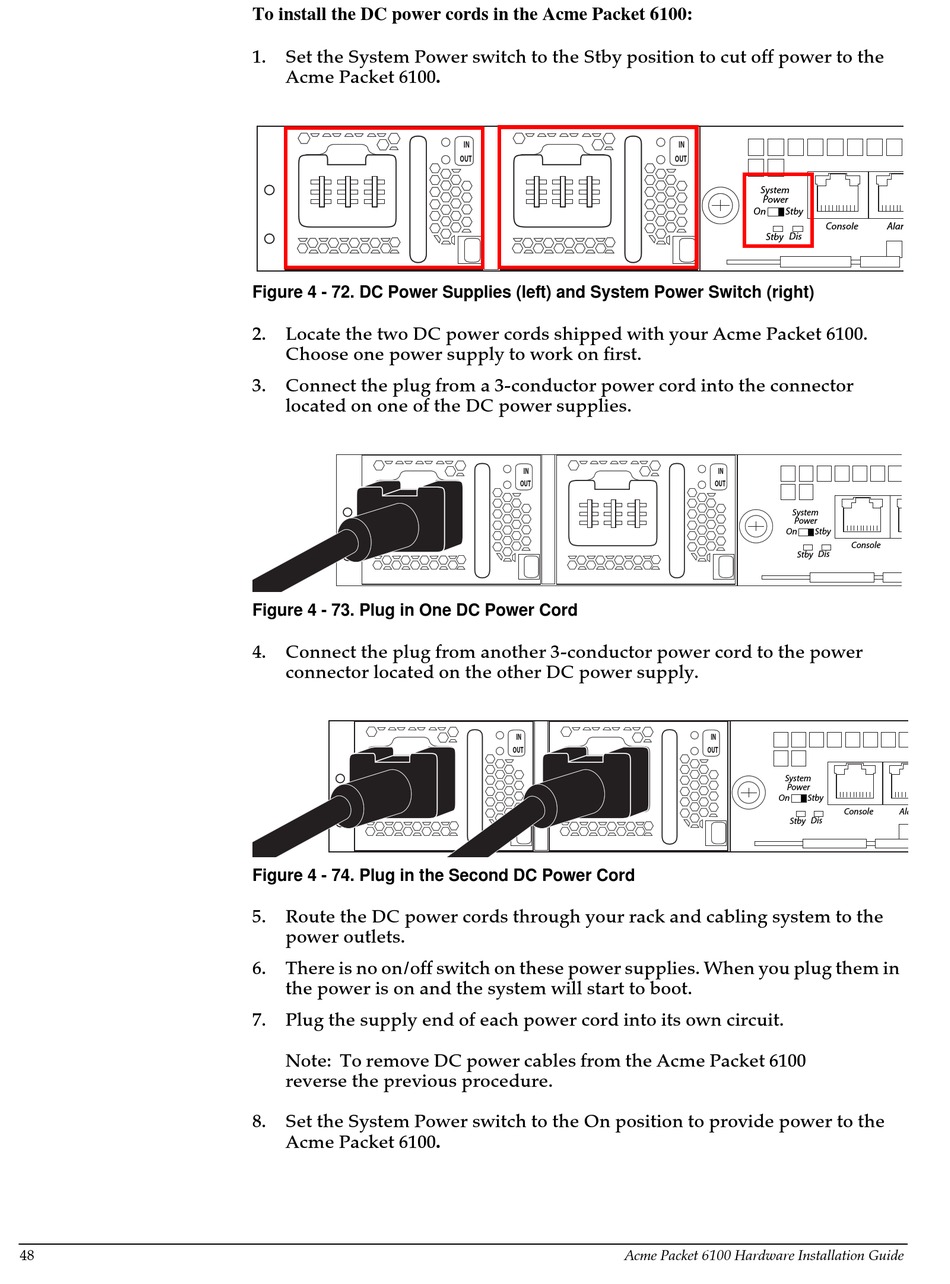

To install the DC power cords in the Acme Packet 6100:
1. Set the System Power switch to the Stby position to cut off power to the
Acme Packet 6100. 
Figure 4 - 72. DC Power Supplies (left) and System Power Switch (right)
2. Locate the two DC power cords shipped with your Acme Packet 6100.
Choose one power supply to work on first.
3. Connect the plug from a 3-conductor power cord into the connector
located on one of the DC power supplies.
Figure 4 - 73. Plug in One DC Power Cord
4. Connect the plug from another 3-conductor power cord to the power
connector located on the other DC power supply.
Figure 4 - 74. Plug in the Second DC Power Cord
5. Route the DC power cords through your rack and cabling system to the
power outlets.
6. There is no on/off switch on these power supplies. When you plug them in
the power is on and the system will start to boot.
7. Plug the supply end of each power cord into its own circuit.
Note: To remove DC power cables from the Acme Packet 6100
reverse the previous procedure.
8. Set the System Power switch to the On position to provide power to the
Acme Packet 6100.
