- Page 1 Oracle® MICROS Kitchen Display Controller 210 Setup Guide F23693-02 April 2020...
- Page 2 Oracle Corporation and its affiliates disclaim any liability for any damages caused by use of this software or hardware in dangerous applications.
-
Page 3: Table Of Contents
Contents Preface Audience Admonitions Customer Support Documentation Revision History The Oracle MICROS Kitchen Display Controller 210 (KDC-210) Oracle MICROS KDC-210 Basic Features KDC-210 – Initial Setup Preinstallation Considerations Connecting Bump Bars Supported Monitors Supported Power Adapter KDC-210 Initial Startup – Microsoft Windows 10 KDC-210 Initial Startup –... - Page 4 KDC-210 Dimensions Troubleshooting Basic Troubleshooting System Recovery Performing a System Recovery with Microsoft Windows 10 Performing a System Recovery for Oracle Linux for MICROS Safety and Handling Safety Agency Compliance Statements Safety Precautions Modifications to Equipment Placement of an Oracle Product...
-
Page 5: Preface
Preface Audience This document is intended for those who will be setting up, installing, and operating the Oracle MICROS Kitchen Display Controller 210. It is not specific to a particular software application. Admonitions The following symbols may appear in this document: Caution: There is a risk of personal injury and equipment damage. -
Page 6: Customer Support
Chapter 1 Customer Support On: The On/Standby switch is in the standby position. Customer Support To contact Oracle Customer Support, access My Oracle Support at the following URL: https://support.oracle.com. When contacting Customer Support, please provide the following: • Product version and program/module name •... -
Page 7: The Oracle Micros Kitchen Display Controller 210 (Kdc-210)

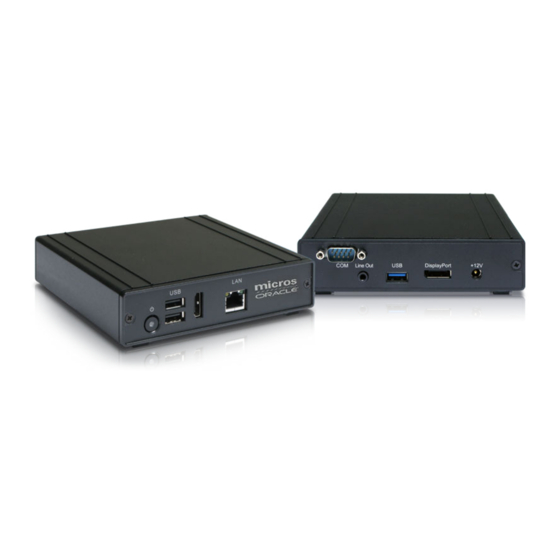

KDC-210, an LCD touch monitor or non-touch LCD monitor, and MICROS 10 or 20 Key Wired or Wireless Bump Bars. Features Overview • Available operating systems: Oracle Linux for MICROS, Microsoft Windows 10 IoT Enterprise • 10/100/1000MB BaseT LAN •... - Page 8 Chapter 2 Oracle MICROS KDC-210 Basic Features Table 2-1 Oracle MICROS KDC-210 Basic Features Feature A. Power button B. USB 2.0 ports C. HDMI port D. Ethernet port E. COM port F. Audio line out G. High speed USB port H.
-
Page 9: Kdc-210 - Initial Setup
RF devices to impact the operation of the wireless bump bar. In cases where the site is too noisy in terms of RF interference, Oracle MICROS recommends the use of the MBB-10 and MBB-20 wired bump bars. -
Page 10: Connecting Bump Bars
Chapter 3 Connecting Bump Bars Connecting Bump Bars Oracle MICROS offers both wired and wireless bump bars as part of the Kitchen Display System. • The MICROS Wired Bump Bar is available in 10 and 20 button configurations (MBB-10 and 20 MBB-20). -
Page 11: Kdc-210 Initial Startup - Microsoft Windows 10
Oracle Hospitality Simphony Client Deployment Guide on the Oracle Help Center at https://docs.oracle.com/en/industries/food-beverage/. KDC-210 Initial Startup – Oracle Linux for MICROS The first time you turn on the KDC-210 you must complete the Oracle Linux for MICROS operating system setup. Follow the on-screen prompts to configure your system: Choose a deployment location that provides network connectivity and access to any required peripherals. -
Page 12: Accessibility Features
Accessibility Features The following table describes the accessibility features for the KDC-210 with the Microsoft Windows 10 IoT Enterprise operating system. Table 4-1 Accessibility Features for the KDC-210 with the Microsoft Windows 10 IoT Enterprise Operating System Feature Behavior Setup Magnifier In Full-Screen Mode, your Select Control Panel >... - Page 13 Chapter 4 Table 4-1 (Cont.) Accessibility Features for the KDC-210 with the Microsoft Windows 10 IoT Enterprise Operating System Feature Behavior Setup On-Screen Keyboard The Use click sound option Select Control Panel > Ease lets you hear a sound when of Access Center >...
- Page 14 Chapter 4 Table 4-1 (Cont.) Accessibility Features for the KDC-210 with the Microsoft Windows 10 IoT Enterprise Operating System Feature Behavior Setup Speech Recognition Windows Speech Recognition Select Control Panel > lets you control your PC with Speech Recognition. your voice alone, without needing a keyboard or mouse.
-
Page 15: Kdc-210 Bios Options
KDC-210 BIOS Options This section describes how to access the KDC-210 BIOS menu and provides an overview of important configuration options. Accessing BIOS To access the KDC-210 BIOS: Connect a USB keyboard to the KDC-210. Turn on or restart the KDC-210, and then press Esc repeatedly until the BIOS screen appears. -
Page 16: Software Components
Software Components This section describes the software components available for th KDC-210. The KDC-210 is available with Microsoft Windows 10 IoT Enterprise or the Oracle Linux for MICROS operating system. Microsoft Windows 10 IoT Enterprise Operating System The KDC-210 is available with the Microsoft Windows 10 IoT Enterprise operating system pre-installed. -
Page 17: Oracle Linux For Micros Commands
Turn off the device • shutdown now • Note for workstations with Oracle Linux for MICROS: You can press and release the workstation power button to perform a graceful shutdown. Shutdown can take up to 10 seconds to complete. -
Page 18: Equipment Dimensions
Equipment Dimensions This section contains the KDC-210 dimensions. KDC-210 Dimensions... -
Page 19: Troubleshooting
AC power cable is connected to a surge-protected outlet, UPS, power conditioner, or wall outlet. The KDC-210 does not The system board may be Contact your Oracle MICROS start. defective. representative. The connected monitor The monitor cable may be... -
Page 20: Performing A System Recovery For Oracle Linux For Micros
Windows 10 desktop initializes. Performing a System Recovery for Oracle Linux for MICROS To perform a system recovery for KDC-210 units with the Oracle Linux for MICROS operating system: Power on KDC 210 and press the ESC button repeatedly to enter BIOS. -
Page 21: Safety And Handling
For DC Power, connect the product only to earthed power systems that are completely contained within one building. Modifications to Equipment Do not make mechanical or electrical modifications to the equipment. Oracle is not responsible for regulatory compliance of a modified Oracle product. -
Page 22: Placement Of An Oracle Product
Caution: Oracle products are designed to work with power systems having a grounded neutral (grounded return for DC-powered products). To reduce the risk of electric shock, do not plug Oracle products into any other type of power system. Contact your facilities manager or a qualified electrician if you are not sure what type of power is supplied to your building. -
Page 23: Battery Warning
If you need to replace the lithium coin cell battery, use a Maxell CR2032 or equivalent battery type. System Unit Cover Caution: Do not operate Oracle products without the cover in place or the casework fully assembled. Failure to take this precaution may result in personal injury and system damage. -
Page 24: Cleaning
Chapter 9 Care and Handling Cleaning Cabinet Use a chamois or a clean, lint-free cloth to clean the cabinet and screen surface. Do not use chemical, alcohol, or petroleum-based cleaners that are not recommended for plastics.
