Chassis Removal

Caution
Removing the
Acme Packet 6100
from an Equipment
Rack
Caution
Acme Packet 6100 Hardware Installation Guide
When this Acme Packet 6100 returns online, it will synchronize its HA state
with the active HA node using the new NIU. You can confirm the system state
by using the show health command.
This section explains how to remove the Acme Packet 6100 from an equipment
rack. To prevent injury, Acme Packet recommends that any time a Acme
Packet 6100 is installed or removed from an equipment rack, two people
complete the procedure.
Always disconnect the Acme Packet 6100 power supplies
from the power source when removing a chassis from an
equipment rack.
You must first review the safety precautions for the Acme Packet 6100 prior to
proceeding.
To remove the Acme Packet 6100 from an equipment rack:
1. Remove the two AC/DC power cords from the power supplies in the rear
of the system. (There are no on/off switches on these power supplies).
2. Remove all power cables from the Acme Packet 6100.
3. Remove and label all attached network cables, alarm cable, and console
cables from their respective ports on the chassis.
4. Unscrew the thumb screws that secure the Acme Packet 6100 to the
equipment rack slide rails. This may require using a #2 Phillips
screwdriver.

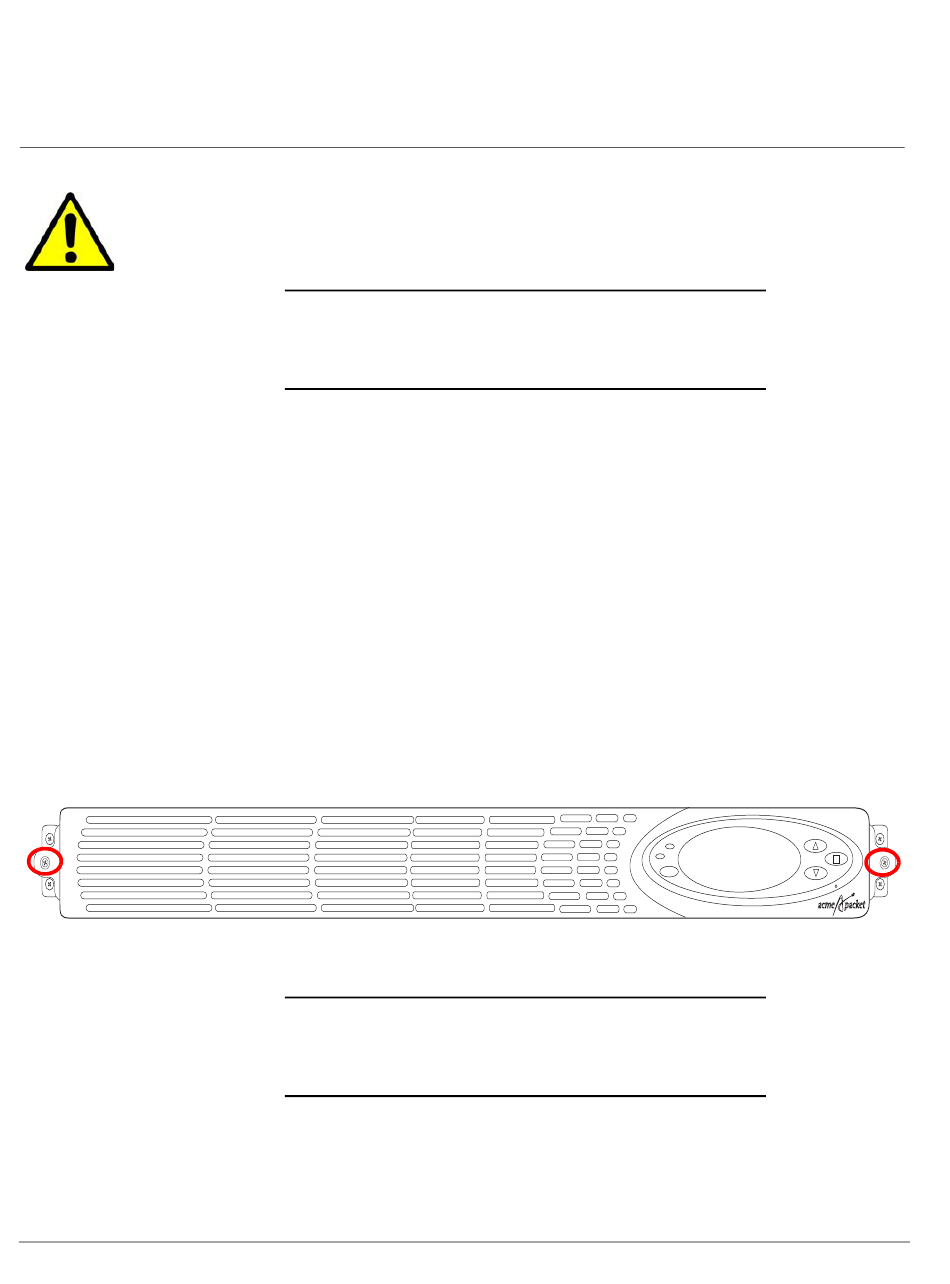

Figure 6 - 87. Loosening Thumbscrews
Beginning in this step, one person should support the Acme
Packet 6100 from below while the other person removes the
system chassis from the equipment rack.
5. Pull the Acme Packet 6100 forward and out of the equipment rack.
