Install an Optical
Transceiver
82
To install an optical transceiver:
1.
Slide the replacement optical transceiver into the SFP socket on the NIU.

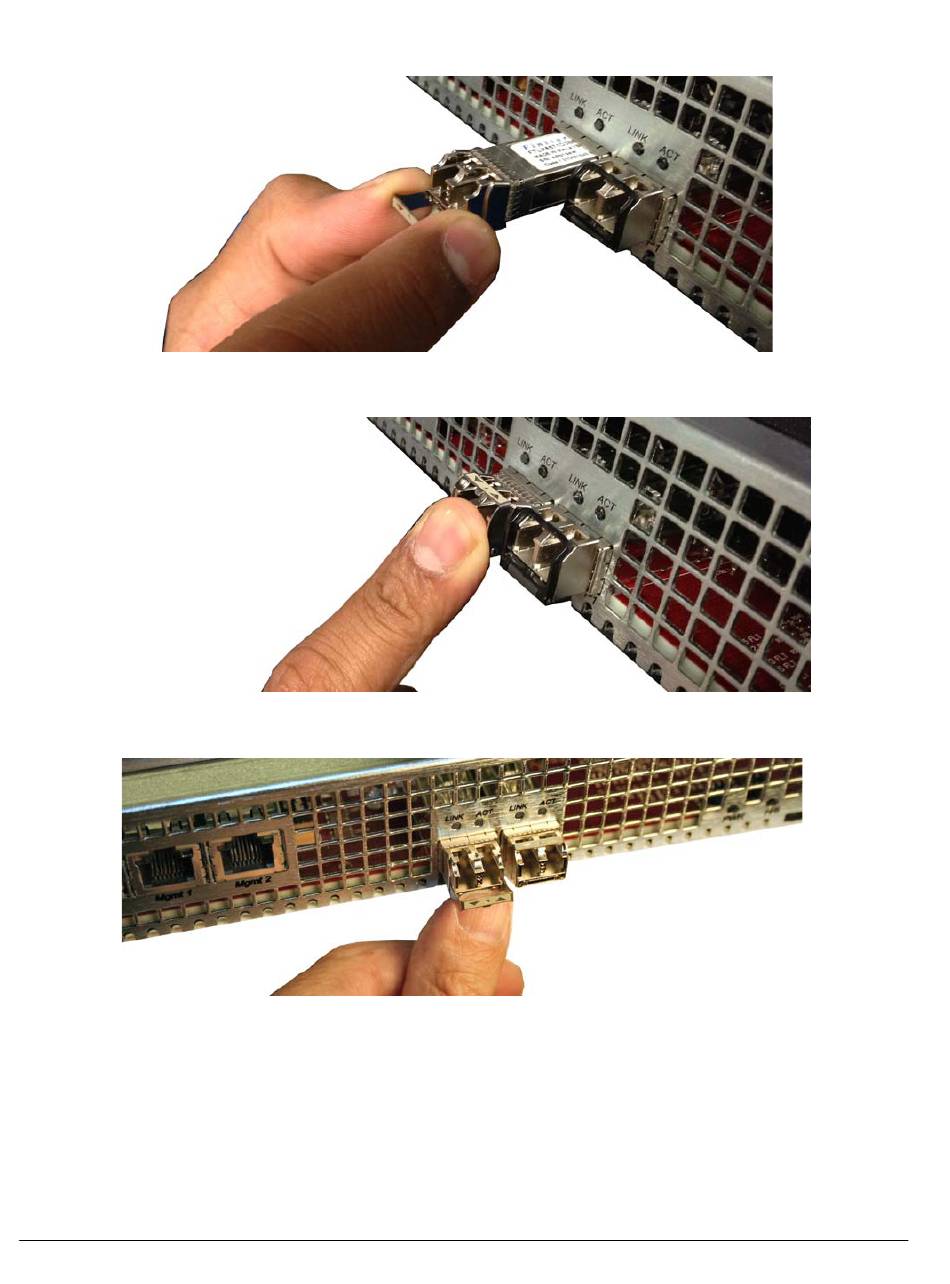

Figure 6 - 123. Inserting the SFP+ Optical Transceiver into the SFP+ Socket
2.
Press on the face of the SFP+ optical transceiver to seat it with the socket.
Figure 6 - 124. Seating the SFP+ Optical Transceiver
3.
Flip the bale clasp latch back into the rest position.
Figure 6 - 125. Closing the Clasp Latch
Acme Packet 6100 Hardware Installation Guide
