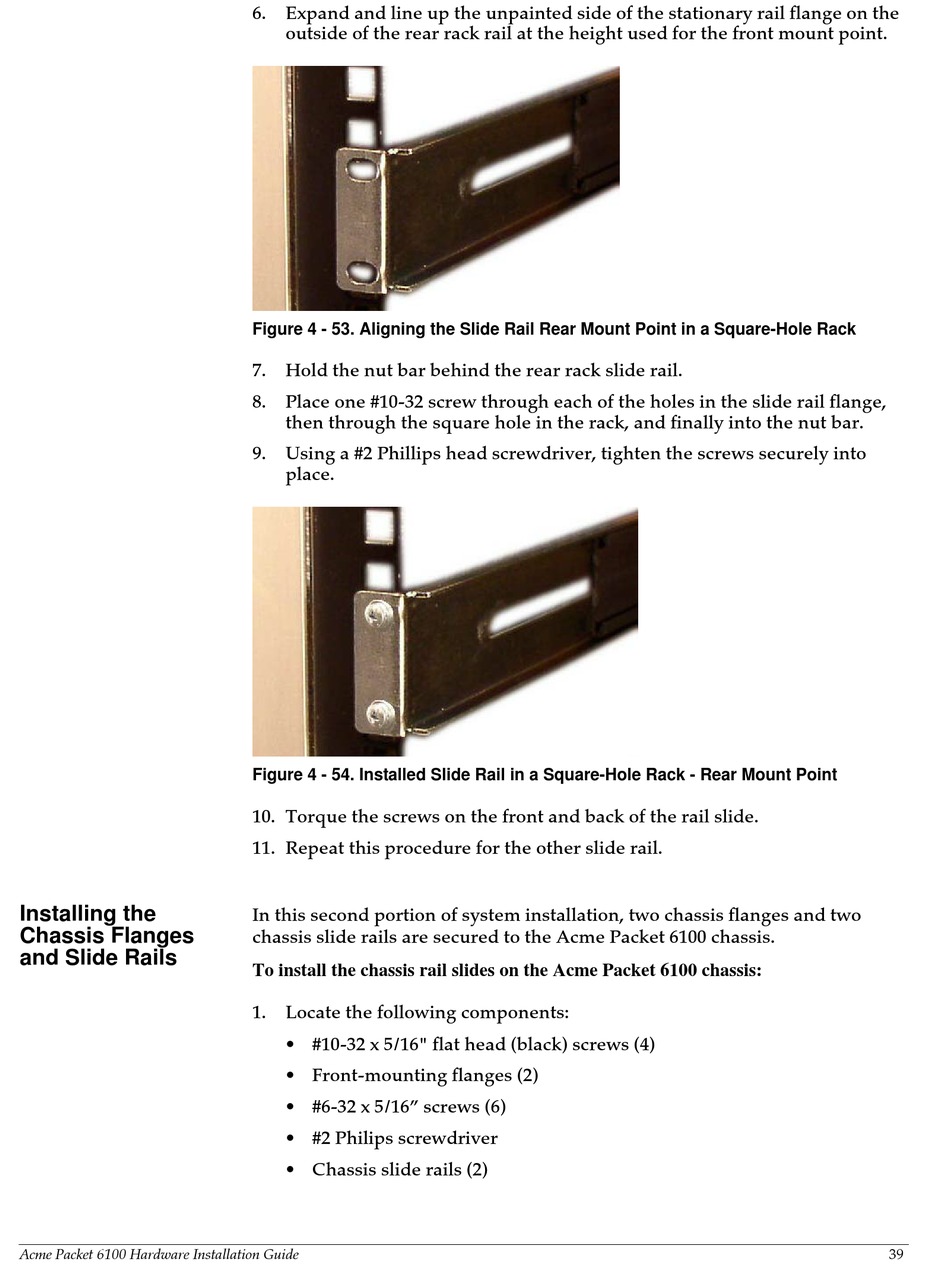

Installing the
Chassis Flanges
and Slide Rails
Acme Packet 6100 Hardware Installation Guide
6. Expand and line up the unpainted side of the stationary rail flange on the
outside of the rear rack rail at the height used for the front mount point. 
Figure 4 - 53. Aligning the Slide Rail Rear Mount Point in a Square-Hole Rack
7. Hold the nut bar behind the rear rack slide rail.
8. Place one #10-32 screw through each of the holes in the slide rail flange,
then through the square hole in the rack, and finally into the nut bar.
9. Using a #2 Phillips head screwdriver, tighten the screws securely into
place. 
Figure 4 - 54. Installed Slide Rail in a Square-Hole Rack - Rear Mount Point
10. Torque the screws on the front and back of the rail slide.
11. Repeat this procedure for the other slide rail.
In this second portion of system installation, two chassis flanges and two
chassis slide rails are secured to the Acme Packet 6100 chassis.
To install the chassis rail slides on the Acme Packet 6100 chassis:
1. Locate the following components:
• #10-32 x 5/16" flat head (black) screws (4)
• Front-mounting flanges (2)
• #6-32 x 5/16" screws (6)
• #2 Philips screwdriver
• Chassis slide rails (2)
