Alarm Levels
Alarm Port Pin-out
Network
Management Ports
System
Power
On Stby
Console Alarm
Dis
Stby
14
There are three alarm types that each indicate various severity
Table 2 - 2. Alarm Levels
Alarm Type
Minor Functionality has been impaired to a small degree (e.g., a single fan has failed)
Major Pending failures or unexpected events (e.g., a loss of signal)
Critical Catastrophic condition has occurred (e.g., the system is overheating)
The alarm port has pins for ground as well as each alarm level (minor, major
and critical).
Table 2 - 3. Acme Packet 6100 Alarm Port Pin-Outs
Pin Number
1 Minor Alarm (Pin 1)
2 Minor Alarm (Pin 2)
3 Major Alarm (Pin 1)
4 Major Alarm (Pin 2)
5 Critical Alarm (Pin 1)
6 Critical Alarm (Pin 2)
7 Ground
8 Ground

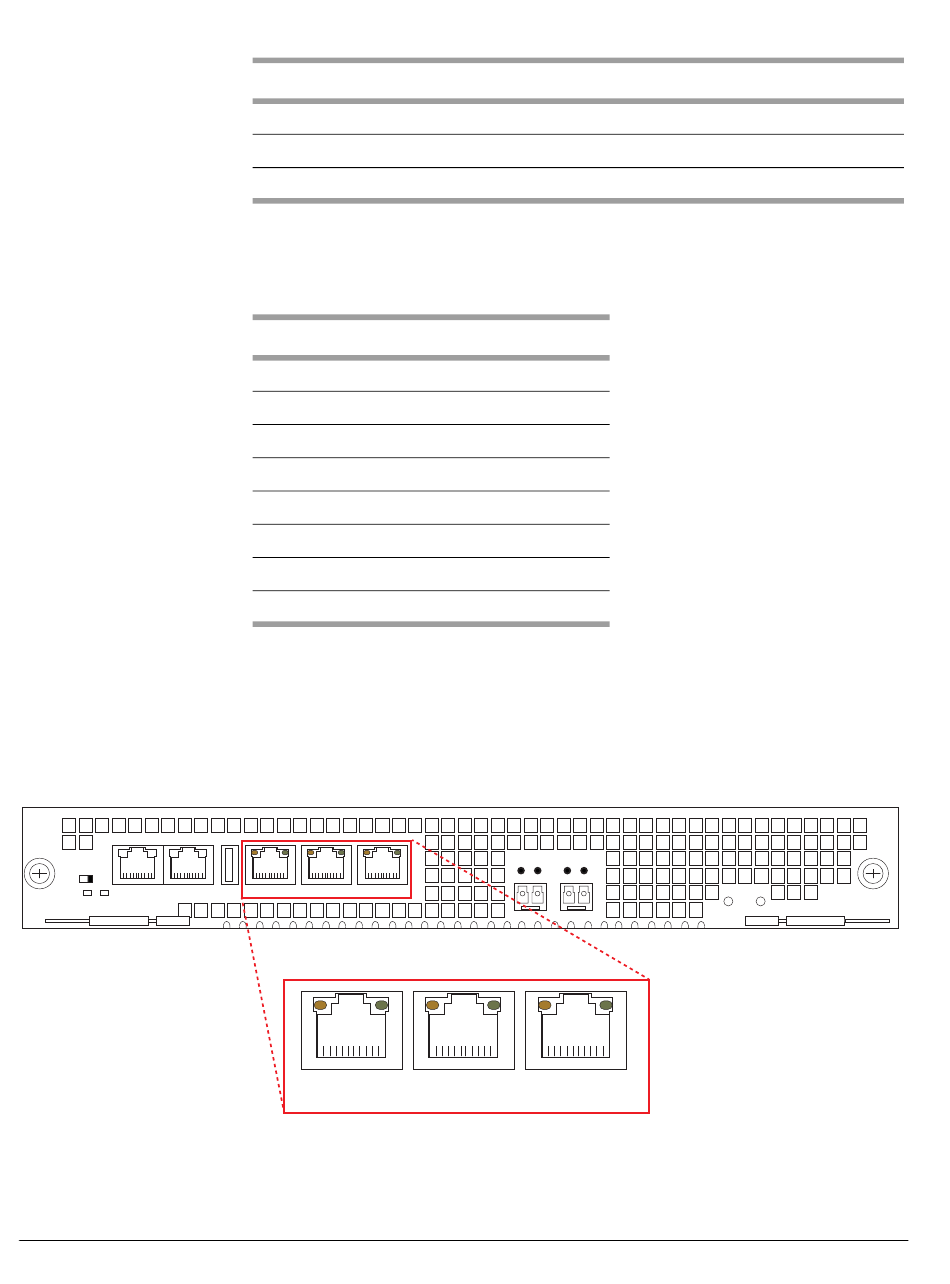

The Acme Packet 6100 has three network management ports located on the left
side of the chassis, labeled Mgmt 0 Mgmt 1 Mgmt 2. These 10/100/1000 Base-T
Ethernet ports are used for EMS control, RADIUS accounting, CLI
management, SNMP queries and traps, and other management functions.
USB Mgmt 0 Mgmt 1 Mgmt 2
Mgmt 0
Figure 2 - 23. Acme Packet 6100 Network Management Ports
Description
Signal Name/Description
LINK ACT LINK ACT
Mgmt 1 Mgmt 2
levels.
PWR H/S
