Console Port Pin Assignments

The DB-9 serial console port on the front-panel is used to
connect the switch to a console device, either directly or
remotely. The pin assignments for connection to another DB-9
port or a DB-25 port are provided below and on the following
pages.

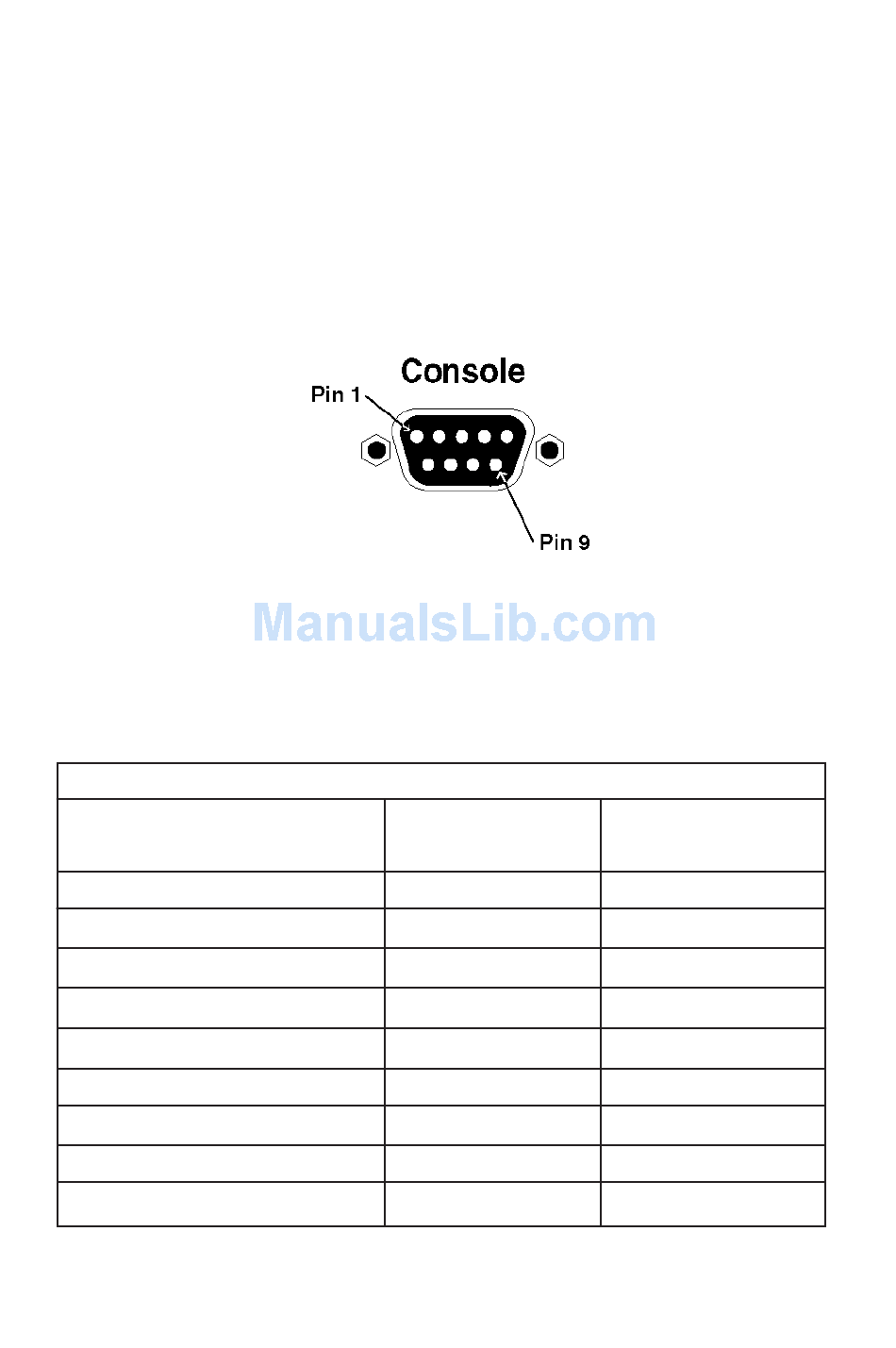

Figure B-2. DB-9 Console Port Pin Numbers
Note: Any cable connected to the Console port must be
shielded to comply with FCC emissions regulations and
with requirements of other regulatory agencies in
various parts of the world.
Signal
DCD (Data Carrier Detected)
RxD (Received Data)
TxD (Transmitted Data)
DTR (Data Terminal Ready)
SG (Signal Ground)
DSR (Data Set Ready)
RTS (Request to Send)
CTS (Clear to Send)
RI (Ring Indicator)
B-4
DB-9 Pin Assignments
DB-9* Pin No.
* DB-9 port on PC or TigerSwitch 100.
DTE
1
2
3
4
5
6
7
8
9
DB-25 Pin No.
DCE
8
3
2
20
7
6
4
5
22
