Water Connections

3.1.6

Gas Connections

22 January 2019

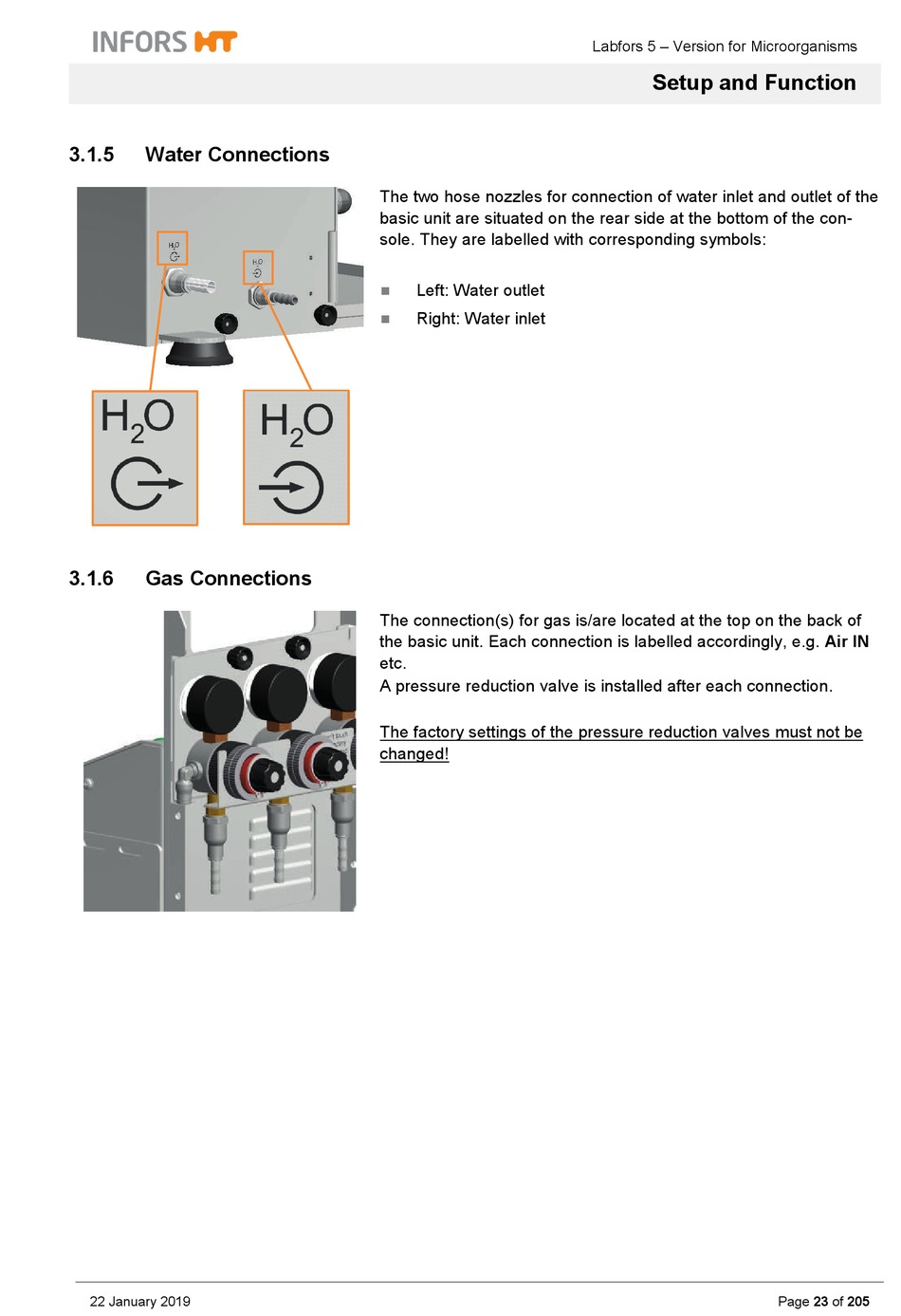

The two hose nozzles for connection of water inlet and outlet of the
basic unit are situated on the rear side at the bottom of the con-
sole. They are labelled with corresponding symbols:
Left: Water outlet

Right: Water inlet

The connection(s) for gas is/are located at the top on the back of
the basic unit. Each connection is labelled accordingly, e.g. Air IN
etc.
A pressure reduction valve is installed after each connection.
The factory settings of the pressure reduction valves must not be
changed!
