Configuring a HaveQuick Input

To configure a HaveQuick input:
50
1.
Navigate to INTERFACES > REFERENCES: HQ Input 0 (or: INTERFACES > OPTION
CARDS: HQ Input 0 ). The Status window will open, displaying information on the
current Reference ID, input Validity, TOD Format, Time Scale, Offset, and TFOM.
(For more information on TFOM, see "Time Figure of Merit (TFOM)" on
page 174.)
2.

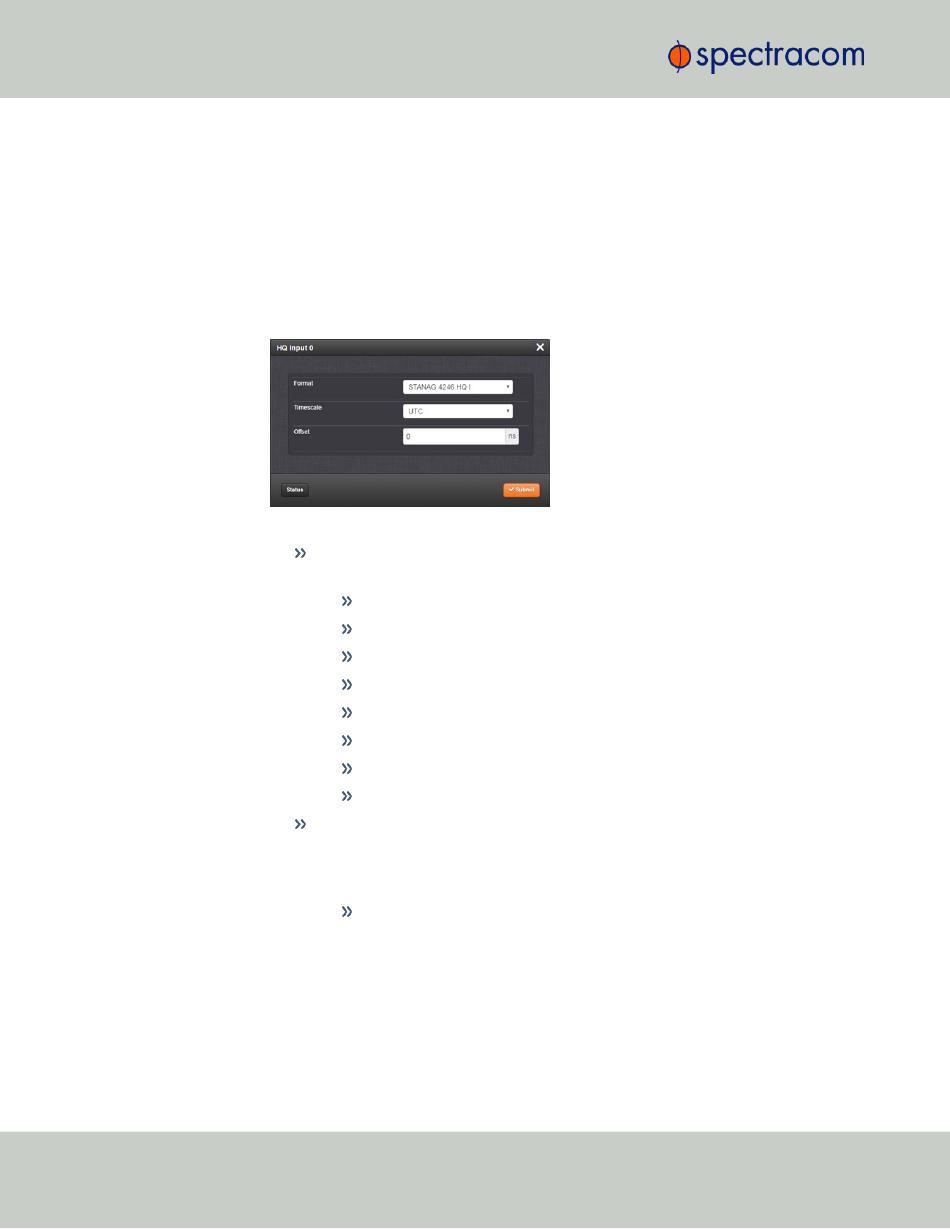

Click Edit to open the Configuration window.
The following settings are configurable:
ToD Format : The user-selectable format to be used. Available formats
include:
STANAG 4246 HAVE QUICK I
STANAG 4246 HAVE QUICK II
STANAG 4372 HAVE QUICK IIA
STANAG 4430 Extended HAVE QUICK
STANAG 4430 Standard Time Message (STM)
ICD-GPS-060A BCD Time Code
ICD-GPS-060A HAVE QUICK
DOD-STD-1399 BCD Time Code
Timescale : Used to select the time base for the incoming time code data.
The entered Timescale is used by the system to convert the time in the incom-
ing data stream to UTC time for use by the System Time. The available
choices are:
UTC : Coordinated Universal Time ("temps universel coordonné"),
also referred to as ZULU time
TAI : Temps Atomique International
GPS : The raw GPS time as transmitted by the GNSS satellites (as of
July, 2018, this is 18 seconds ahead of UTC time).
