2.6 Configuring Inputs/Outputs
2.6.1

Assigning I/O Pins

VersaSync's I/O connector is software configurable, i.e. the pin interfaces and the signal mod-
ulations can be configured by the user via the VersaSync Web UI.
The software-configurable 26-pin I/O connector comprises 9 user-configurable Channels, plus
one fixed USB interface. Channels can be used for the following input or output interfaces:

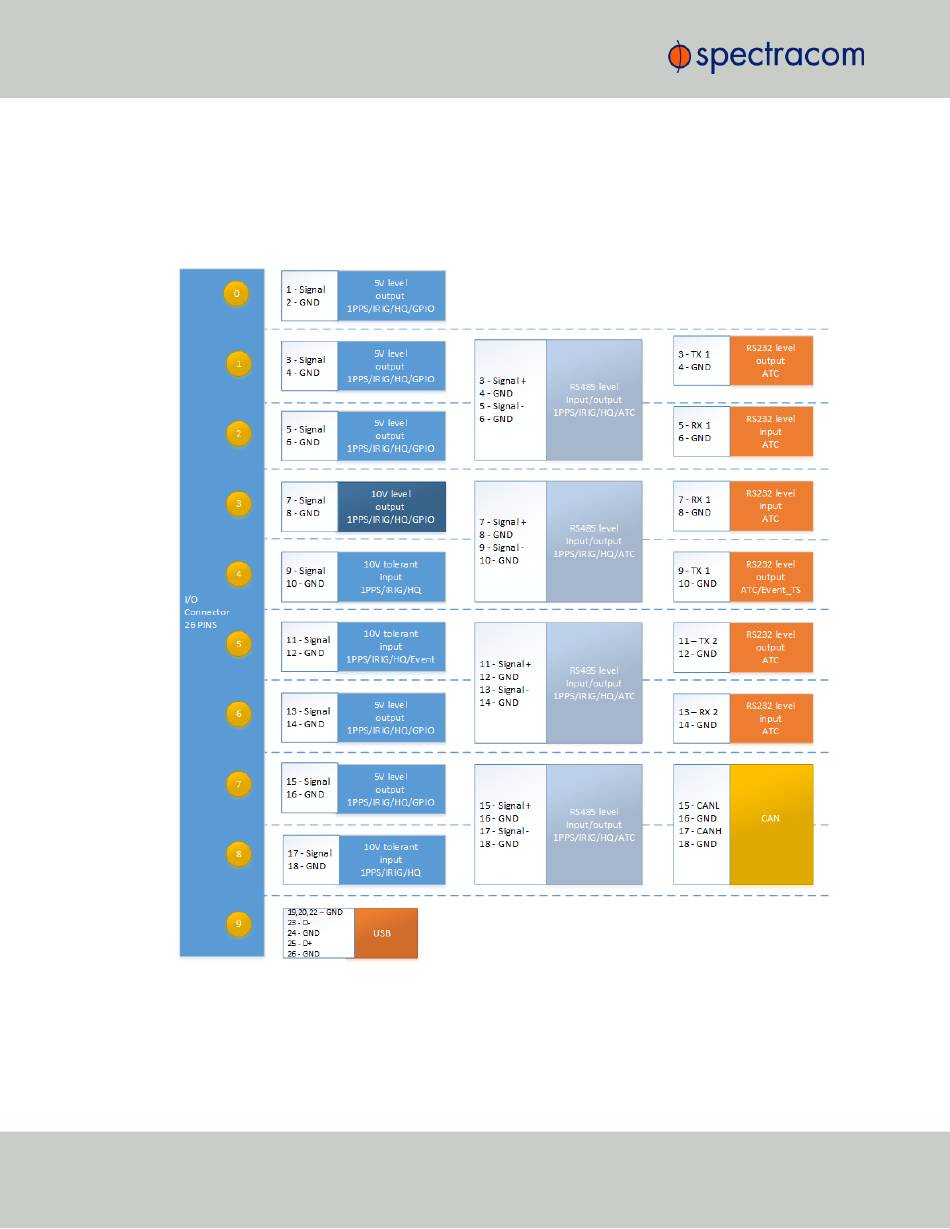

Figure 2-3:
I/O configuration options
