1.7.3 Mechanical & Environmental Specifications
1.7.3.1

Physical Specifications

1.7.3.2

Environmental Requirements

CHAPTER •
1 VersaSync User Manual Rev. 6.0
Dimensions (W x D x H): 147.3 x 127.5 x 63.0 mm ( 5.8 x 5 x 2.5 in)

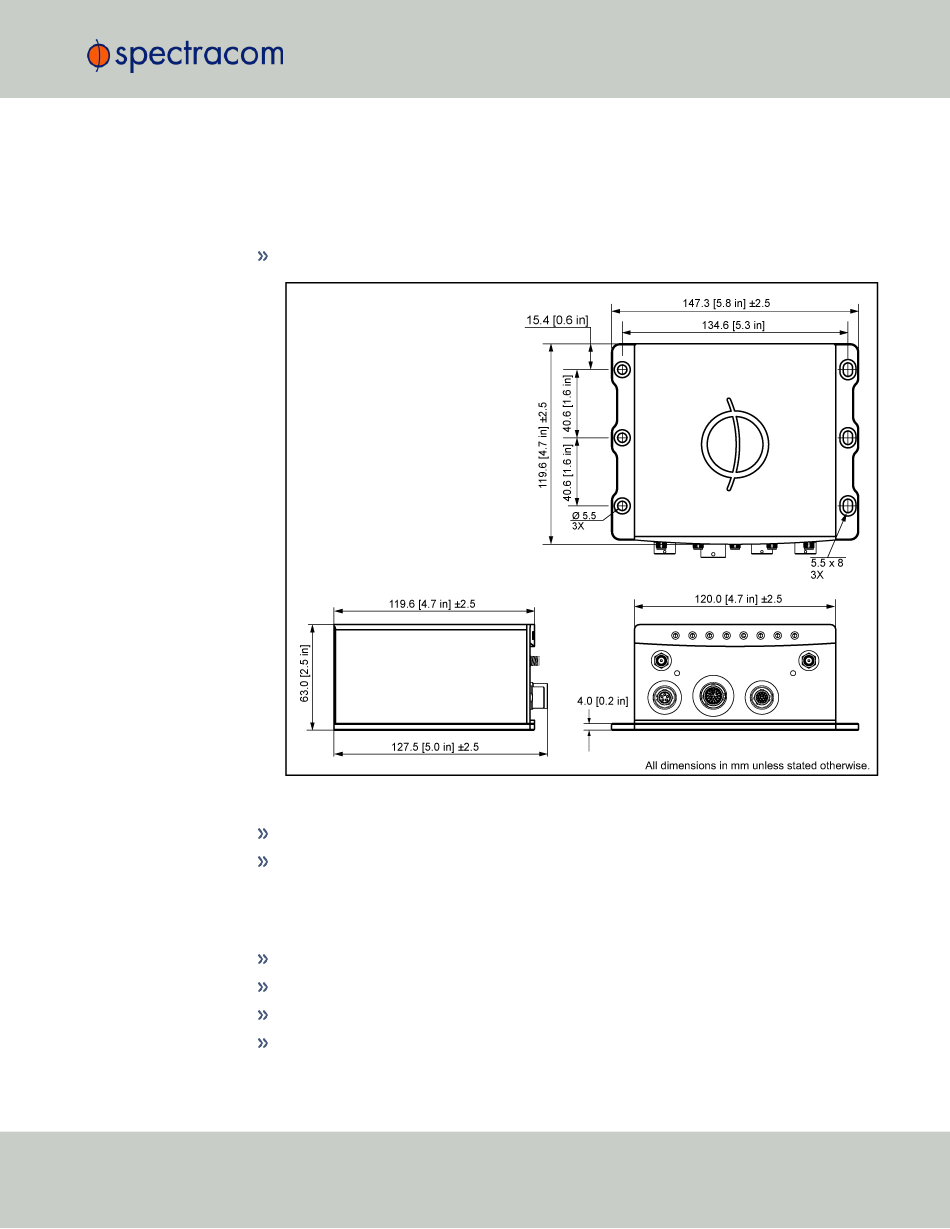

Figure 1-3:
Mechanical dimensions
Mounting : Bolted to a metal plate, using 6 through holes
Weight : 0.91 kg (2.0 lbs)
Temperature, in operation : -40°C to +65°C
Temperature, in storage : -45°C to +85°C
Humidity : 95% RH, non condensing at 40°C
Altitude : up to 45,000 ft
1.7 VersaSync Specifications
