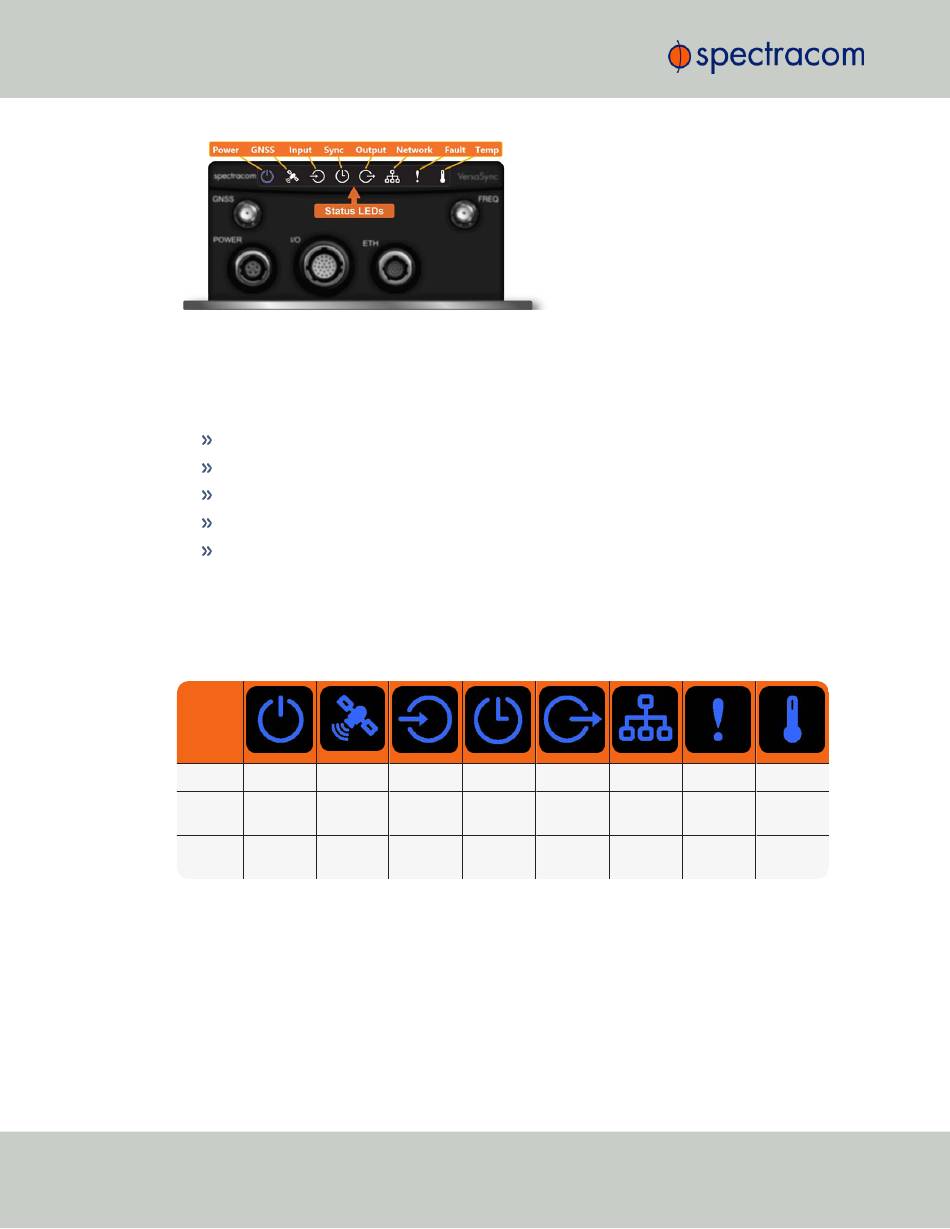

1.3 Status LEDs
The LEDs can be disabled, see "Blackout Mode" on page 6.
1.3.1

Blinking Intervals

The status LEDs can communicate five different operating states:
"OFF"
"ON"
"FAST" : blinking interval @ 8Hz
"SLOW" : blinking interval @ 2Hz
"HEARTBEAT" : sinus-shaped interval @ 1Hz
1.3.2

LED Lighting Patterns

The table below indicates LED status light patterns for common VersaSync operating statuses.
Table 1-1:
Start-up
Acquir-
ing fix
Software
upgrade
4
Common light patterns
HEARTB. OFF OFF
FAST FAST FAST
FAST OFF OFF
OFF OFF OFF
FAST FAST FAST
FAST OFF FAST
CHAPTER •
1 VersaSync User Manual Rev. 6.0
OFF OFF
HEARTB. FAST
HEARTB. OFF
