1.5 Connectors and their Pinouts
1.5

Connectors and their Pinouts

All of VersaSync's connectors are provided at the front panel of the unit, below the Status LEDs.
The Advanced Military Connectors are keyed for foolproof connectivity and offer a push-pull
locking mechanism.

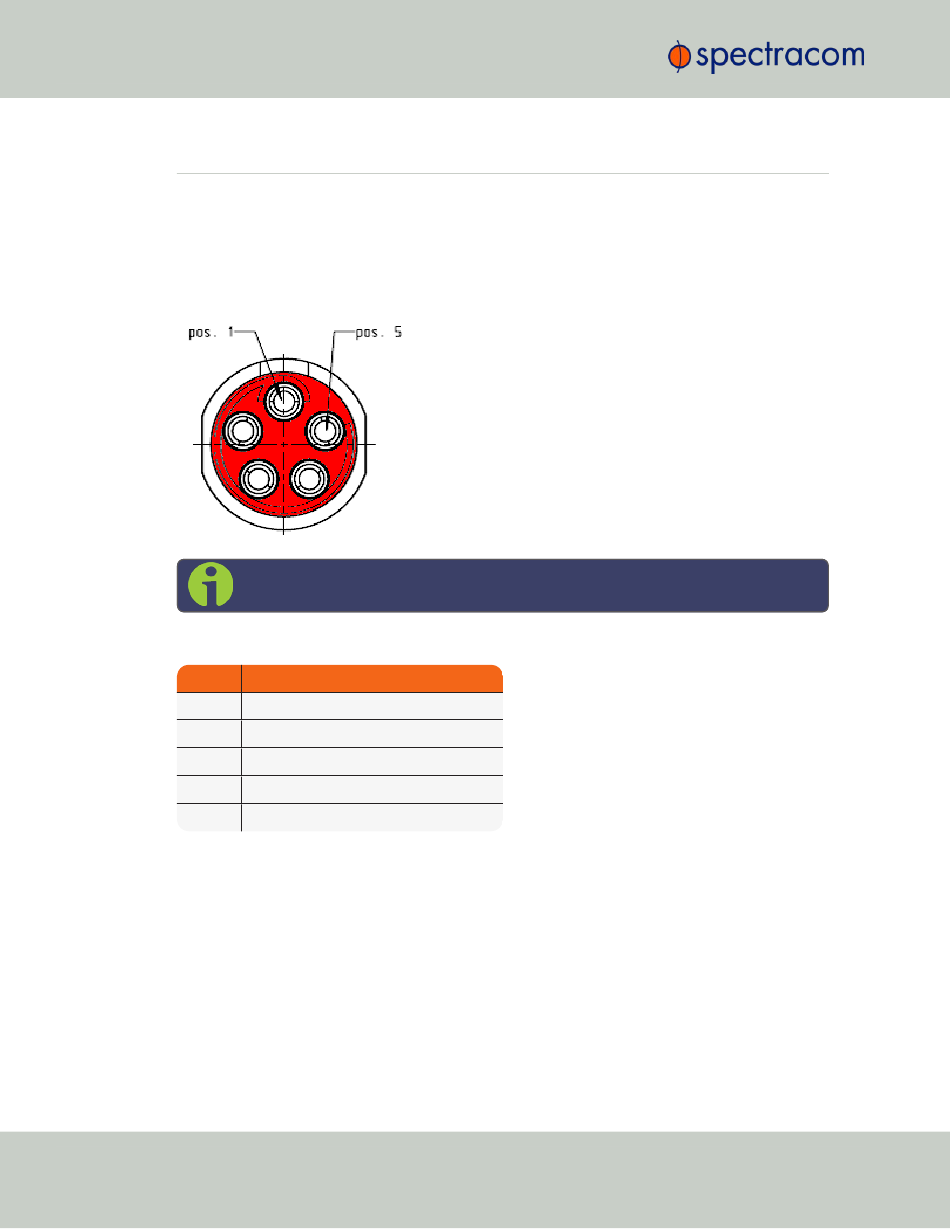

1.5.1

Power Connector

Table 1-5:
Pin
1
2
3
4
5
1.5.2

Input/Output Connector

VersaSync has a 26- pin input/output connector that offers 8 software- configurable
CHANNELS, plus one fixed DCLS channel, and a USB interface. To learn more about types of
interfaces and signals, and how to configure them, see "Assigning I/O Pins" on page 36.
8
View in mating direction from front.
Note:
Power connector pinout
Signal
V (10 to 32 V)
Main
V (10 to 32 V)
Main
V (10 to 32 V)
Batt
GND
GND
