2.6 Configuring Inputs/Outputs
2.6.2

Configuring I/O Settings

2.6.2.1

How to Configure an Input Reference

To access the user-editable settings of an Input Reference, choose one of these two methods:
Configuring the settings of an input reference, method 1:
1.
Under INTERFACES > REFERENCES , click the desired reference.
2.
The Status window for the specific reference you selected will be displayed. Click the Edit but-
ton in the bottom-left corner.
3.
The settings window for the chosen reference will be displayed. Edit the field(s) as desired.
Configuring the settings of an input reference, method 2:
1.
In the INTERFACES > REFERENCES drop-down menu, click REFERENCES (white on orange), or
an input reference category (e.g., "GNSS reference").
2.
In the Status window, click the GEAR button next to the desired input reference.
3.
The settings window for the chosen reference will be displayed. Edit the field(s) as desired.
40

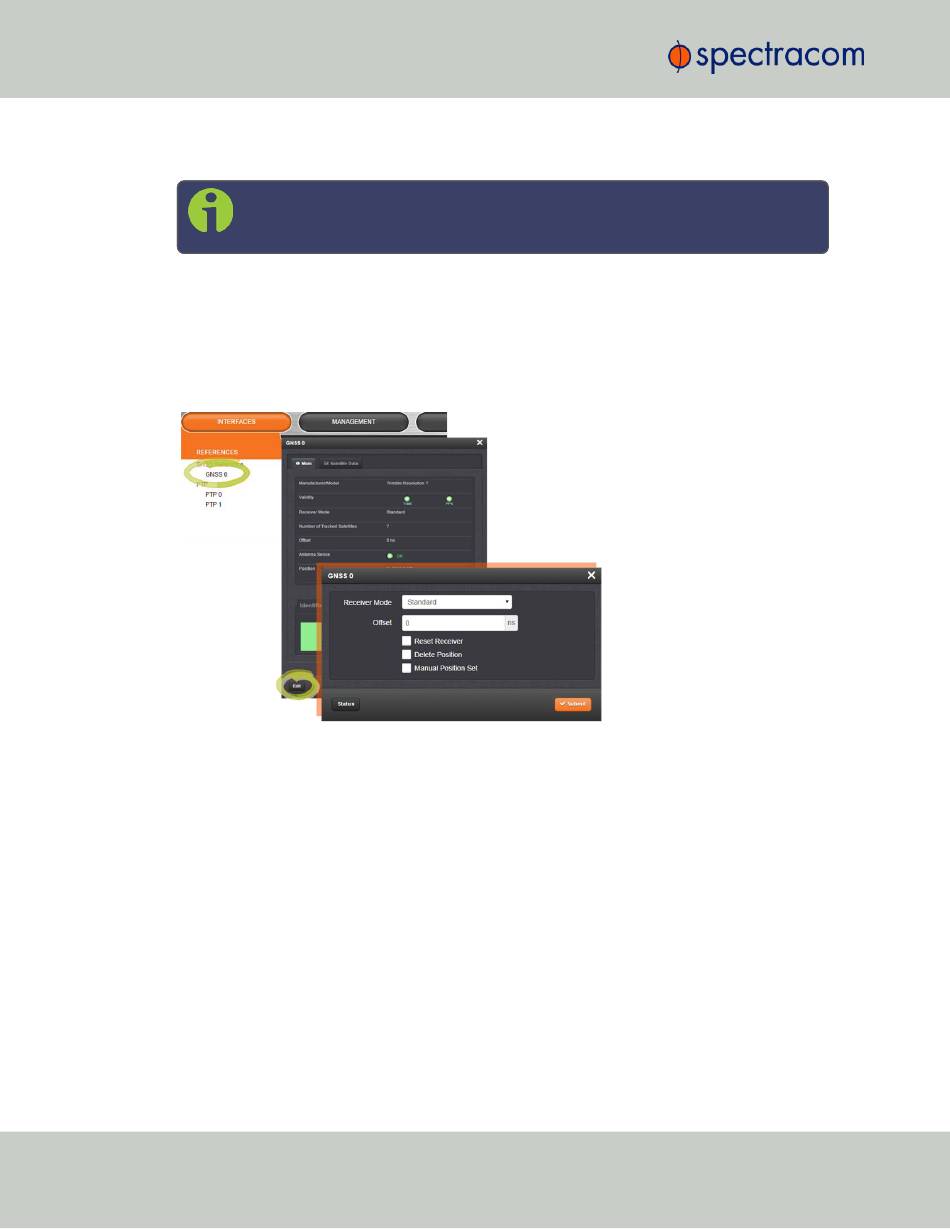

Note: Illustrations shown below are examples; the windows displayed in your
Web UI may look differently.
