6.
7.
8.
Restoring the Default I/O Configuration
VersaSync is shipped with a default I/O configuration that you can be customized. However, if
required you can restore the default configuration at any time after applying changes.

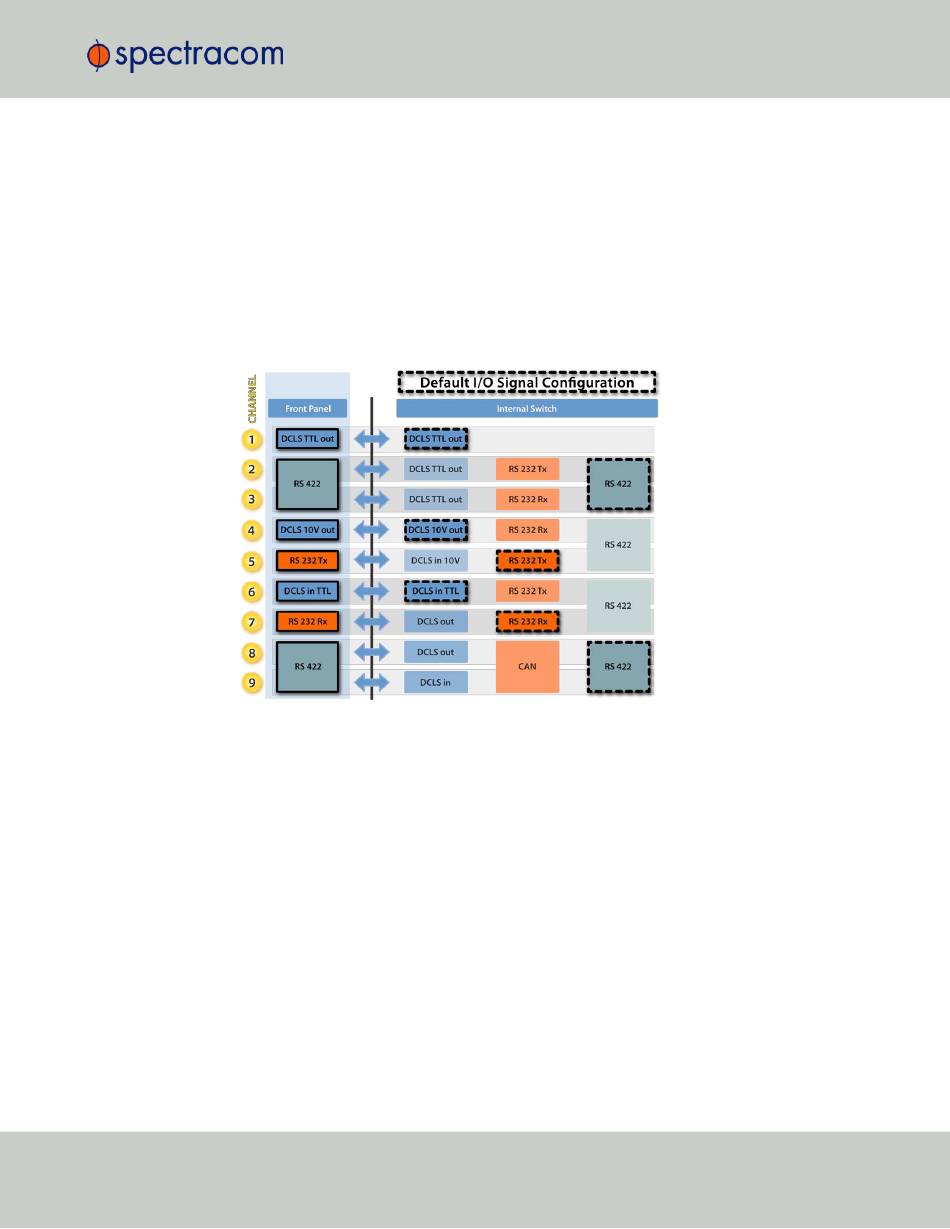

The following illustration shows the default I/O pin configuration :
Figure 2-4:
To restore the default I/O pin configuration:
A.
B.
Reloading the Current I/O Configuration
To reload the currently used I/O configuration after adding pin layout changes, but before
clicking Apply Changes :
A.
B.
CHAPTER •
2 VersaSync User Manual Rev. 6.0
From the Pins drop-down menu in line 3, select the pin pair you chose in Step 2. (Note
that you will need 4 pins if you selected a RS485 signal Type.)
Click Submit .
In the Actions panel, click Apply Changes .
Default I/O configuration
Navigate to the MANAGEMENT: NETWORK > Pin Layout screen.
In the Actions panel on the left, click Restore Default Layout .
Navigate to the MANAGEMENT: NETWORK > Pin Layout screen.
In the Actions panel on the left, click Reload Layout .
2.6 Configuring Inputs/Outputs
