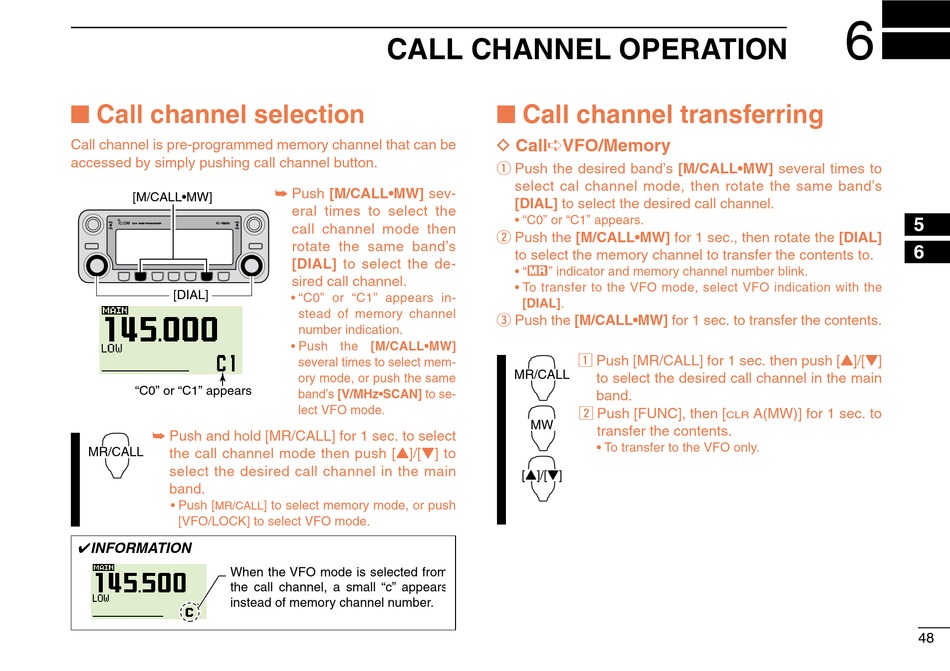

Call Channel Operation; I Call Channel Selection; I Call Channel Transferring - Icom IC-2820H Instruction Manual

I Call channel selection

Call channel is pre-programmed memory channel that can be
accessed by simply pushing call channel button.
[M/CALL•MW]
i2820
DUO BAND TRANSCEIVER
[DIAL]
"C0" or "C1" appears
➥ Push and hold [MR/CALL] for 1 sec. to select
MR/CALL
the call channel mode then push [Y]/[Z] to
select the desired call channel in the main
band.
• Push [
MR/CALL
[VFO/LOCK] to select VFO mode.
✔INFORMATION
When the VFO mode is selected from
the call channel, a small "c" appears
instead of memory channel number.

CALL CHANNEL OPERATION

➥ Push [M/CALL•MW] sev-
eral times to select the
call channel mode then
rotate the same band's
[DIAL] to select the de-
sired call channel.
• "C0" or "C1" appears in-
stead of memory channel
number indication.
• Push the [M/CALL•MW]
several times to select mem-
ory mode, or push the same
band's [V/MHz•SCAN] to se-
lect VFO mode.
] to select memory mode, or push

I Call channel transferring

D Call➪VFO/Memory
q Push the desired band's [M/CALL•MW] several times to
select cal channel mode, then rotate the same band's
[DIAL] to select the desired call channel.
• "C0" or "C1" appears.
w Push the [M/CALL•MW] for 1 sec., then rotate the [DIAL]
to select the memory channel to transfer the contents to.
• "X" indicator and memory channel number blink.
• To transfer to the VFO mode, select VFO indication with the
[DIAL].
e Push the [M/CALL•MW] for 1 sec. to transfer the contents.
z Push [MR/CALL] for 1 sec. then push [Y]/[Z]
MR/CALL
to select the desired call channel in the main
band.
x Push [FUNC], then [
MW
transfer the contents.
• To transfer to the VFO only.
[Y]/[Z]
6
A(MW)] for 1 sec. to
