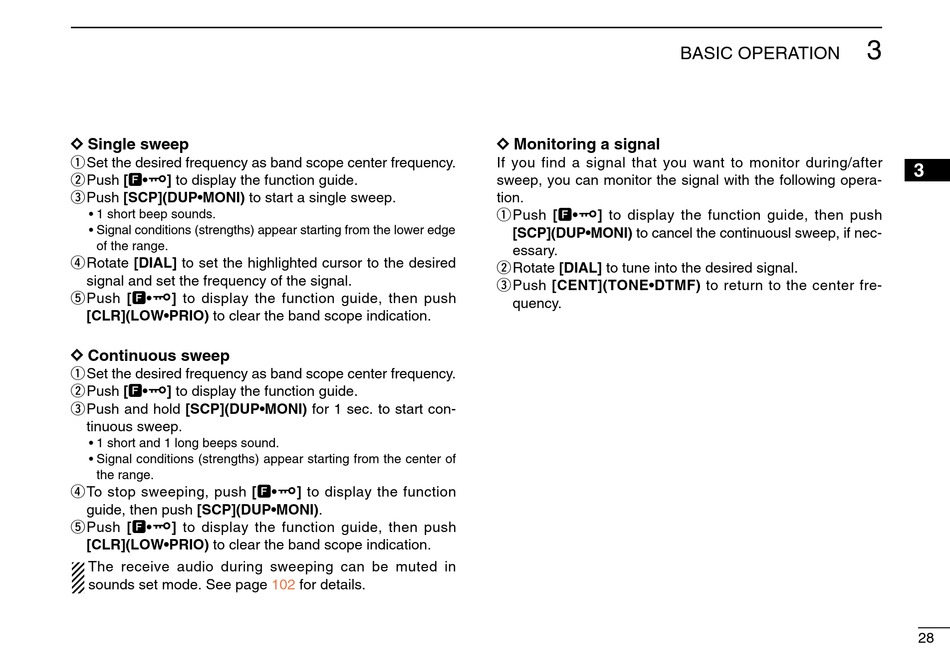

Icom IC-2820H Instruction Manual page 45

D D Single sweep
q Set the desired frequency as band scope center frequency.
w Push [F•
] to display the function guide.
ePush [SCP](DUP•MONI) to start a single sweep.
• 1 short beep sounds.
• Signal conditions (strengths) appear starting from the lower edge
of the range.
rRotate [DIAL] to set the highlighted cursor to the desired
signal and set the frequency of the signal.
tPush [F•
] to display the function guide, then push
[CLR](LOW•PRIO) to clear the band scope indication.
D D Continuous sweep
q Set the desired frequency as band scope center frequency.
w Push [F•
] to display the function guide.
ePush and hold [SCP](DUP•MONI) for 1 sec. to start con-
tinuous sweep.
• 1 short and 1 long beeps sound.
• Signal conditions (strengths) appear starting from the center of
the range.
rTo stop sweeping, push [F•
guide, then push [SCP](DUP•MONI).
tPush [F•
] to display the function guide, then push
[CLR](LOW•PRIO) to clear the band scope indication.
The receive audio during sweeping can be muted in
sounds set mode. See page
] to display the function
102 for details.
D D Monitoring a signal
If you find a signal that you want to monitor during/after
sweep, you can monitor the signal with the following opera-
tion.
qPush [F•
] to display the function guide, then push
[SCP](DUP•MONI) to cancel the continuousl sweep, if nec-
essary.
w Rotate [DIAL] to tune into the desired signal.
ePush [CENT](TONE•DTMF) to return to the center fre-
quency.
BASIC OPERATION
