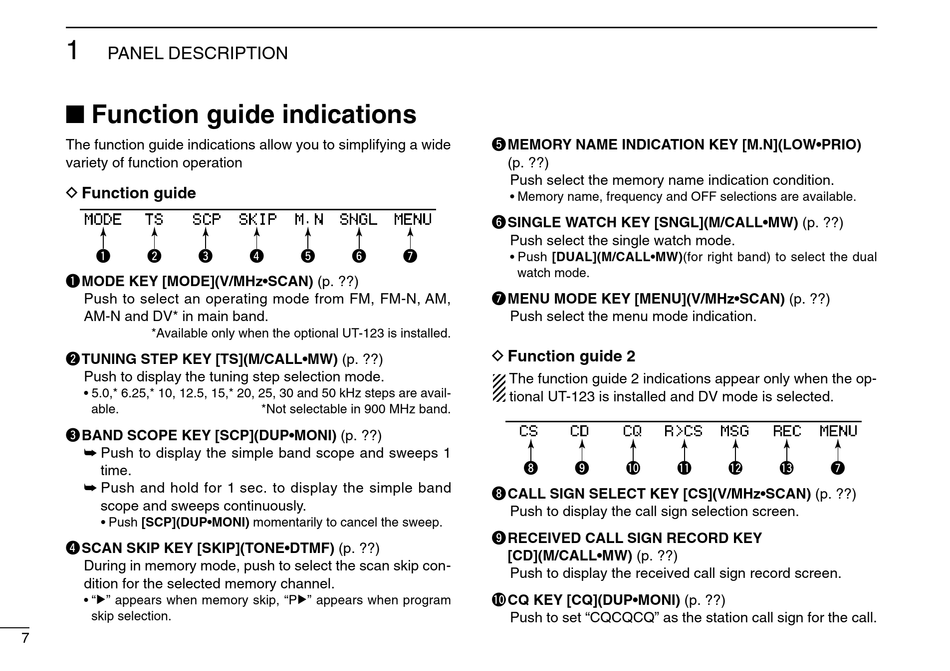

Icom IC-2820H Instruction Manual page 24

1
PANEL DESCRIPTION
I Function guide indications
The function guide indications allow you to simplifying a wide
variety of function operation
D Function guide
q w e
q MODE KEY [MODE](V/MHz•SCAN) (p. ??)
Push to select an operating mode from FM, FM-N, AM,
AM-N and DV* in main band.
*Available only when the optional UT-123 is installed.
w TUNING STEP KEY [TS](M/CALL•MW) (p. ??)
Push to display the tuning step selection mode.
• 5.0,* 6.25,* 10, 12.5, 15,* 20, 25, 30 and 50 kHz steps are avail-
able.
e BAND SCOPE KEY [SCP](DUP•MONI) (p. ??)
➥ Push to display the simple band scope and sweeps 1
time.
➥ Push and hold for 1 sec. to display the simple band
scope and sweeps continuously.
• Push [SCP](DUP•MONI) momentarily to cancel the sweep.
r SCAN SKIP KEY [SKIP](TONE•DTMF) (p. ??)
During in memory mode, push to select the scan skip con-
dition for the selected memory channel.
• "≈" appears when memory skip, "P≈" appears when program
skip selection.
7
r t y u
*Not selectable in 900 MHz band.
tMEMORY NAME INDICATION KEY [M.N](LOW•PRIO)
(p. ??)
Push select the memory name indication condition.
• Memory name, frequency and OFF selections are available.
y SINGLE WATCH KEY [SNGL](M/CALL•MW) (p. ??)
Push select the single watch mode.
• Push [DUAL](M/CALL•MW)(for right band) to select the dual
watch mode.
u MENU MODE KEY [MENU](V/MHz•SCAN) (p. ??)
Push select the menu mode indication.
D Function guide 2
The function guide 2 indications appear only when the op-
tional UT-123 is installed and DV mode is selected.
i o !0
i CALL SIGN SELECT KEY [CS](V/MHz•SCAN) (p. ??)
Push to display the call sign selection screen.
oRECEIVED CALL SIGN RECORD KEY
[CD](M/CALL•MW) (p. ??)
Push to display the received call sign record screen.
!0 CQ KEY [CQ](DUP•MONI) (p. ??)
Push to set "CQCQCQ" as the station call sign for the call.
!1 !2 !3 u
