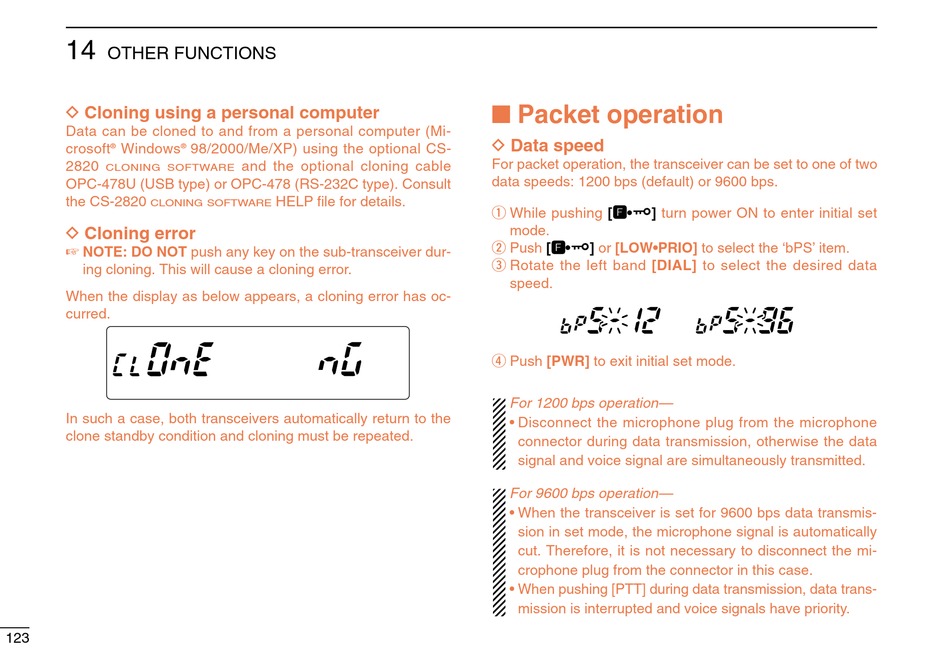

14
OTHER FUNCTIONS
D Cloning using a personal computer
Data can be cloned to and from a personal computer (Mi-
crosoft Windows
® ®
2820
CLONING SOFTWARE
OPC-478U (USB type) or OPC-478 (RS-232C type). Consult
the CS-2820
CLONING SOFTWARE
D Cloning error
NOTE: DO NOT push any key on the sub-transceiver dur-
ing cloning. This will cause a cloning error.
When the display as below appears, a cloning error has oc-
curred.
MAIN
T X
In such a case, both transceivers automatically return to the
clone standby condition and cloning must be repeated.
123
98/2000/Me/XP) using the optional CS-
and the optional cloning cable
HELP file for details.
MAIN
T X
M M

I Packet operation

D Data speed
For packet operation, the transceiver can be set to one of two
data speeds: 1200 bps (default) or 9600 bps.
q While pushing
[F F •
] turn power ON to enter initial set
mode.
w Push [F F •
] or [LOW•PRIO] to select the 'bPS' item.
e Rotate the left band [DIAL] to select the desired data
speed.
MAIN
T X
M
r Push [PWR] to exit initial set mode.
For 1200 bps operation—
• Disconnect the microphone plug from the microphone
connector during data transmission, otherwise the data
signal and voice signal are simultaneously transmitted.
For 9600 bps operation—
• When the transceiver is set for 9600 bps data transmis-
sion in set mode, the microphone signal is automatically
cut. Therefore, it is not necessary to disconnect the mi-
crophone plug from the connector in this case.
• When pushing [PTT] during data transmission, data trans-
mission is interrupted and voice signals have priority.
MAIN
T X
M
