D DC power supply connection
Use a 13.8 V DC power supply with at least 15 A capacity.
Make sure the ground terminal of the DC power supply is
grounded.

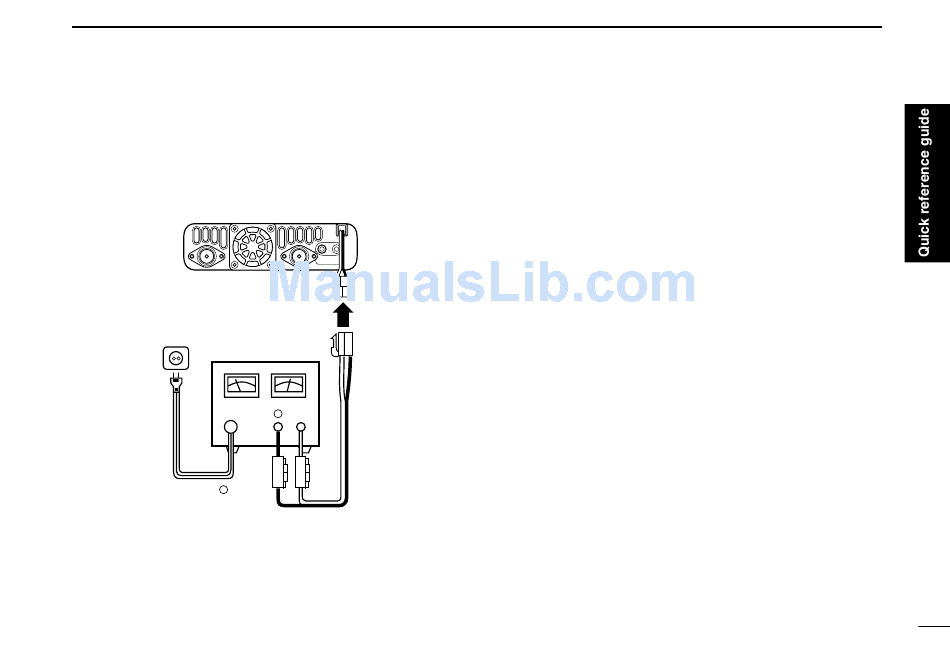

• CONNECTING TO A DC POWER SUPPLY
IC-2820H
DC power
supply 13.8 V
to an
AC
outlet
−
black
⊕
red
See p. ?? for fuse replacement.
−
⊕
Fuses
20 A
