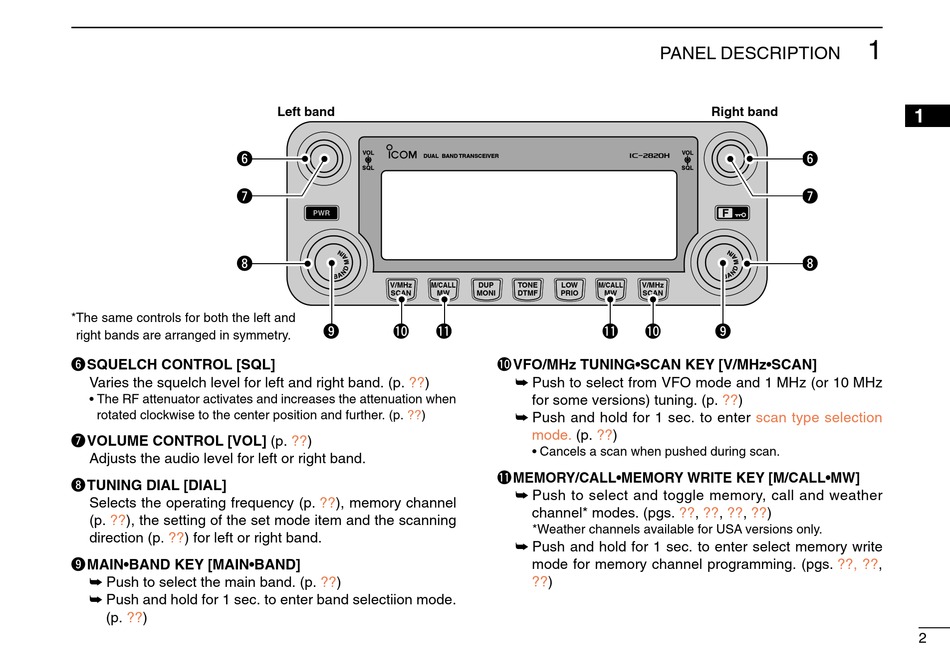

Icom IC-2820H Instruction Manual page 19

y
u
i
*The same controls for both the left and
right bands are arranged in symmetry.
y SQUELCH CONTROL [SQL]
Varies the squelch level for left and right band. (p. ??)
• The RF attenuator activates and increases the attenuation when
rotated clockwise to the center position and further. (p. ??)
u VOLUME CONTROL [VOL] (p. ??)
Adjusts the audio level for left or right band.
i TUNING DIAL [DIAL]
Selects the operating frequency (p. ??), memory channel
(p. ??), the setting of the set mode item and the scanning
direction (p. ??) for left or right band.
o MAIN•BAND KEY [MAIN•BAND]
➥ Push to select the main band. (p. ??)
➥ Push and hold for 1 sec. to enter band selectiion mode.
(p. ??)
Left band
DUAL BAND TRANSCEIVER
V/MHz M/CALL
SCAN MW
o !0 !1
i2820H
DUP TONE LOW M/CALL V/MHz
MONI DTMF PRIO MW SCAN
!1 !0
!0 VFO/MHz TUNING•SCAN KEY [V/MHz•SCAN]
➥ Push to select from VFO mode and 1 MHz (or 10 MHz
for some versions) tuning. (p. ??)
➥ Push and hold for 1 sec. to enter
mode. (p. ??)
• Cancels a scan when pushed during scan.
!1 M EMORY/CALL•MEMORY WRITE KEY [M/CALL•MW]
➥ Push to select and toggle memory, call and weather
channel* modes. (pgs. ??, ??, ??, ??)
*Weather channels available for USA versions only.
➥ Push and hold for 1 sec. to enter select memory write
mode for memory channel programming. (pgs.
??)
PANEL DESCRIPTION
Right band
y
u
i
o
scan type selection
??,
