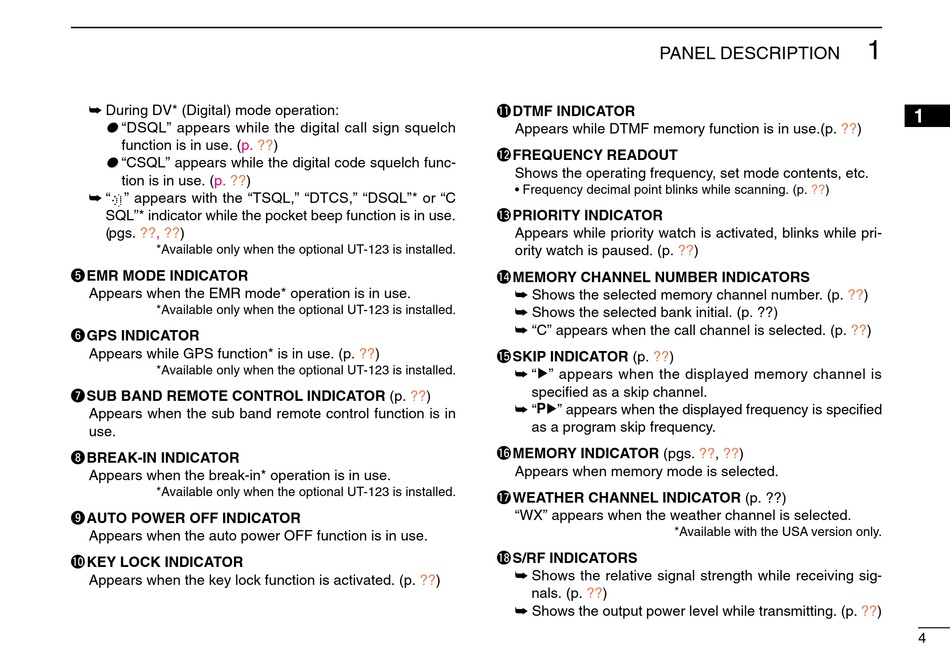

Icom IC-2820H Instruction Manual page 21

➥ During DV* (Digital) mode operation:
G G "DSQL" appears while the digital call sign squelch
function is in use. (p.
G "CSQL" appears while the digital code squelch func-
G
tion is in use. (p. ??)
➥ " " appears with the "TSQL," "DTCS," "DSQL"* or "C
SQL"* indicator while the pocket beep function is in use.
(pgs. ??, ??)
*Available only when the optional UT-123 is installed.
t EMR MODE INDICATOR
Appears when the EMR mode* operation is in use.
*Available only when the optional UT-123 is installed.
y GPS INDICATOR
Appears while GPS function* is in use. (p. ??)
*Available only when the optional UT-123 is installed.
u SUB BAND REMOTE CONTROL INDICATOR (p. ??)
Appears when the sub band remote control function is in
use.
i BREAK-IN INDICATOR
Appears when the break-in* operation is in use.
*Available only when the optional UT-123 is installed.
o AUTO POWER OFF INDICATOR
Appears when the auto power OFF function is in use.
!0 KEY LOCK INDICATOR
Appears when the key lock function is activated. (p. ??)
??)
PANEL DESCRIPTION
!1 DTMF INDICATOR
Appears while DTMF memory function is in use.(p. ??)
!2 FREQUENCY READOUT
Shows the operating frequency, set mode contents, etc.
• Frequency decimal point blinks while scanning. (p. ??)
!3 PRIORITY INDICATOR
Appears while priority watch is activated, blinks while pri-
ority watch is paused. (p. ??)
!4 MEMORY CHANNEL NUMBER INDICATORS
➥ Shows the selected memory channel number. (p. ??)
➥ Shows the selected bank initial. (p. ??)
➥ "C" appears when the call channel is selected. (p. ??)
!5 SKIP INDICATOR (p. ??)
➥ "≈" appears when the displayed memory channel is
specified as a skip channel.
➥ " P ≈" appears when the displayed frequency is specified
as a program skip frequency.
!6 MEMORY INDICATOR (pgs. ??, ??)
Appears when memory mode is selected.
!7 WEATHER CHANNEL INDICATOR (p. ??)
"WX" appears when the weather channel is selected.
*Available with the USA version only.
!8 S/RF INDICATORS
➥ Shows the relative signal strength while receiving sig-
nals. (p. ??)
➥ Shows the output power level while transmitting. (p. ??)
