When the diversity operation is in use, connect the same
grade antenna, connected to [ANT1], shuld be connected
to [ANT2].
➥ During single band operation with the diversity function ON,
the diversity indicator appears as below.
While [ANT2] is
selected;
While [ANT2] is
selected;
Diversity indicator appears.
With the squelch open in FM mode while receiving a weak
signal, diversity receiving does not work properly.

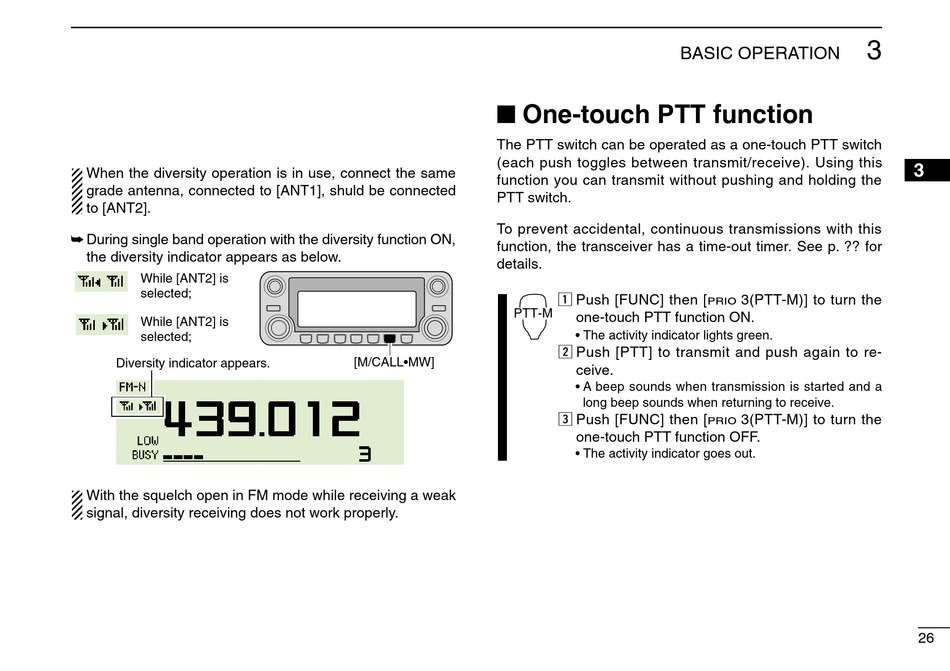

I One-touch PTT function

The PTT switch can be operated as a one-touch PTT switch
(each push toggles between transmit/receive). Using this
function you can transmit without pushing and holding the
PTT switch.
To prevent accidental, continuous transmissions with this
function, the transceiver has a time-out timer. See p. ?? for
details.
PTT-M
[M/CALL•MW]
BASIC OPERATION
z Push [FUNC] then [
PRIO
one-touch PTT function ON.
• The activity indicator lights green.
x Push [PTT] to transmit and push again to re-
ceive.
• A beep sounds when transmission is started and a
long beep sounds when returning to receive.
c Push [FUNC] then [
PRIO
one-touch PTT function OFF.
• The activity indicator goes out.
3
1
2
3
4
5
6
7
3(PTT-M)] to turn the
8
9
10
11
12
3(PTT-M)] to turn the
13
14
15
16
17
18
19
26
