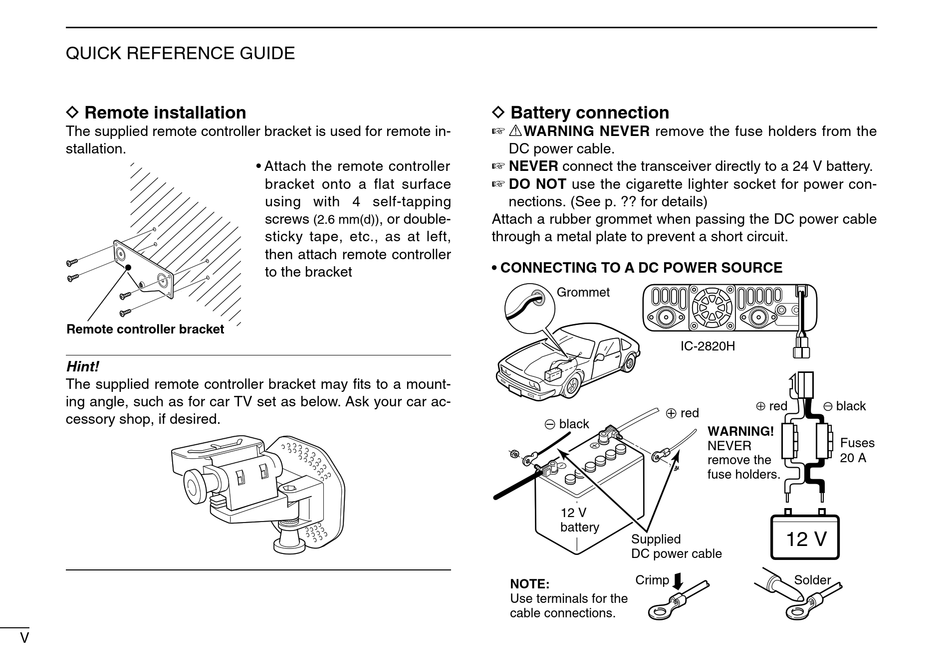

QUICK REFERENCE GUIDE
D Remote installation
The supplied remote controller bracket is used for remote in-
stallation.
Remote controller bracket
Hint!
The supplied remote controller bracket may fits to a mount-
ing angle, such as for car TV set as below. Ask your car ac-
cessory shop, if desired.
V
• Attach the remote controller
bracket onto a flat surface
using with 4 self-tapping
screws , or double-
(2.6 mm(d))
sticky tape, etc., as at left,
then attach remote controller
to the bracket
D Battery connection
RWARNING NEVER remove the fuse holders from the
DC power cable.
NEVER connect the transceiver directly to a 24 V battery.
DO NOT use the cigarette lighter socket for power con-
nections. (See p. ?? for details)
Attach a rubber grommet when passing the DC power cable
through a metal plate to prevent a short circuit.
• CONNECTING TO A DC POWER SOURCE
Grommet
+ red
_ black
12 V
battery
Supplied
DC power cable
Crimp
NOTE:
Use terminals for the
cable connections.
IC-2820H
−
⊕
red black
WARNING!
Fuses
NEVER
20 A
remove the
fuse holders.
12 V
Solder
