1. Fast Leave on the port is effective only when the host supports IGMPv2 or IGMPv3.
2. When both Fast Leave feature and Unknown Multicast Discard feature are enabled, the
leaving of a user connected to a port owning multi-user will result in the other users
intermitting the multicast business.
3. Multicast Filter feature can only have effect on the VLAN with IGMP Snooping enabled.
4. Multicast Filter feature has no effect on static multicast IP.
5. Up to 15 IP-Ranges can be bound to one port.
320306" KR/Tcpig"
On this page you can figure the desired IP-ranges to be filtered.
Choose the menu Ownvkecuv→KIOR"Upqqrkpi→KR/Tcpig"to load the following page."
The following entries are displayed on this screen:
Etgcvg"KR/Tcpig"
"
KR"Tcpig"KF<"
Uvctv"Ownvkecuv"KR<"
Gpf"Ownvkecuv"KR<"
KR/Tcpig"Vcdng"
"
KR/Tcpig"KF"Ugngev<"
Ugngev<"
KR/Tcpig"KF<"
Uvctv"Ownvkecuv"KR<"
Gpf"Ownvkecuv"KR<"

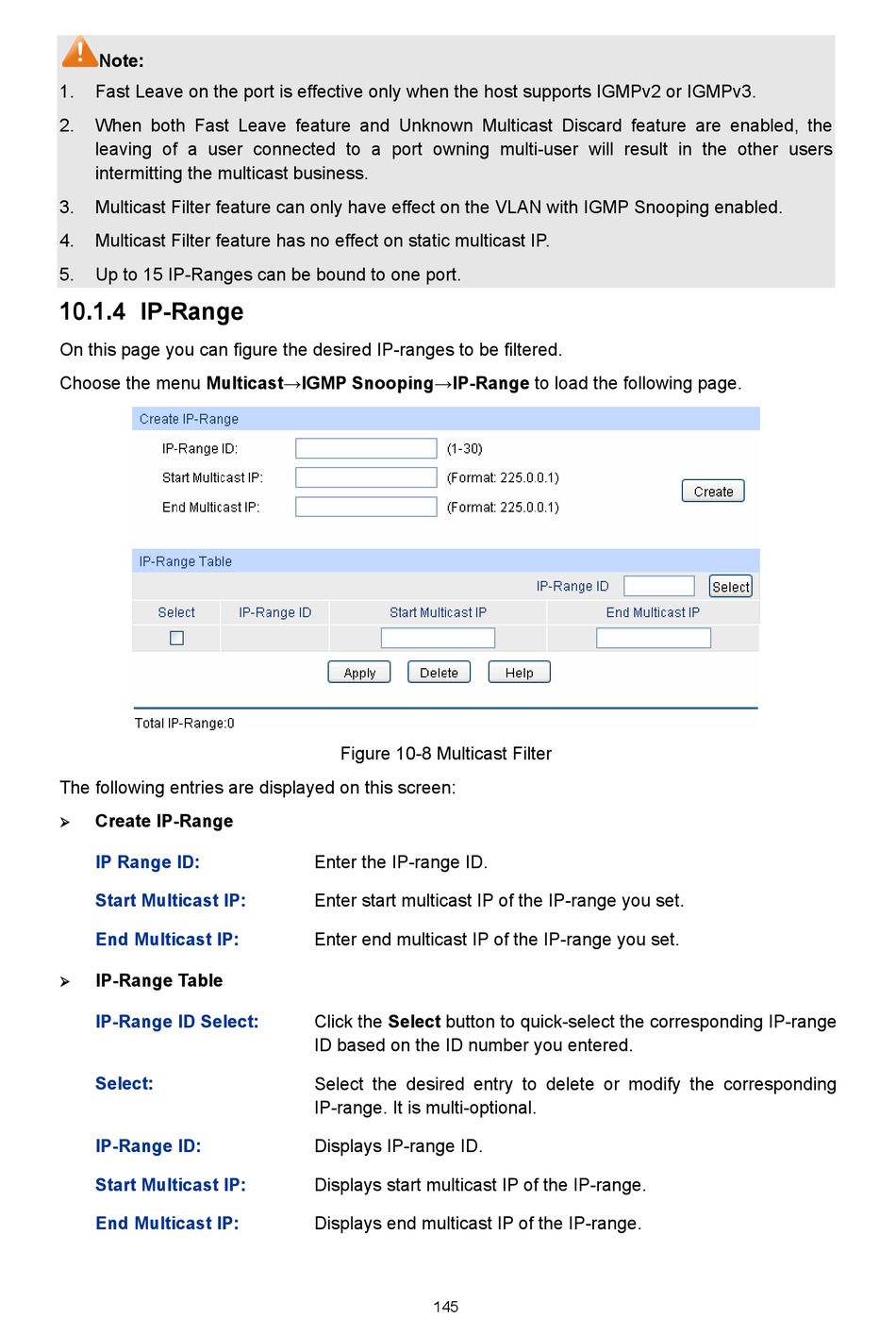

Figure 10-8 Multicast Filter
Enter the IP-range ID.
Enter start multicast IP of the IP-range you set.
Enter end multicast IP of the IP-range you set.
Click the Ugngev button to quick-select the corresponding IP-range
ID based on the ID number you entered.
Select the desired entry to delete or modify the corresponding
IP-range. It is multi-optional.
Displays IP-range ID.
Displays start multicast IP of the IP-range.
Displays end multicast IP of the IP-range.
