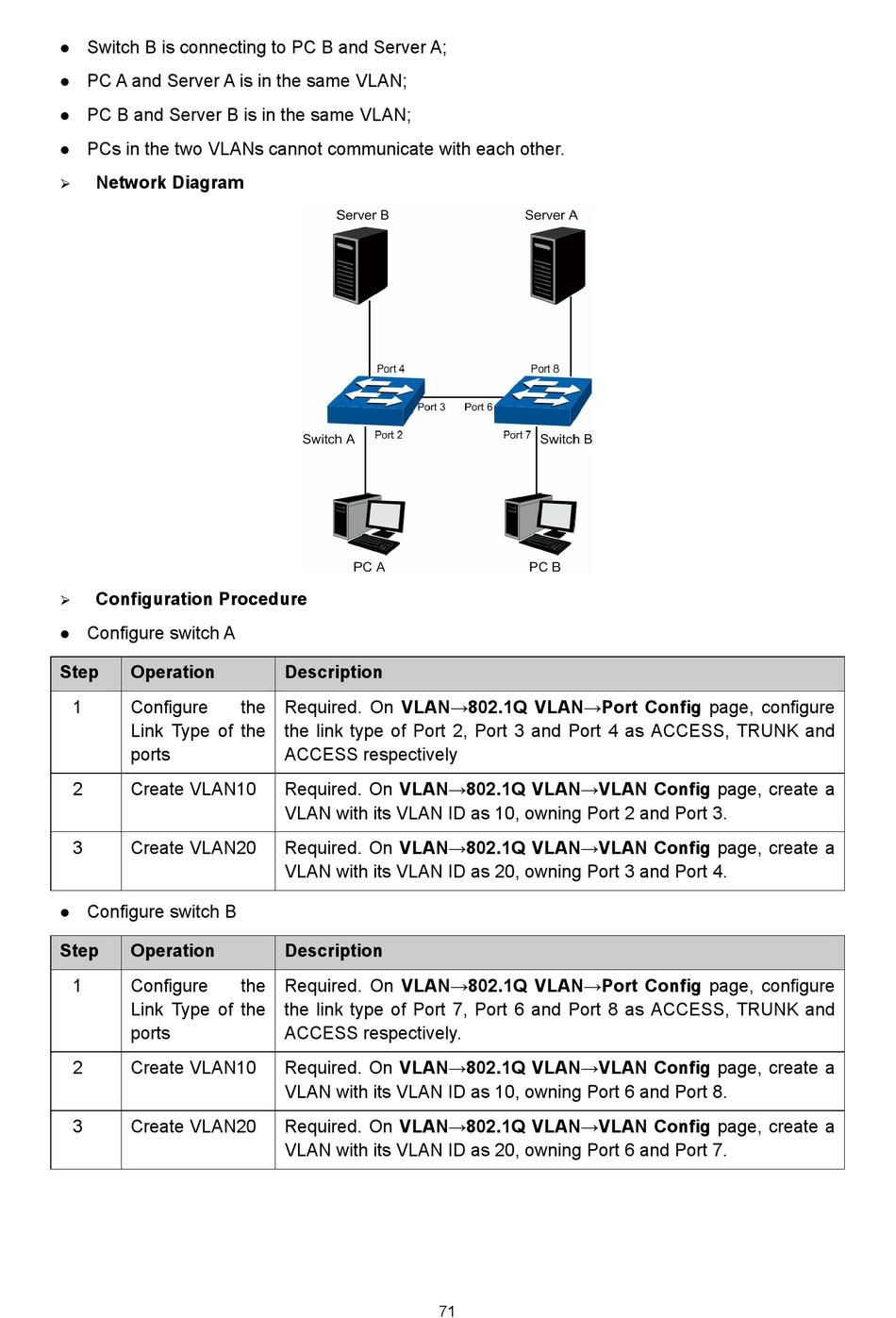

Switch B is connecting to PC B and Server A;

PC A and Server A is in the same VLAN;

PC B and Server B is in the same VLAN;

PCs in the two VLANs cannot communicate with each other.

Pgvyqtm"Fkcitco"

Eqphkiwtcvkqp"Rtqegfwtg"

Configure switch A

Uvgr" Qrgtcvkqp"
1 Configure
Link Type of the
ports
2 Create VLAN10
3 Create VLAN20
Configure switch B

Uvgr" Qrgtcvkqp"
1 Configure
Link Type of the
ports
2 Create VLAN10
3 Create VLAN20
Fguetkrvkqp"
the Required. On XNCP→:2403S" XNCP→Rqtv" Eqphki" page, configure
the link type of Port 2, Port 3 and Port 4 as ACCESS, TRUNK and
ACCESS respectively
Required. On XNCP→:2403S"XNCP→XNCP"Eqphki"page, create a
VLAN with its VLAN ID as 10, owning Port 2 and Port 3.
Required. On XNCP→:2403S"XNCP→XNCP"Eqphki"page, create a
VLAN with its VLAN ID as 20, owning Port 3 and Port 4.
Fguetkrvkqp"
the Required. On XNCP→:2403S" XNCP→Rqtv" Eqphki" page, configure
the link type of Port 7, Port 6 and Port 8 as ACCESS, TRUNK and
ACCESS respectively.
Required. On XNCP→:2403S"XNCP→XNCP"Eqphki"page, create a
VLAN with its VLAN ID as 10, owning Port 6 and Port 8.
Required. On XNCP→:2403S"XNCP→XNCP"Eqphki"page, create a
VLAN with its VLAN ID as 20, owning Port 6 and Port 7.
