Oui Config - TP-Link TL-SL5428E User Manual

Ogodgt"Uvcvg<"
NCI<"
330505" QWK"Eqphki"
The switch supports OUI creation and adds the MAC address of the special voice device to the OUI
table of the switch. The switch determines whether a received packet is a voice packet by checking its
OUI address. The switch analyzes the received packets. If the packets are recognized as voice packets,
the access port will be automatically added to the Voice VLAN.
Choose the menu SqU→Xqkeg"XNCP→QWK"Eqphki"to load the following page.
The following entries are displayed on this screen:
Etgcvg"QWK"
"
QWK<"
Ocum<"
Fguetkrvkqp<"
QWK"Vcdng"
"
Ugngev<"
QWK<"
Ocum<"
Fguetkrvkqp<"
Displays the state of the port in the current voice VLAN.
Displays the LAG number which the port belongs to.

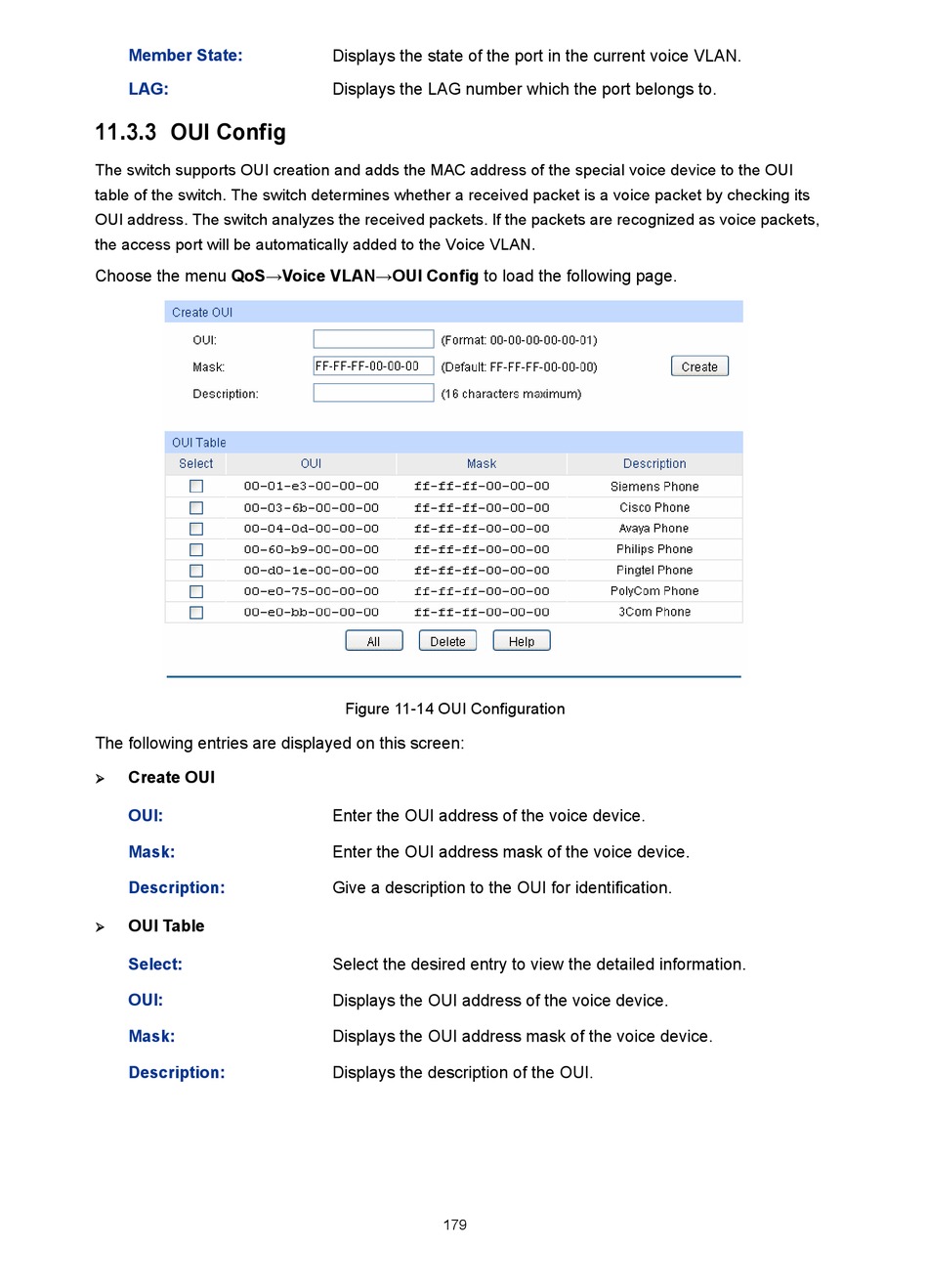

Figure 11-14 OUI Configuration
Enter the OUI address of the voice device.
Enter the OUI address mask of the voice device.
Give a description to the OUI for identification.
Select the desired entry to view the detailed information.
Displays the OUI address of the voice device.
Displays the OUI address mask of the voice device.
Displays the description of the OUI.
179
