The following entries are displayed on this screen:
VE"Rtqvgev"
"
VE"Vjtgujqnf<"
VE"Rtqvgev"E{eng<"
907" Crrnkecvkqp"Gzcorng"hqt"UVR"Hwpevkqp"
Pgvyqtm"Tgswktgogpvu"

Switch A, B, C, D and E all support MSTP function.

A is the central switch.

B and C are switches in the convergence layer. D, E and F are switches in the access layer.

There are 6 VLANs labeled as VLAN101-VLAN106 in the network.

All switches run MSTP and belong to the same MST region.

The data in VLAN101, 103 and 105 are transmitted in the STP with B as the root bridge. The

data in VLAN102, 104 and 106 are transmitted in the STP with C as the root bridge.
Pgvyqtm"Fkcitco"


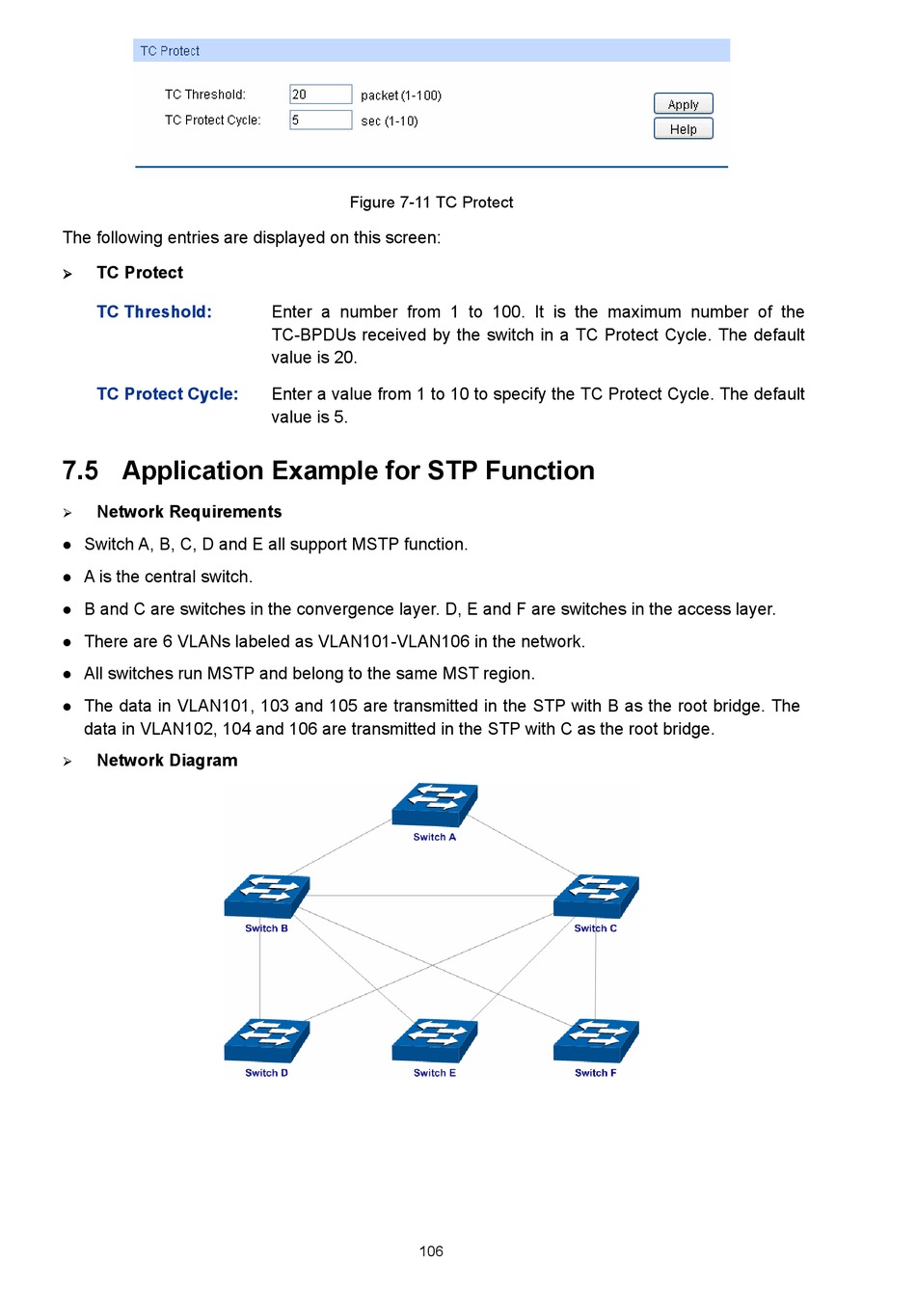

Figure 7-11 TC Protect
Enter a number from 1 to 100. It is the maximum number of the
TC-BPDUs received by the switch in a TC Protect Cycle. The default
value is 20.
Enter a value from 1 to 10 to specify the TC Protect Cycle. The default
value is 5.
106
