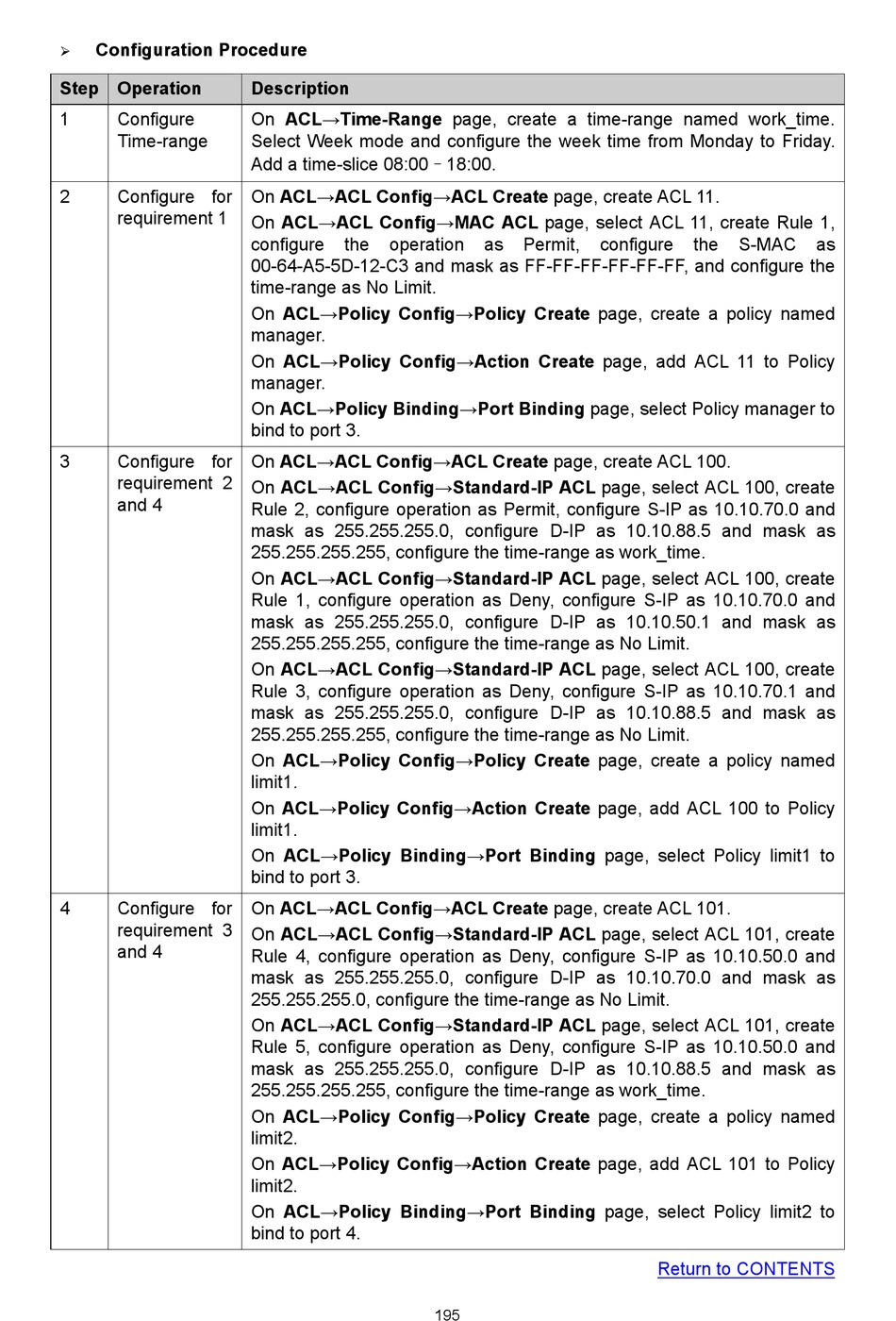

Eqphkiwtcvkqp"Rtqegfwtg"

Uvgr" Qrgtcvkqp" "
1 Configure
Time-range
2 Configure for
requirement 1
3 Configure for
requirement 2
and 4
4 Configure for
requirement 3
and 4
Fguetkrvkqp"
On CEN→Vkog/Tcpig page, create a time-range named work_time.
Select Week mode and configure the week time from Monday to Friday.
Add a time-slice 08:00–18:00.
On CEN→CEN"Eqphki→CEN"Etgcvg page, create ACL 11.
On CEN→CEN"Eqphki→OCE"CEN"page, select ACL 11, create Rule 1,
configure the operation
00-64-A5-5D-12-C3 and mask as FF-FF-FF-FF-FF-FF, and configure the
time-range as No Limit.
On CEN→Rqnke{" Eqphki→Rqnke{" Etgcvg page, create a policy named
manager.
On CEN→Rqnke{" Eqphki→Cevkqp" Etgcvg page, add ACL 11 to Policy
manager.
On CEN→Rqnke{"Dkpfkpi→Rqtv"Dkpfkpi page, select Policy manager to
bind to port 3.
On CEN→CEN"Eqphki→CEN"Etgcvg page, create ACL 100.
On CEN→CEN"Eqphki→Uvcpfctf/KR"CEN"page, select ACL 100, create
Rule 2, configure operation as Permit, configure S-IP as 10.10.70.0 and
mask as 255.255.255.0, configure D-IP as 10.10.88.5 and mask as
255.255.255.255, configure the time-range as work_time.
On CEN→CEN"Eqphki→Uvcpfctf/KR"CEN"page, select ACL 100, create
Rule 1, configure operation as Deny, configure S-IP as 10.10.70.0 and
mask as 255.255.255.0, configure D-IP as 10.10.50.1 and mask as
255.255.255.255, configure the time-range as No Limit.
On CEN→CEN"Eqphki→Uvcpfctf/KR"CEN"page, select ACL 100, create
Rule 3, configure operation as Deny, configure S-IP as 10.10.70.1 and
mask as 255.255.255.0, configure D-IP as 10.10.88.5 and mask as
255.255.255.255, configure the time-range as No Limit.
On CEN→Rqnke{" Eqphki→Rqnke{" Etgcvg" page, create a policy named
limit1.
On CEN→Rqnke{" Eqphki→Cevkqp" Etgcvg" page, add ACL 100 to Policy
limit1.
On CEN→Rqnke{" Dkpfkpi→Rqtv" Dkpfkpi" page, select Policy limit1 to
bind to port 3.
On CEN→CEN"Eqphki→CEN"Etgcvg page, create ACL 101.
On CEN→CEN"Eqphki→Uvcpfctf/KR"CEN"page, select ACL 101, create
Rule 4, configure operation as Deny, configure S-IP as 10.10.50.0 and
mask as 255.255.255.0, configure D-IP as 10.10.70.0 and mask as
255.255.255.0, configure the time-range as No Limit.
On CEN→CEN"Eqphki→Uvcpfctf/KR"CEN"page, select ACL 101, create
Rule 5, configure operation as Deny, configure S-IP as 10.10.50.0 and
mask as 255.255.255.0, configure D-IP as 10.10.88.5 and mask as
255.255.255.255, configure the time-range as work_time.
On CEN→Rqnke{" Eqphki→Rqnke{" Etgcvg" page, create a policy named
limit2.
On CEN→Rqnke{" Eqphki→Cevkqp" Etgcvg" page, add ACL 101 to Policy
limit2.
On CEN→Rqnke{" Dkpfkpi→Rqtv" Dkpfkpi" page, select Policy limit2 to
bind to port 4.
as Permit, configure
195
the S-MAC as
