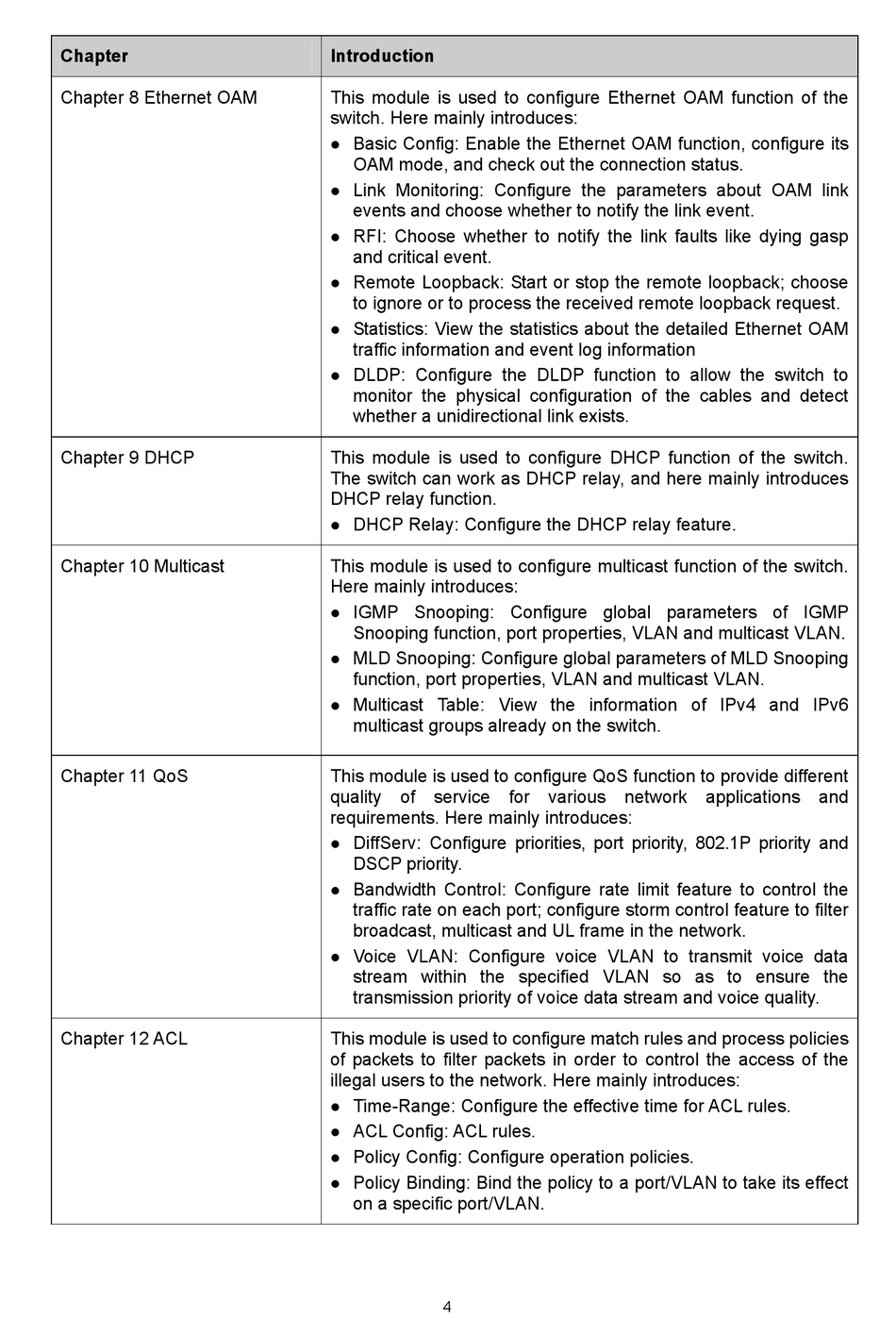

Chapter 8 Ethernet OAM
Chapter 9 DHCP
Chapter 10 Multicast
Chapter 11 QoS
Chapter 12 ACL
Kpvtqfwevkqp"
This module is used to configure Ethernet OAM function of the
switch. Here mainly introduces:
Basic Config: Enable the Ethernet OAM function, configure its

OAM mode, and check out the connection status.
Link Monitoring: Configure the parameters about OAM link

events and choose whether to notify the link event.
RFI: Choose whether to notify the link faults like dying gasp

and critical event.
Remote Loopback: Start or stop the remote loopback; choose

to ignore or to process the received remote loopback request.
Statistics: View the statistics about the detailed Ethernet OAM

traffic information and event log information
DLDP: Configure the DLDP function to allow the switch to

monitor the physical configuration of the cables and detect
whether a unidirectional link exists.
This module is used to configure DHCP function of the switch.
The switch can work as DHCP relay, and here mainly introduces
DHCP relay function.
DHCP Relay: Configure the DHCP relay feature.

This module is used to configure multicast function of the switch.
Here mainly introduces:
IGMP Snooping: Configure global parameters of IGMP

Snooping function, port properties, VLAN and multicast VLAN.
MLD Snooping: Configure global parameters of MLD Snooping

function, port properties, VLAN and multicast VLAN.
Multicast Table: View the information of IPv4 and IPv6

multicast groups already on the switch.
This module is used to configure QoS function to provide different
quality of service for various network applications and
requirements. Here mainly introduces:
DiffServ: Configure priorities, port priority, 802.1P priority and

DSCP priority.
Bandwidth Control: Configure rate limit feature to control the

traffic rate on each port; configure storm control feature to filter
broadcast, multicast and UL frame in the network.
Voice VLAN: Configure voice VLAN to transmit voice data

stream within the specified VLAN so as to ensure the
transmission priority of voice data stream and voice quality.
This module is used to configure match rules and process policies
of packets to filter packets in order to control the access of the
illegal users to the network. Here mainly introduces:
Time-Range: Configure the effective time for ACL rules.

ACL Config: ACL rules.

Policy Config: Configure operation policies.

Policy Binding: Bind the policy to a port/VLAN to take its effect

on a specific port/VLAN.
