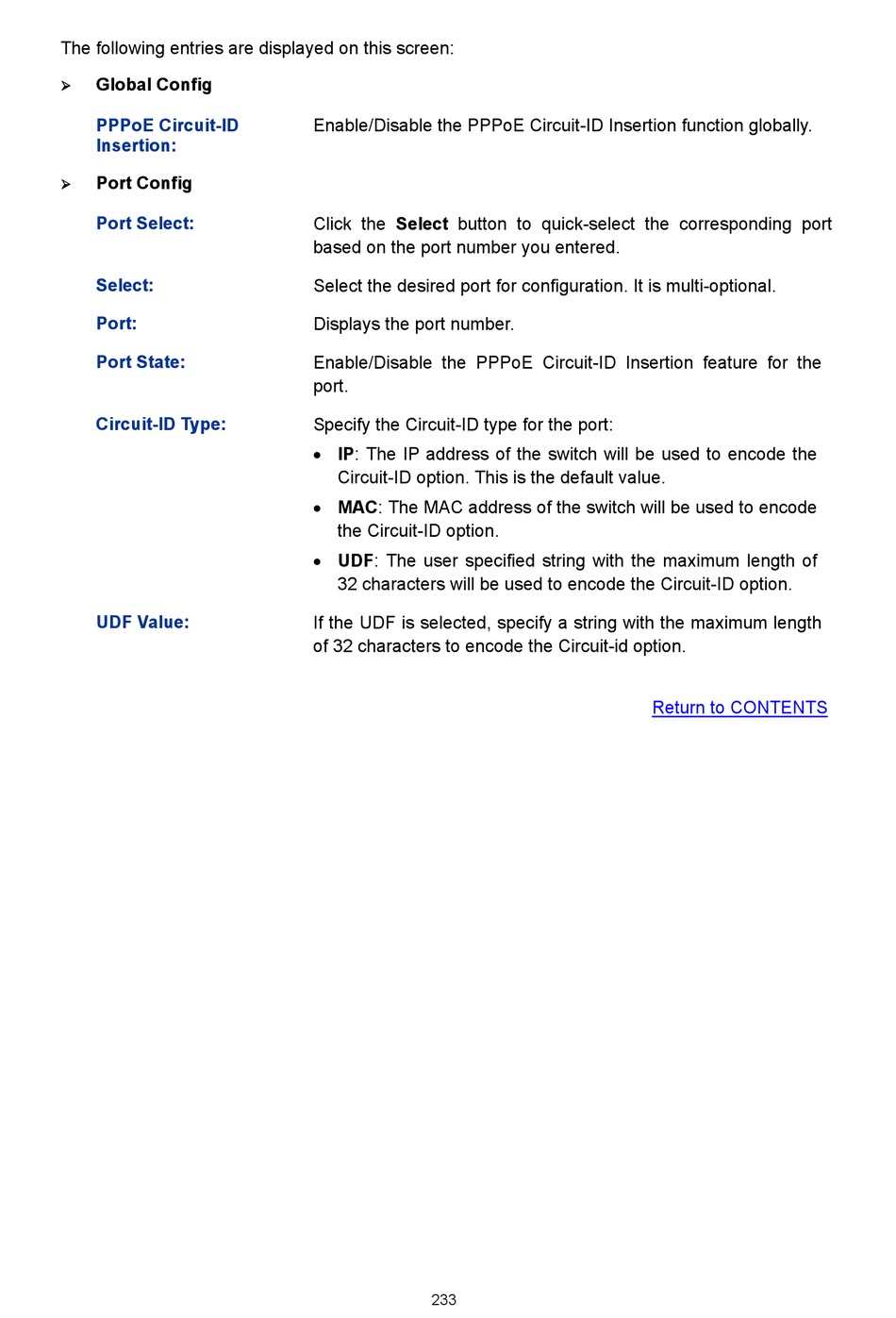

TP-Link TL-SL5428E User Manual page 245

The following entries are displayed on this screen:
Inqdcn"Eqphki"
"
RRRqG"Ektewkv/KF"
Kpugtvkqp<"
Rqtv"Eqphki"
"
Rqtv"Ugngev<"
Ugngev<"
Rqtv<"
Rqtv"Uvcvg<"
Ektewkv/KF"V{rg<"
WFH"Xcnwg<"
Enable/Disable the PPPoE Circuit-ID Insertion function globally.
Click the Ugngev" button to quick-select the corresponding port
based on the port number you entered.
Select the desired port for configuration. It is multi-optional.
Displays the port number.
Enable/Disable the PPPoE Circuit-ID Insertion feature for the
port.
Specify the Circuit-ID type for the port:
 KR: The IP address of the switch will be used to encode the
Circuit-ID option. This is the default value.
 OCE: The MAC address of the switch will be used to encode
the Circuit-ID option.
 WFH: The user specified string with the maximum length of
32 characters will be used to encode the Circuit-ID option.
If the UDF is selected, specify a string with the maximum length
of 32 characters to encode the Circuit-id option.
