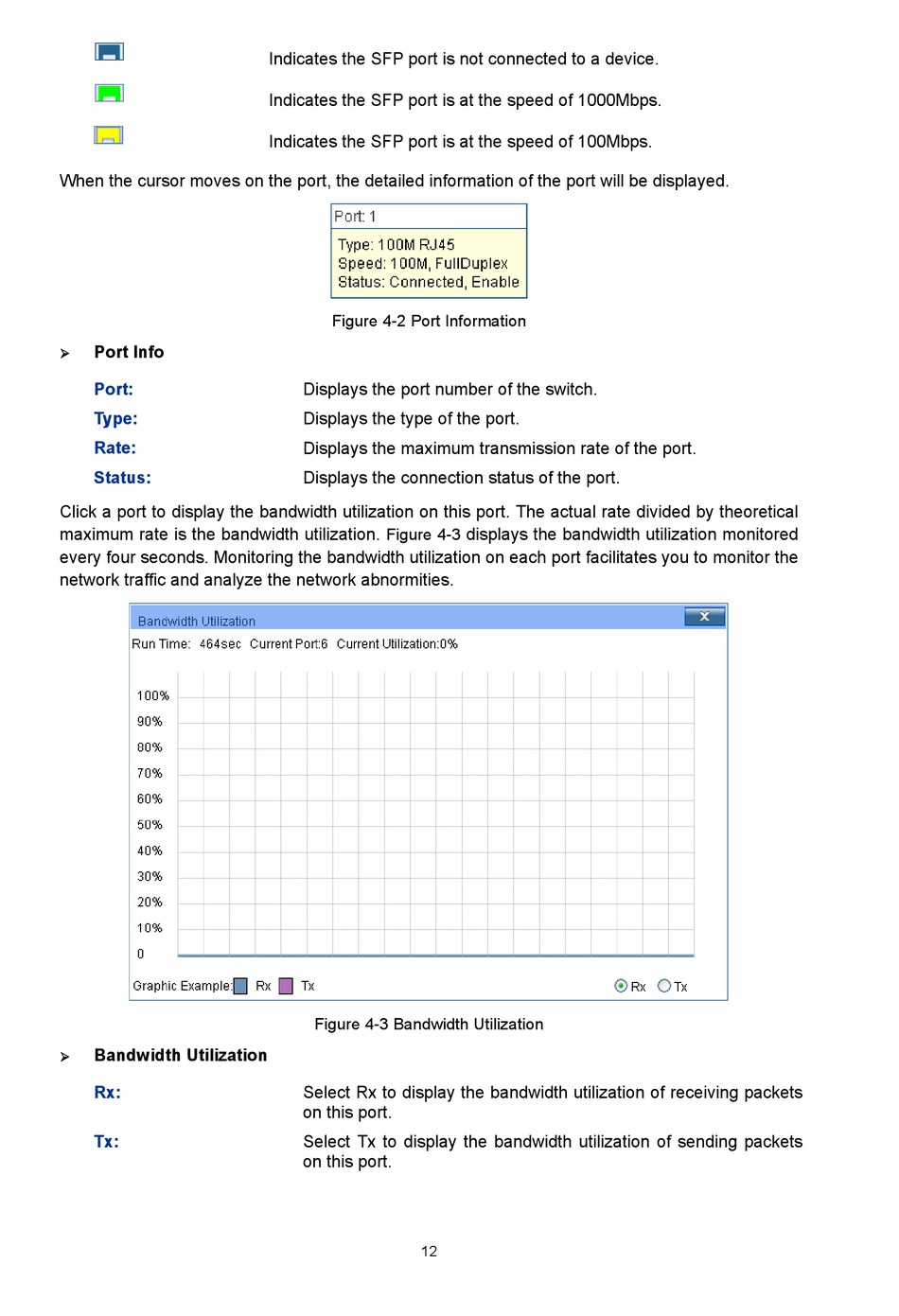

TP-Link TL-SL5428E User Manual page 24

"
"
"
When the cursor moves on the port, the detailed information of the port will be displayed.
Rqtv"Kphq"
"
Rqtv<"
V{rg<"
Tcvg<"
Uvcvwu<"
Click a port to display the bandwidth utilization on this port. The actual rate divided by theoretical
maximum rate is the bandwidth utilization. Figure 4-3 displays the bandwidth utilization monitored
every four seconds. Monitoring the bandwidth utilization on each port facilitates you to monitor the
network traffic and analyze the network abnormities.
Dcpfykfvj"Wvknk|cvkqp"
"
Tz<"
Vz<"
Indicates the SFP port is not connected to a device.
Indicates the SFP port is at the speed of 1000Mbps.
Indicates the SFP port is at the speed of 100Mbps.
Figure 4-2 Port Information
Displays the port number of the switch.
Displays the type of the port.
Displays the maximum transmission rate of the port.
Displays the connection status of the port.
Figure 4-3 Bandwidth Utilization
Select Rx to display the bandwidth utilization of receiving packets
on this port.
Select Tx to display the bandwidth utilization of sending packets
on this port.
12
