TP-Link TL-SL5428E User Manual page 280

Tqng<"
Jqru<"
Pgkijdqt"Kphq<"
Eqnngev"Vqrqnqi{<"
Click the"Fgvckn"button to view the complete information of this device and its neighbors.
Displays the role this device plays in the cluster.
Eqoocpfgt<" Indicates the device that can configure and

manage all the devices in a cluster.
Ogodgt< Indicates the device that is managed in a cluster.

Ecpfkfcvg< Indicates the device that does not belong to any

cluster though it can be added to a cluster.
Kpfkxkfwcn<"Indicates the device with cluster feature disabled.

Displays the hop count from this device to the switch.
Click the Fgvckn button to view the complete information of this
device and its neighbors.
Click the Eqnngev"Vqrqnqi{"button to collect NTDP information of
the switch so as to collect the latest network topology.

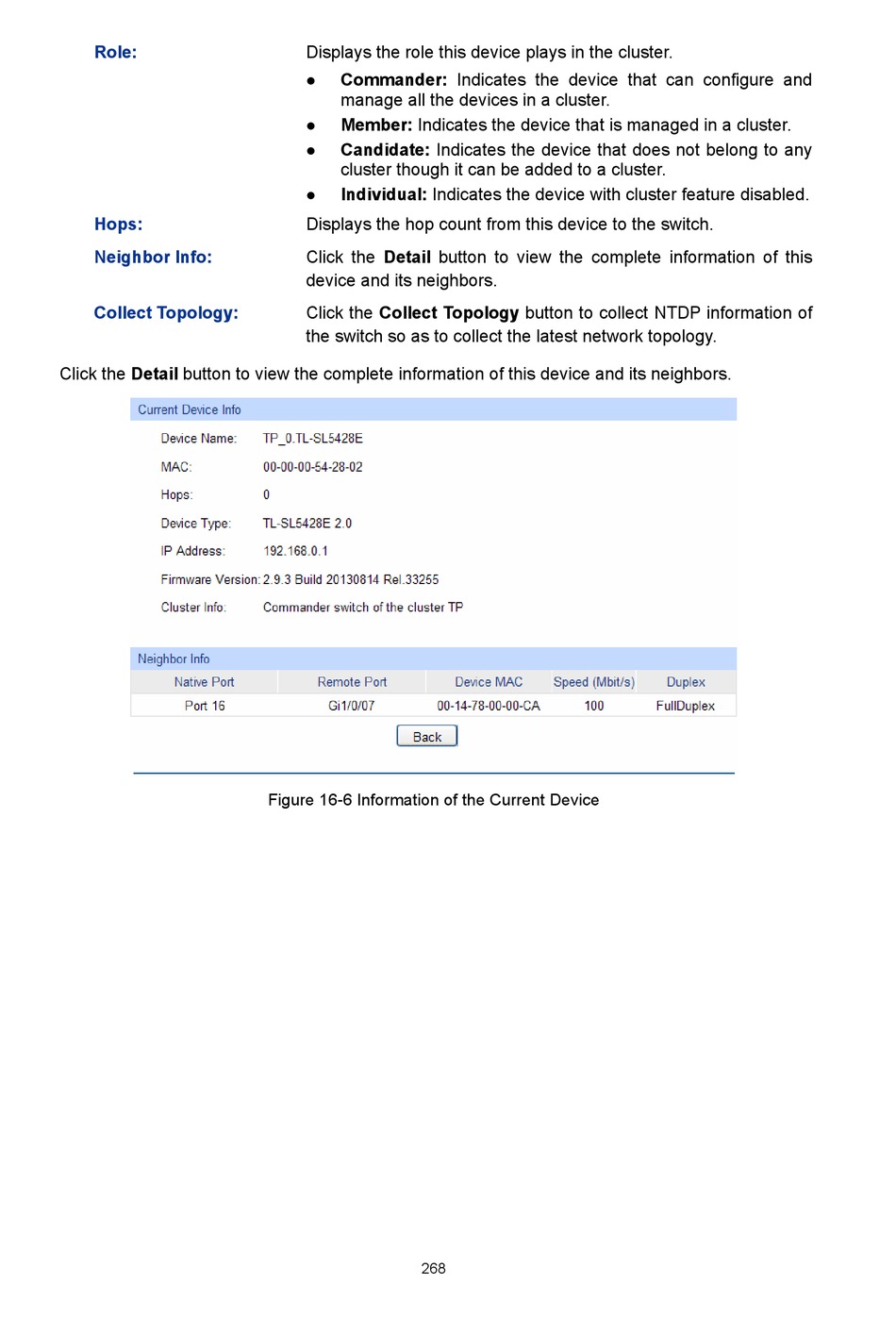

Figure 16-6 Information of the Current Device
268
