Configuration Procedure:
Uvgr" Qrgtcvkqp"
1 Select the port priority
2 Configure
relation between the CoS
priority and TC
3 Select a schedule mode
330304" FUER"Rtkqtkv{"
On this page you can configure DSCP priority. DSCP (DiffServ Code Point) is a new definition to IP
ToS field given by IEEE. This field is used to divide IP datagram into 64 priorities. When DSCP
Priority is enabled, IP datagram are mapped to different priority levels based on DSCP priority
mode; non-IP datagram with 802.1Q tag are mapped to different priority levels based on 802.1P
priority mode if 8021.1P Priority mode is enabled; the untagged non-IP datagram are mapped based
on port priority mode.
Choose the menu SqU→FkhhUgtx→FUER"Rtkqtkv{"to load the following page."
The following entries are displayed on this screen:
FUER"Rtkqtkv{"Eqphki"
"
FUER"Rtkqtkv{<"
Fguetkrvkqp"
Required. On SqU→FkhhUgtx→Rqtv" Rtkqtkv{" page,
configure the port priority.
the mapping Required. On SqU→FkhhUgtx→:2403R1EqU"ocrrkpi"
page, configure the mapping relation between the CoS
and TC.
Required. On SqU→FkhhUgtx→Uejgfwng"Oqfg"page,
select a schedule mode.

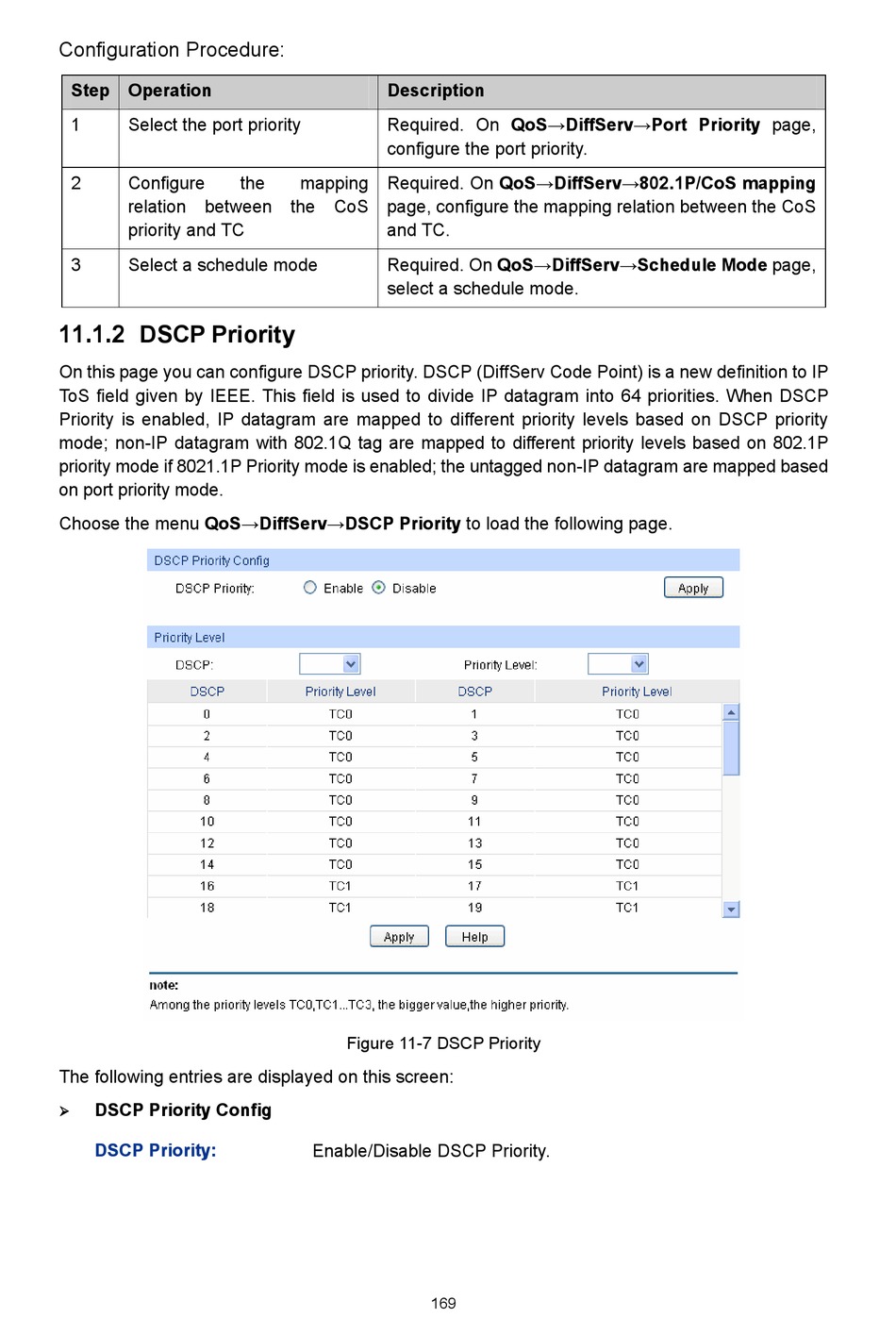

Figure 11-7 DSCP Priority
Enable/Disable DSCP Priority.
169
