Uvcvwu<"
Urggf"cpf"Fwrngz<"
Hnqy"Eqpvtqn<"
NCI<"
Pqvg<"
1. The switch cannot be managed through the disabled port. Please enable the port which is
used to manage the switch.
2. The parameters of the port members in a LAG should be set as the same.
70304"Rqtv"Okttqt"
Port Mirror, the packets obtaining technology, functions to forward copies of packets from
one/multiple ports (mirrored port) to a specific port (mirroring port). Usually, the mirroring port is
connected to a data diagnose device, which is used to analyze the mirrored packets for monitoring
and troubleshooting the network.
Choose the menu Uykvejkpi→Rqtv→Rqtv"Okttqt to load the following page."
Allows you to Enable/Disable the port. When Enable is
selected, the port can forward the packets normally.
Select the Speed and Duplex mode for the port. The device
connected to the switch should be in the same Speed and
Duplex mode with the switch. When "Auto" is selected, the
Speed and Duplex
auto-negotiation.
Allows you to Enable/Disable the Flow Control feature. When
Flow Control is enabled, the switch can synchronize the speed
with its peer to avoid the packet loss caused by congestion.
Displays the LAG number which the port belongs to.

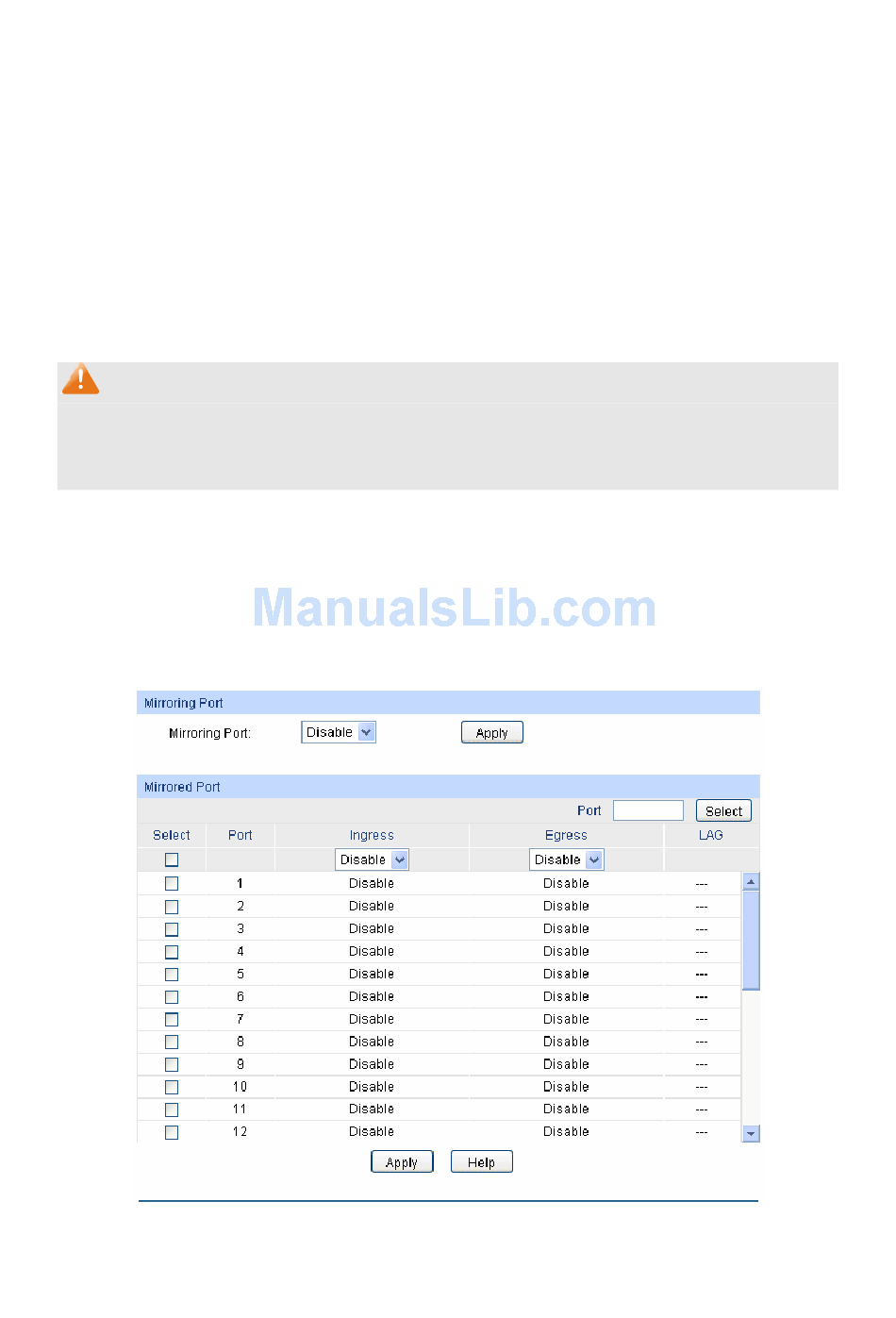

Figure 5-2 Port Mirror Config
40
mode will be determined by
