Chapter 4 System - TP-Link TL-SL5428E User Manual

The System module is mainly for system configuration of the switch, including four submenus:"
U{uvgo"Kphq, Wugt"Ocpcigogpv."U{uvgo"Vqqnu and Ceeguu"Ugewtkv{.
603" U{uvgo"Kphq"
The System Info, mainly for basic properties configuration, can be implemented on U{uvgo"
Uwooct{, Fgxkeg"Fguetkrvkqp, U{uvgo"Vkog, Fc{nkijv"Ucxkpi"Vkog, U{uvgo"KR and"U{uvgo"
KRx8 pages.
60303"U{uvgo"Uwooct{"
On this page you can view the port connection status and the system information.
The port status diagram shows the working status of 24 10/100Mbps RJ45 ports, 4
10/100/1000Mbps RJ45 ports and 2 SFP ports of the switch. Ports 1 to 24 are 10/100Mbps ports.
Ports 25-26 and 27T-28T are 10/100/1000Mbps ports, among which ports 27T and 28T are
Combo ports with SFP ports labeled 27F and 28F.
Choose the menu"U{uvgo→U{uvgo"Kphq→U{uvgo"Uwooct{"to load the following page.
Rqtv"Uvcvwu"
"
"
"
"
"
"
"
Ejcrvgt"6" U{uvgo"

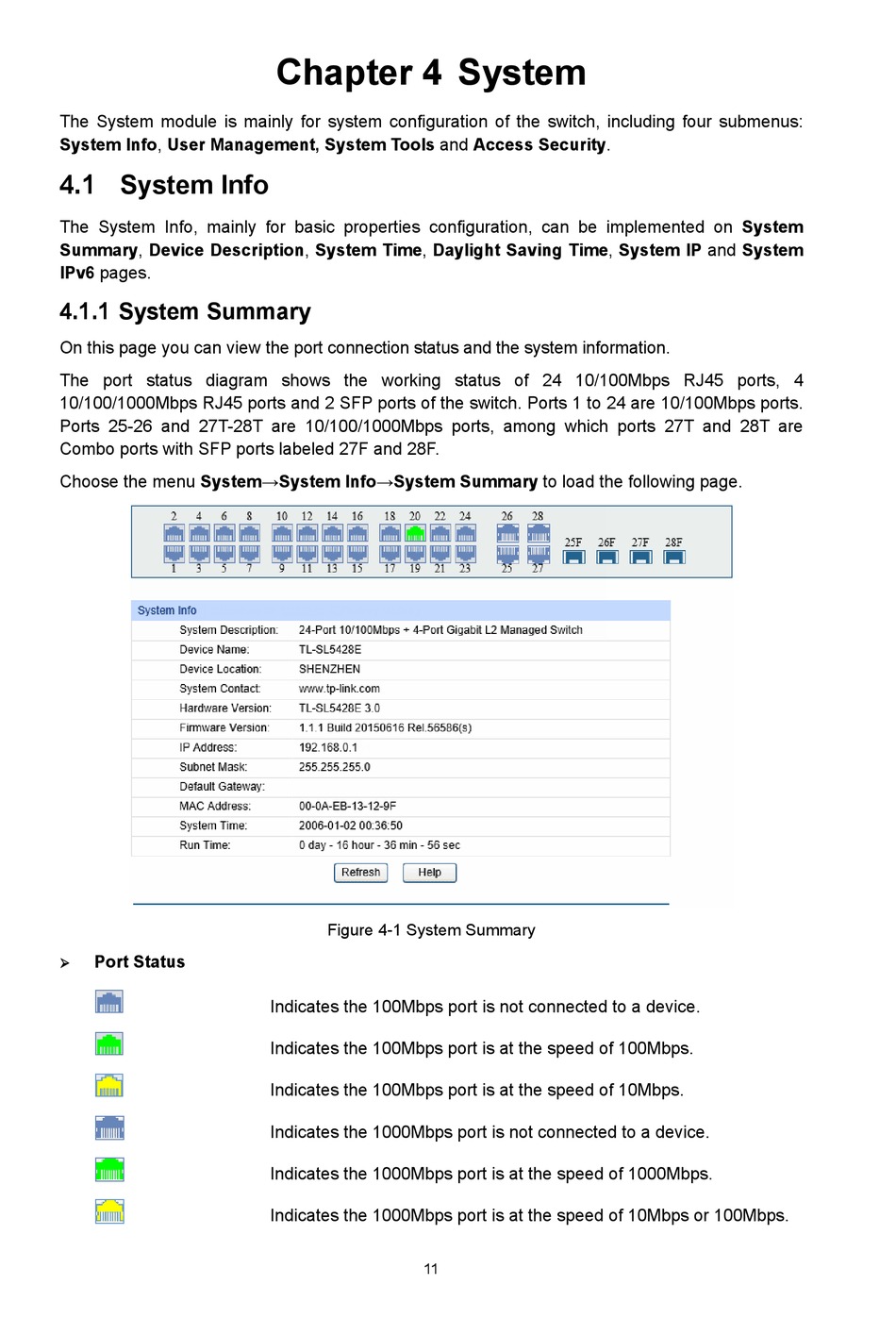

Figure 4-1 System Summary
Indicates the 100Mbps port is not connected to a device.
Indicates the 100Mbps port is at the speed of 100Mbps.
Indicates the 100Mbps port is at the speed of 10Mbps.
Indicates the 1000Mbps port is not connected to a device.
Indicates the 1000Mbps port is at the speed of 1000Mbps.
Indicates the 1000Mbps port is at the speed of 10Mbps or 100Mbps.
11
"
