Thanks for choosing the TL-SL5428E 24-Port 10/100Mbps + 4-Port Gigabit JetStream L2
Managed Switch!
403" Qxgtxkgy"qh"vjg"Uykvej"
Designed for workgroups and departments, TL-SL5428E from TP-LINK provides wire-speed
performance and full set of layer 2 management features. It provides a variety of service features
and multiple powerful functions with high security.
The EIA-standardized framework and smart configuration capacity can provide flexible solutions for
a variable scale of networks. ACL, 802.1x, IP Source Guard and Dynamic ARP Inspection provide
robust security strategy. QoS and IGMP snooping/filtering optimize voice and video application.
Link aggregation (LACP) increases aggregated bandwidth, optimizing the transport of business
critical data. SNMP, RMON, WEB/CLI/Telnet Log-in bring abundant management policies.
TL-SL5428E switch integrates multiple functions with excellent performance, and is friendly to
manage, which can fully meet the need of the users demanding higher networking performance.
404" Crrgctcpeg"Fguetkrvkqp"
40403"Htqpv"Rcpgn"
The following parts are located on the front panel of the switch:
 321322Odru"TL67"Rqtvu< Designed to connect to a device with the bandwidth of 10Mbps or
100Mbps. Each has a corresponding 10/100M LED."
 32132213222Odru"TL67"Rqtvu< Designed to connect to a device with the bandwidth of 10Mbps,
100Mbps or 1000Mbps. Each has a corresponding 1000M LED.
 UHR"Rqtvu< Designed to install the SFP module. Port 25F–28F share the same LED with Port
25–28 respectively.
 Eqpuqng"Rqtv<"Designed to connect with the serial port of a computer or terminal for monitoring
and configuring the switch.
 NGFu"
Pcog"
Power
System
Ejcrvgt"4" Kpvtqfwevkqp"

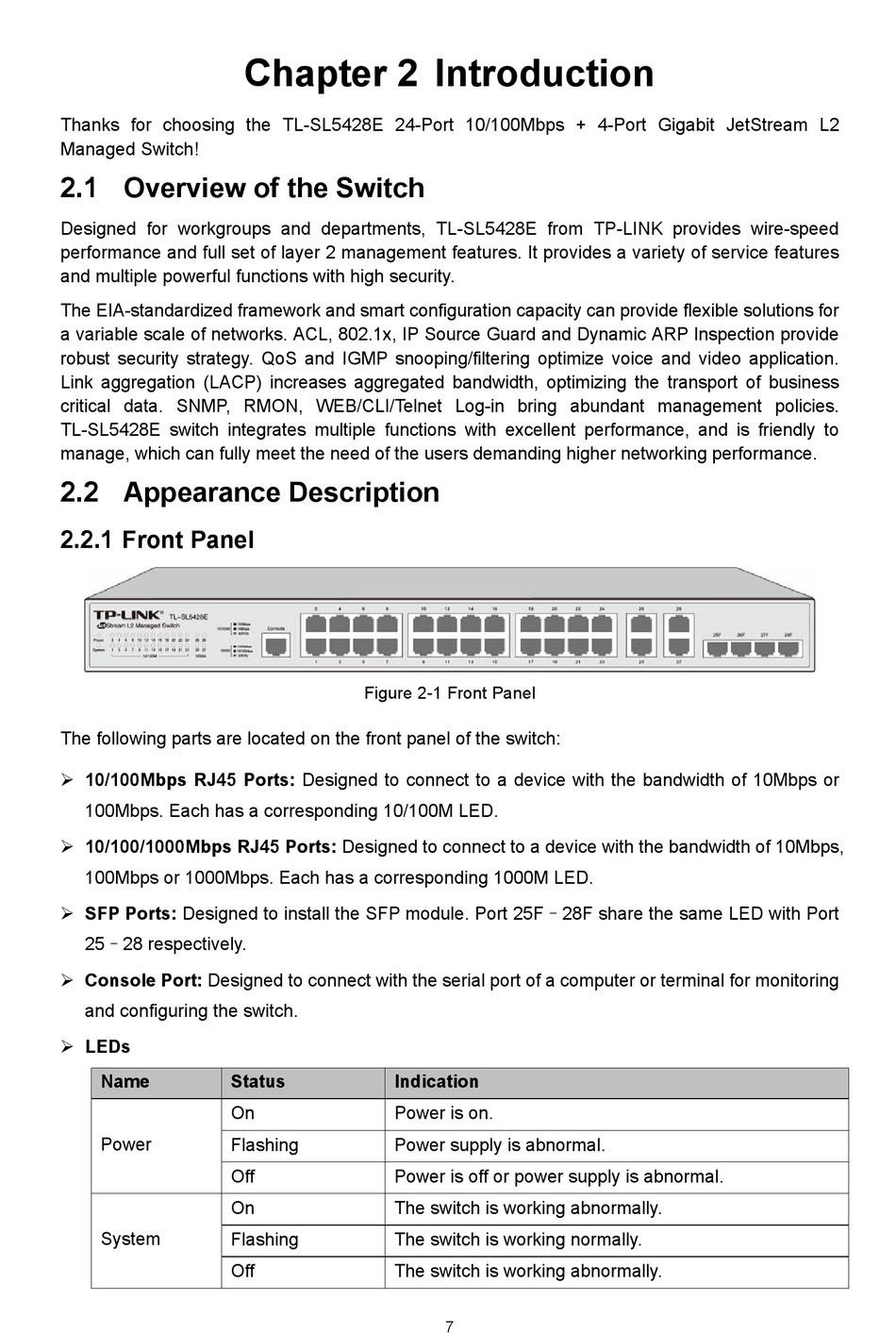

Figure 2-1 Front Panel
Uvcvwu" Kpfkecvkqp"
On Power is on.
Flashing Power supply is abnormal.
Off Power is off or power supply is abnormal.
On The switch is working abnormally.
Flashing The switch is working normally.
Off The switch is working abnormally.
7
