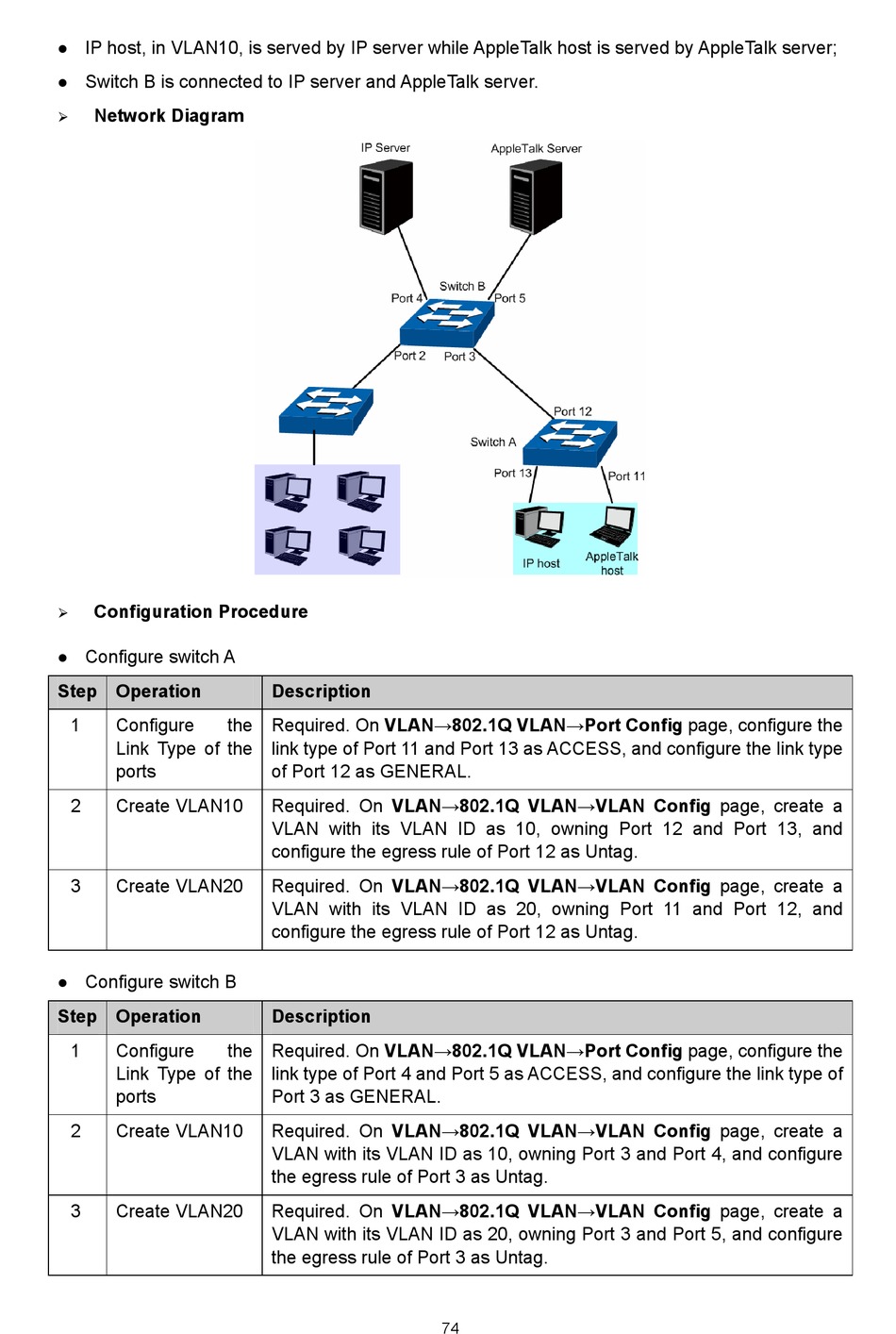

IP host, in VLAN10, is served by IP server while AppleTalk host is served by AppleTalk server;

Switch B is connected to IP server and AppleTalk server.

Pgvyqtm"Fkcitco"

Eqphkiwtcvkqp"Rtqegfwtg"

Configure switch A

Uvgr" Qrgtcvkqp"
1 Configure the
Link Type of the
ports
2 Create VLAN10
3 Create VLAN20
Configure switch B

Uvgr" Qrgtcvkqp"
1 Configure the
Link Type of the
ports
2 Create VLAN10
3 Create VLAN20
Fguetkrvkqp"
Required. On XNCP→:2403S"XNCP→Rqtv"Eqphki"page, configure the
link type of Port 11 and Port 13 as ACCESS, and configure the link type
of Port 12 as GENERAL.
Required. On XNCP→:2403S" XNCP→XNCP" Eqphki" page, create a
VLAN with its VLAN ID as 10, owning Port 12 and Port 13, and
configure the egress rule of Port 12 as Untag.
Required. On XNCP→:2403S" XNCP→XNCP" Eqphki" page, create a
VLAN with its VLAN ID as 20, owning Port 11 and Port 12, and
configure the egress rule of Port 12 as Untag.
Fguetkrvkqp"
Required. On XNCP→:2403S"XNCP→Rqtv"Eqphki"page, configure the
link type of Port 4 and Port 5 as ACCESS, and configure the link type of
Port 3 as GENERAL.
Required. On XNCP→:2403S" XNCP→XNCP" Eqphki" page, create a
VLAN with its VLAN ID as 10, owning Port 3 and Port 4, and configure
the egress rule of Port 3 as Untag.
Required. On XNCP→:2403S" XNCP→XNCP" Eqphki" page, create a
VLAN with its VLAN ID as 20, owning Port 3 and Port 5, and configure
the egress rule of Port 3 as Untag.
74
