350907" Cwvjgpvkecvkqp"Ugtxgt"Itqwr"Eqphki"
On this page users can group authentication servers running the same secure protocol for
authentication. The switch has two built-in authentication server group, one for RADIUS and the
other for TACACS+. These two server groups cannot be edited or deleted. The server entries in
one group are tried in the order they are added.
Choose the menu Pgvyqtm"Ugewtkv{→CCC→Ugtxgt"Itqwr to load the following page.
Eqphkiwtcvkqp"Rtqegfwtg<"
"
1) Configure the Server Group name and Server Type to create a server group. (Figure 13-5)
2) Click gfkv in the Server Group List to configure the corresponding server group. (Figure 13-5)
3) Select Server IP you have previously created and click Cff to add the server to the server
group. (Figure 13-6)
View and delete the configured server groups in the Server Group List.
View and delete the configured servers in the Server List.
Gpvt{"Fguetkrvkqp<"
"
Ugtxgt"Itqwr<"
Ugtxgt"V{rg<"
Ugtxgt"KR"
Pqvg<"
1.
The two built-in server groups radius and tacacs cannot be deleted or edited.
2.
Up to 16 servers can be added to one server group.

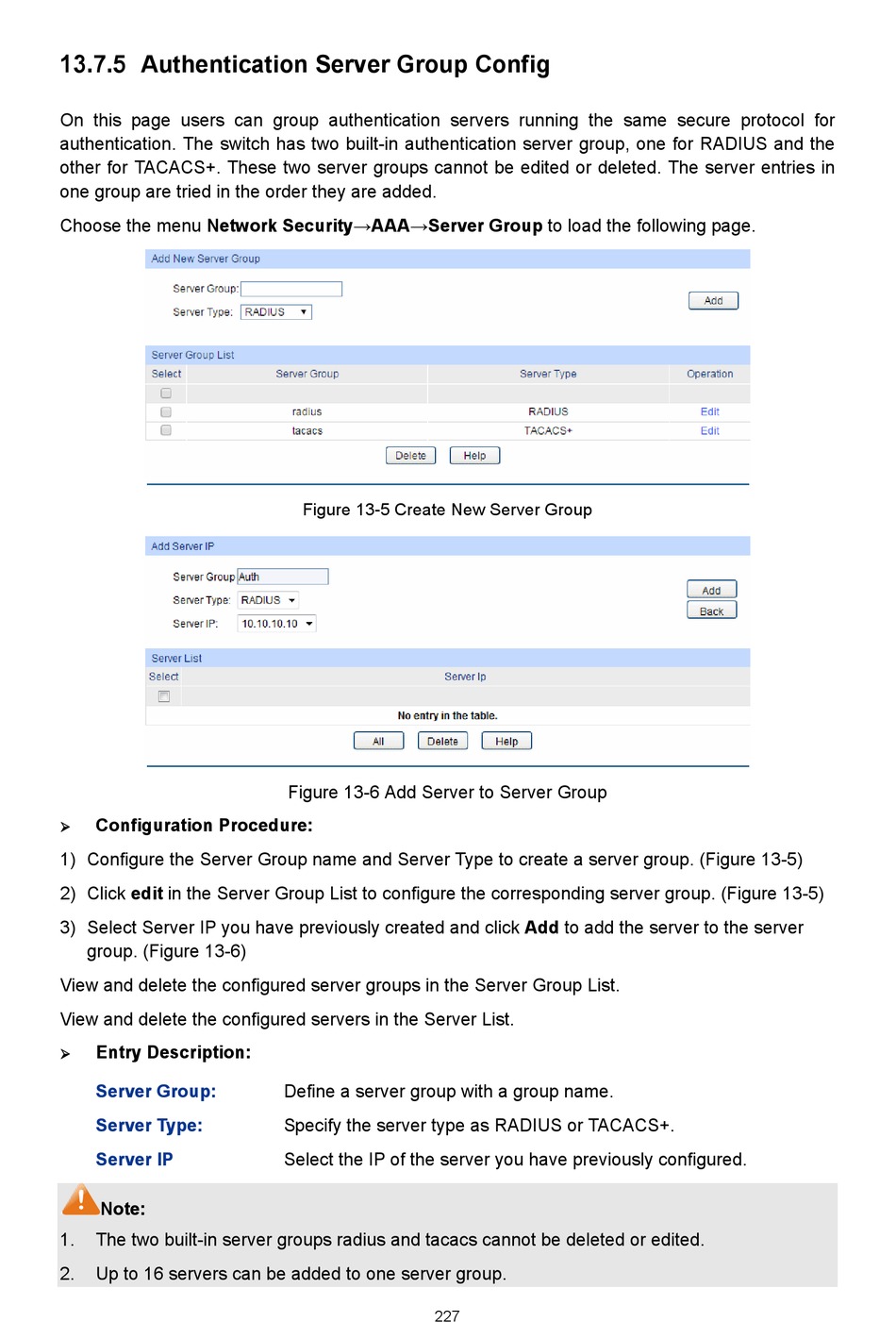

Figure 13-5 Create New Server Group
Figure 13-6 Add Server to Server Group
Define a server group with a group name.
Specify the server type as RADIUS or TACACS+.
Select the IP of the server you have previously configured.
227
