The following entries are displayed on this screen:
Inqdcn"Eqphki"
"
KIOR"Upqqrkpi<"
Wpmpqyp"Ownvkecuv<"
KIOR"Upqqrkpi"Uvcvwu"
"
Fguetkrvkqp<"
Ogodgt<"
320304" XNCP"Eqphki"
Multicast groups established by IGMP Snooping are based on VLANs. On this page you can
configure different IGMP parameters for different VLANs.
Choose the menu Ownvkecuv→KIOR"Upqqrkpi→XNCP"Eqphki to load the following page.
The following entries are displayed on this screen:
XNCP"Eqphki"
"
XNCP"KF<"
Tqwvgt"Rqtv"Vkog<"
Ogodgt"Rqtv"Vkog<"
Ngcxg"Vkog<"
Hqtdkffgp"Tqwvgt"
Rqtvu："
Enable/Disable IGMP Snooping function globally on the switch.
Select the operation for the switch to process unknown multicast,
Forward or Discard.
Displays IGMP Snooping status.
Displays the member of the corresponding status.

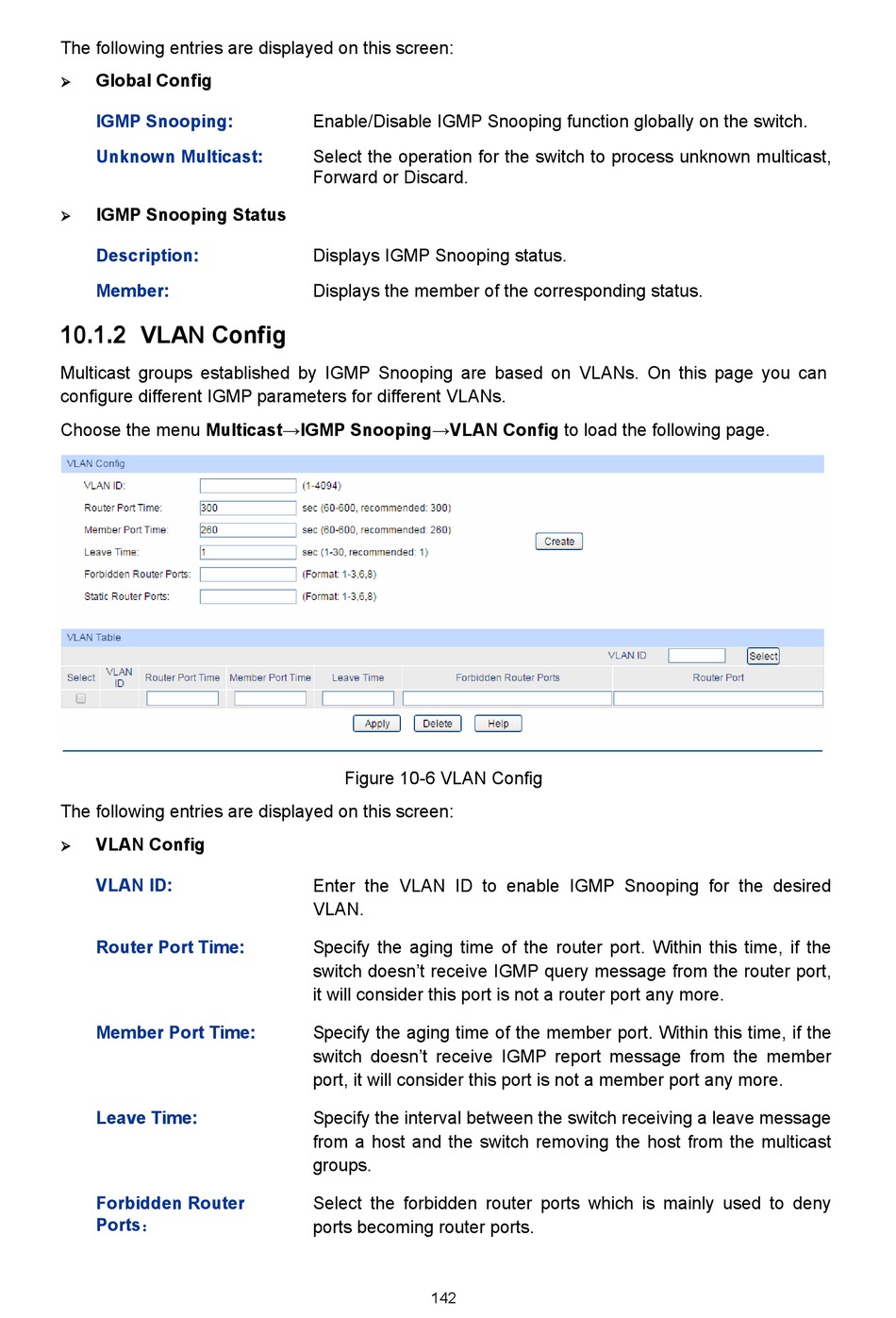

Figure 10-6 VLAN Config
Enter the VLAN ID to enable IGMP Snooping for the desired
VLAN.
Specify the aging time of the router port. Within this time, if the
switch doesn't receive IGMP query message from the router port,
it will consider this port is not a router port any more.
Specify the aging time of the member port. Within this time, if the
switch doesn't receive IGMP report message from the member
port, it will consider this port is not a member port any more.
Specify the interval between the switch receiving a leave message
from a host and the switch removing the host from the multicast
groups.
Select the forbidden router ports which is mainly used to deny
ports becoming router ports.
142
