Accessing the Main Menu

The opening screen of the SuperBuild utility is the Main Menu.

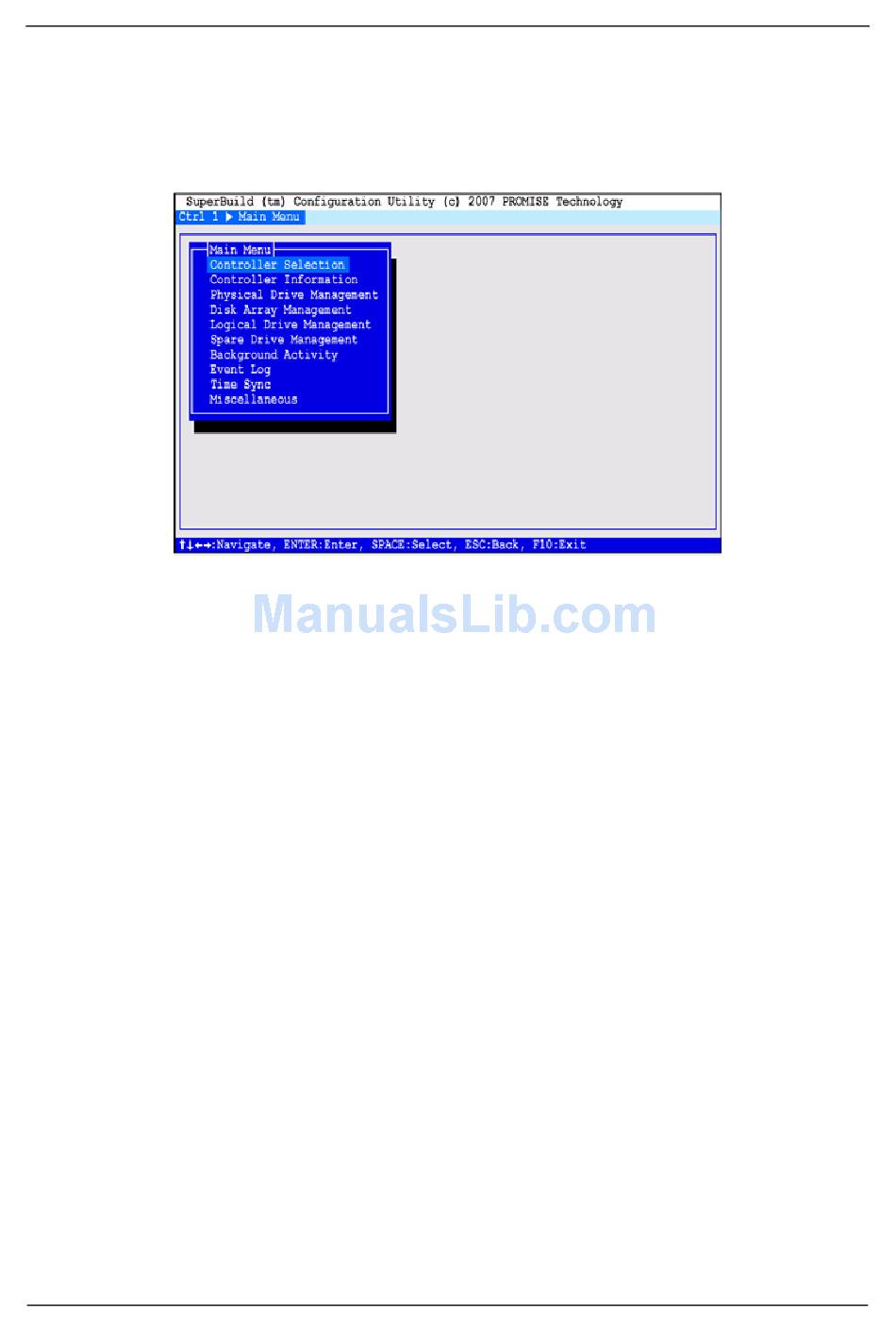

Figure 4. SuperBuild Main Menu
The Main Menu (above) has nine options:
• Controller Selection – Select which of two SuperTrak controllers you want
to access, if you have two SuperTraks installed in the Host PC
• Controller Information – Memory type and size, Firmware and BIOS
version numbers, and address information that may be helpful for diagnostic
purposes
• Physical Drive Management – A list of physical drives attached to the
SuperTrak controller, their ID (channel) numbers, model numbers, capacity,
and status
• Disk Array Management – A list of disk arrays attached to the SuperTrak
controller, the assigned physical drives, logical drives, capacity, and status
• Logical Drive Management – A list of logical drives plus create and delete
logical drive functions
• Spare Drive Management– A list of hot spare drives, their characteristics
and status
• Background Activity – A list of logical drives, any current background
activity, logical drive status and percentage of activity completed.
Background activities include: Rebuild, Initialize, Synchronize, Migrate, and
Pause/Resume
• Event Log – A list of events stored in RAM (since startup) or non-volatile
RAM (since the log was cleared) for diagnosis
• Time Sync – Enables you to set the time zone and synchronize system time
and date with the embedded site
