Installing the SuperTrak Card

The SuperTrak EX Controller card fits into any available PCI-Express x8 slot. You
can also plug the SuperTrak card into a PCI-Express x16 slot.
1. Remove the cover of your system.
2. Remove the inside slot cover of an available PCI-Express slot on the
motherboard.
3. Install the SuperTrak card into the open PCI-Express slot.
4. Fasten the SuperTrak card bracket to the system case.
5. Attach one end of a SAS multi-lane cable to a SAS port on the SuperTrak
card.
External SAS multi-lane cables are user-supplied. The external SAS ports
have SFF-8088 connectors.

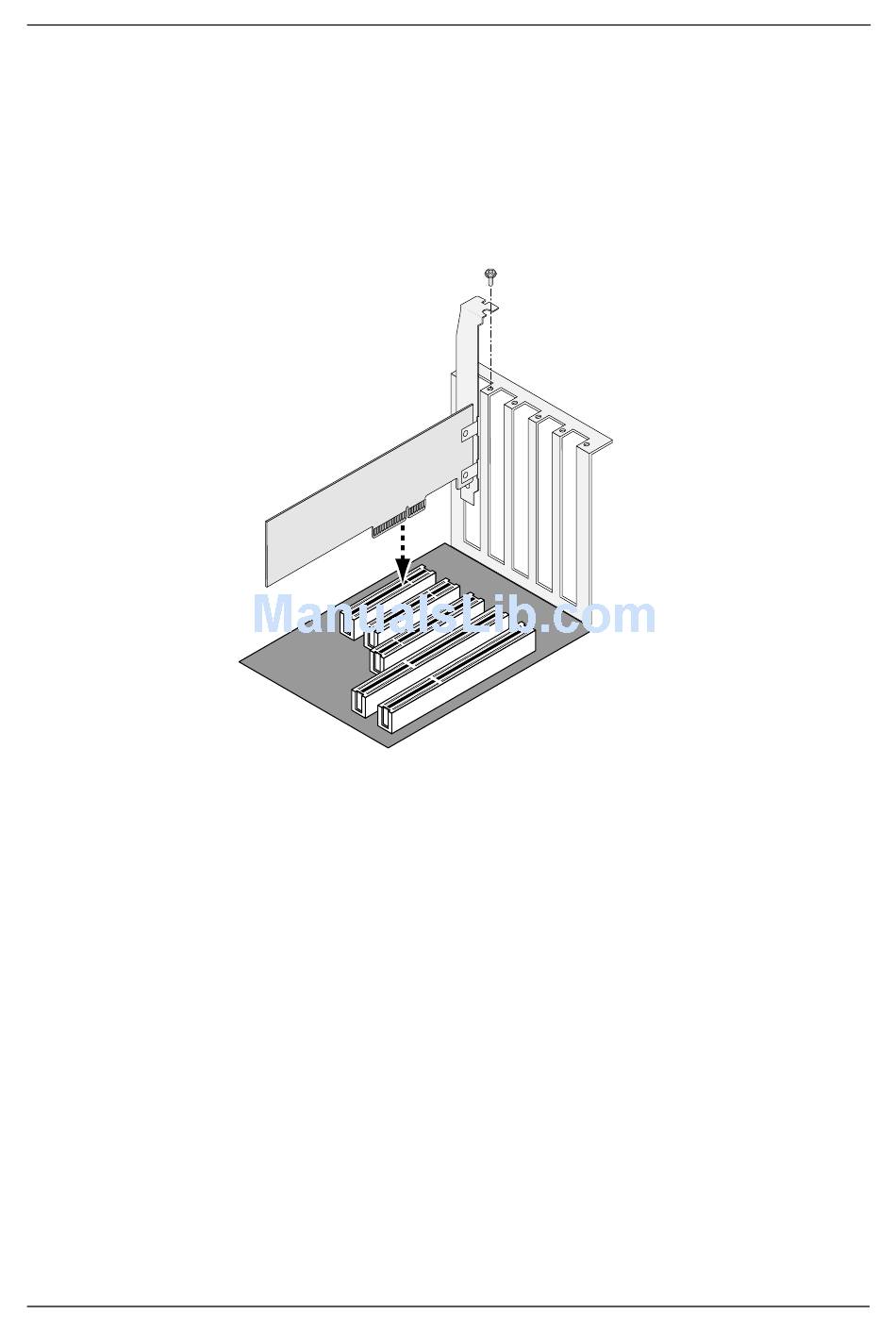

See Figures 1 through 5.
